Consult-II Diagnostic Test Mode Function

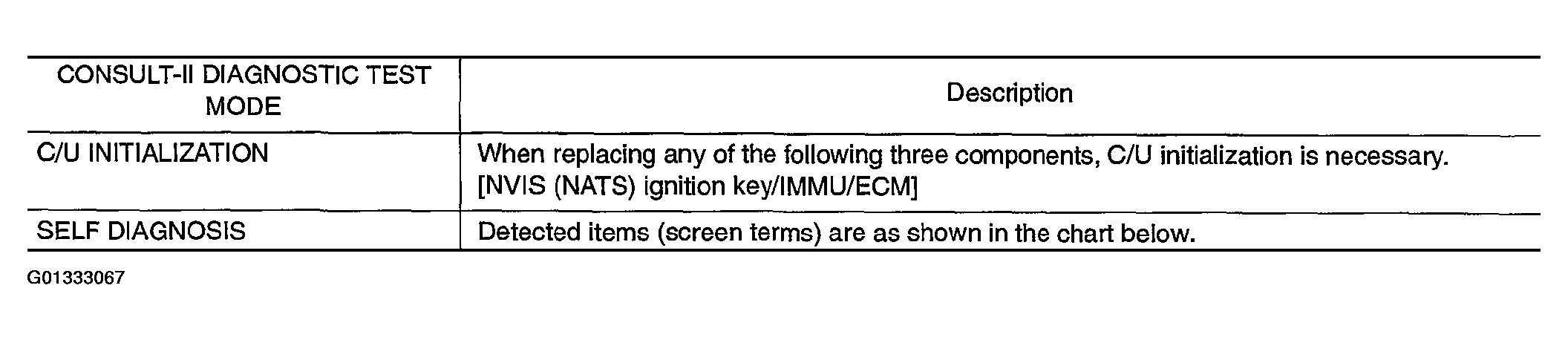

Fig 1: CONSULT-II Diagnostic Test Mode Function Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

• When any initialization is performed, all IDs previously registered will be erased and all NVIS (NATS) ignition keys must be registered again.
• The engine cannot be started with an unregistered key. In this case, the system may show "DIFFERENCE OF KEY" or "LOCK MODE" as a self-diagnostic result on the CONSULT-II screen.
• In rare cases, "CHAIN OF ECM-IMMU" might be stored as a self-diagnostic result during key registration procedure, even if the system is not malfunctioning.
