Self-diagnostic results: "ID DISCORD, IMM-ECM" displayed on CONSULT-II screen

CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS "ID DISCORD, IMM-ECM" displayed on CONSULT-II screen.

Fig 1: Confirming Self-Diagnostic Results (Diagnostic Procedure 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: "ID DISCORD IMM-ECM":
Registered ID of NVIS (NATS) IMMU is in discord with that of ECM.
Is CONSULT-II screen displayed as above?

Yes : GO TO 2.

No : GO TO "SYMPTOM MATRIX CHART 1 (SELF-DIAGNOSIS RELATED ITEM) ".
PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II. Re-register all NVIS (NATS) ignition key IDs.

For initialization, refer to "CONSULT-II OPERATION MANUAL IVIS/NVIS".

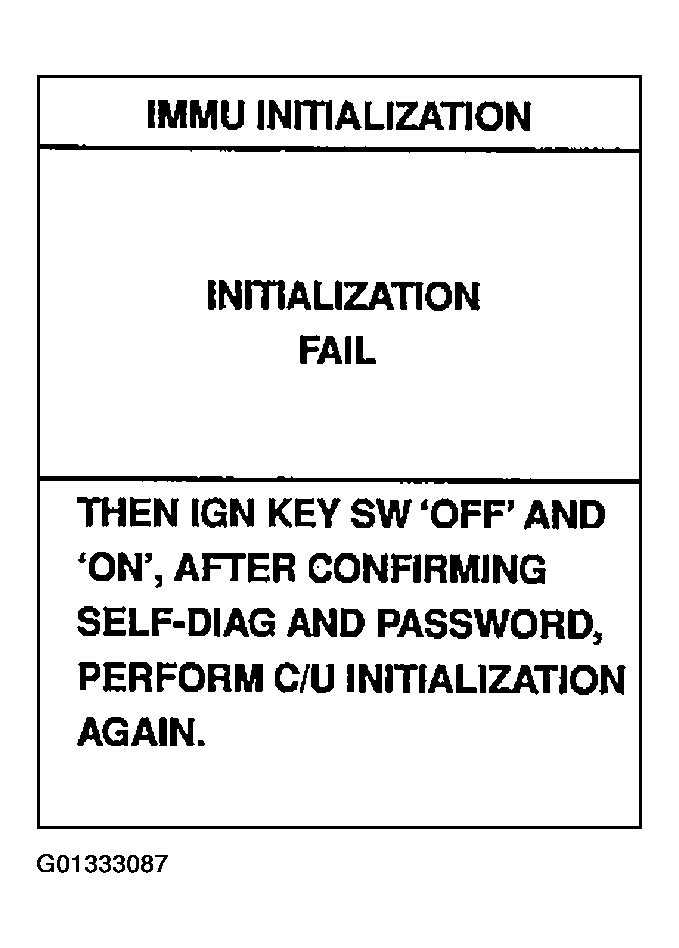

Fig 2: Performing Initialization With CONSULT-II (Diagnostic Procedure 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If the initialization is not completed or fails, CONSULT-II shows above message on the screen.
Can the system be initialized?

Yes:
- Start engine. (END)
- (System initialization had not been completed. Ref. part No. F ).
No:
- ECM is malfunctioning.
- Replace. ECM. Ref. part No. F
- Perform initialization with CONSULT-II.
- For initialization, refer to "CONSULT-II OPERATION MANUAL IVIS/NVIS".
