Component Parts and Harness Connector Location

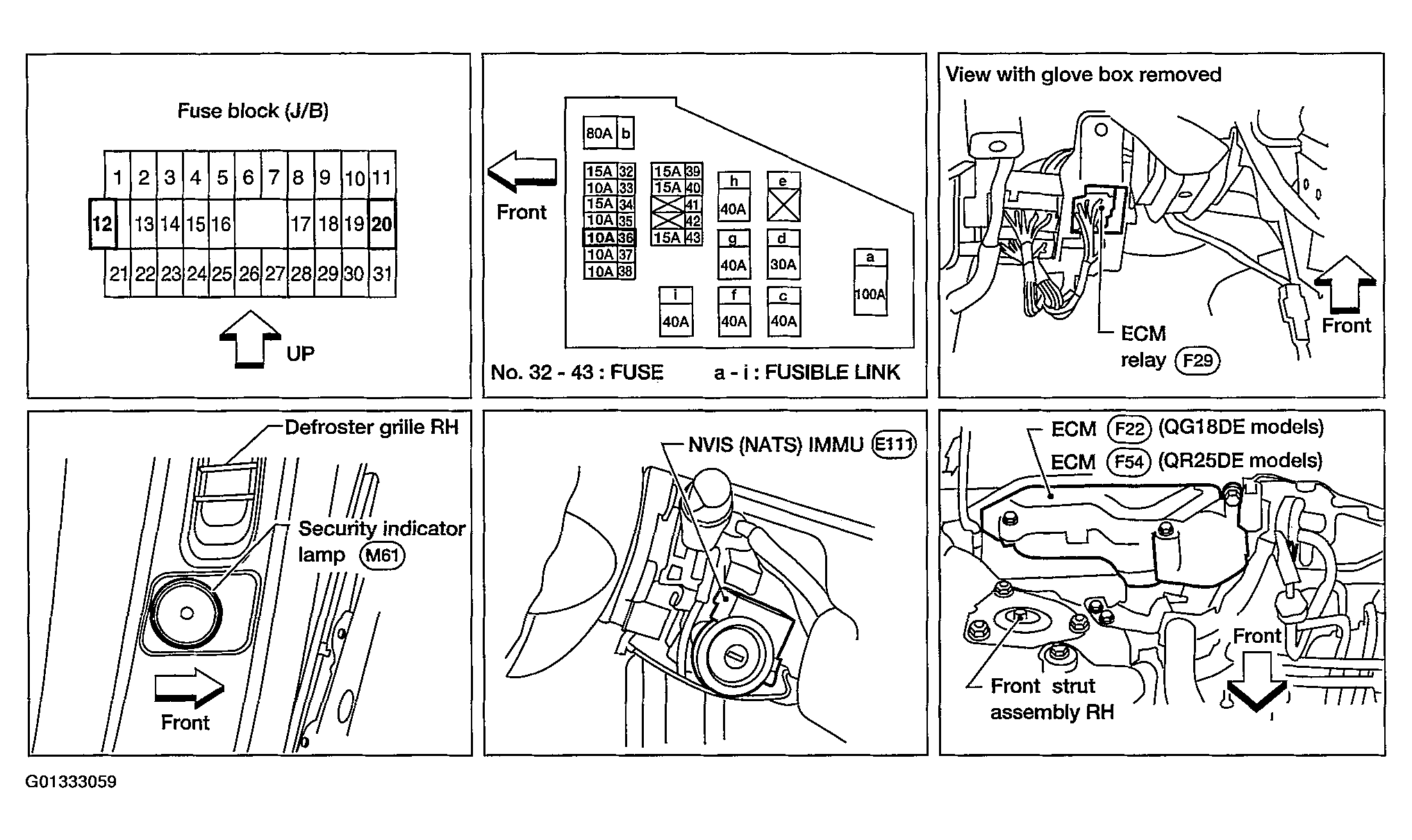

Fig 1: Locating Nissan Vehicle Immobilizer System (NATS) Components And Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If the customer reports a "No Start" condition, request ALL KEYS be brought to Dealer in case of NATS malfunction.
