Wiring Diagram - HORN -

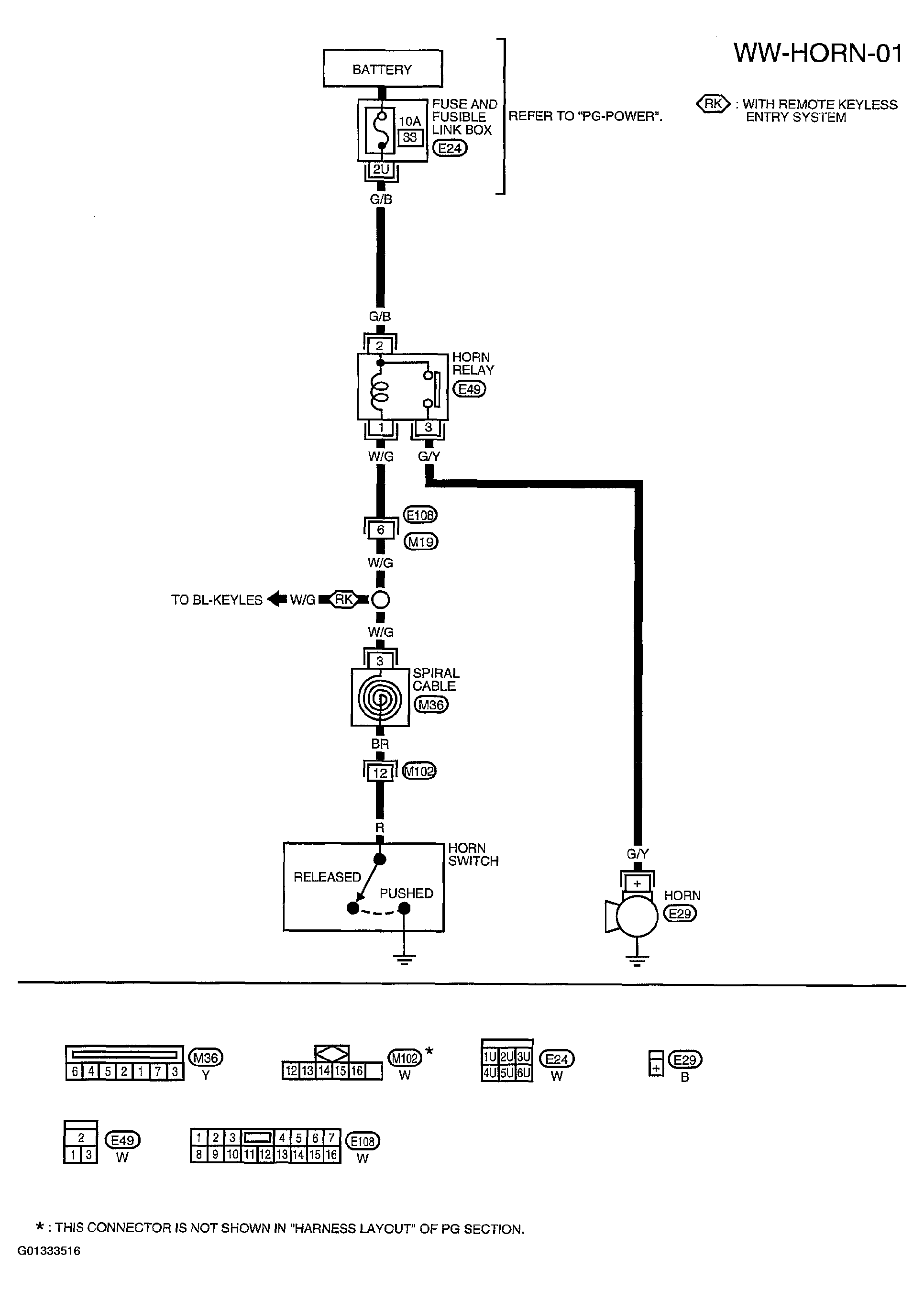

Fig 1: Wiring Diagram - HORN - 01

G01333516

Courtesy of NISSAN MOTOR CO., U.S.A.
