Wiring Diagram - H/LAMP -

NOTE: For references in wiring diagrams to "PG-POWER", see POWER DISTRIBUTION .

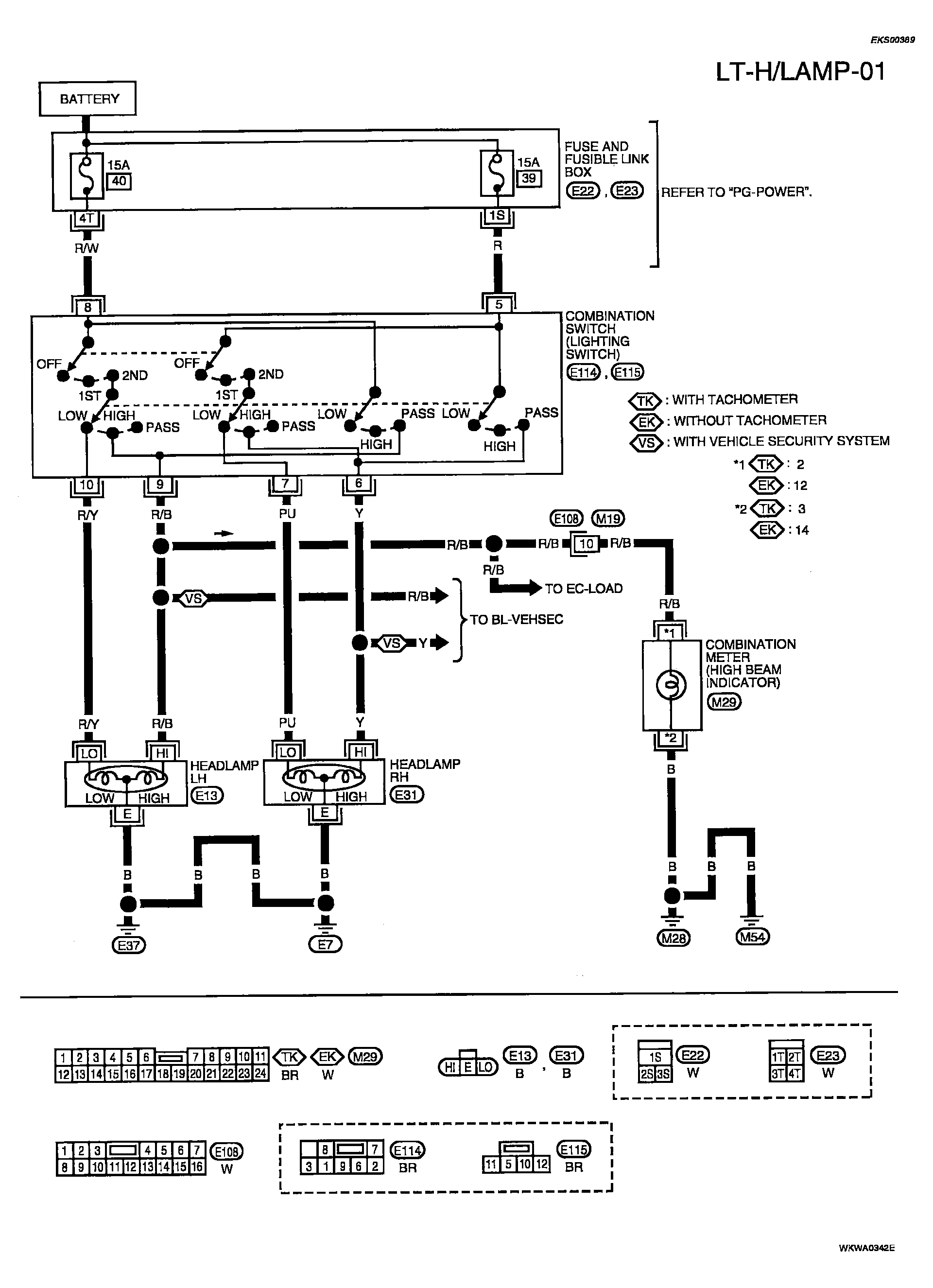

Fig 1: Wiring Diagram - H/LAMP -

G04065131

Courtesy of NISSAN MOTOR CO., U.S.A.
