Wiring Diagram - DTRL

NOTE: References in wiring diagrams to PG-POWER, see POWER DISTRIBUTION .

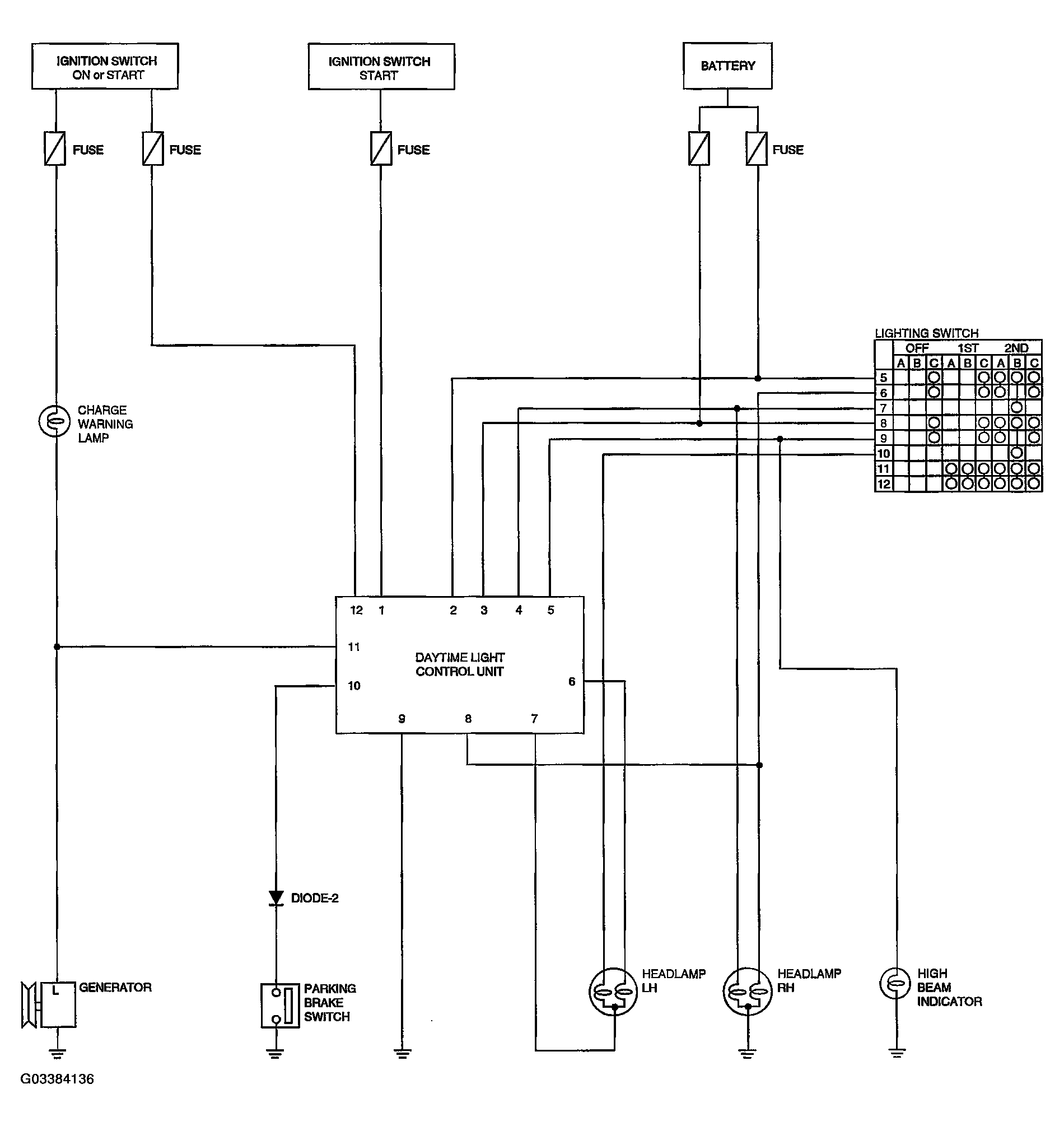

Fig 1: Headlamp Daytime Light System Schematic Diagram (1 Of 4)
G03384136Courtesy of NISSAN MOTOR CO., U.S.A.

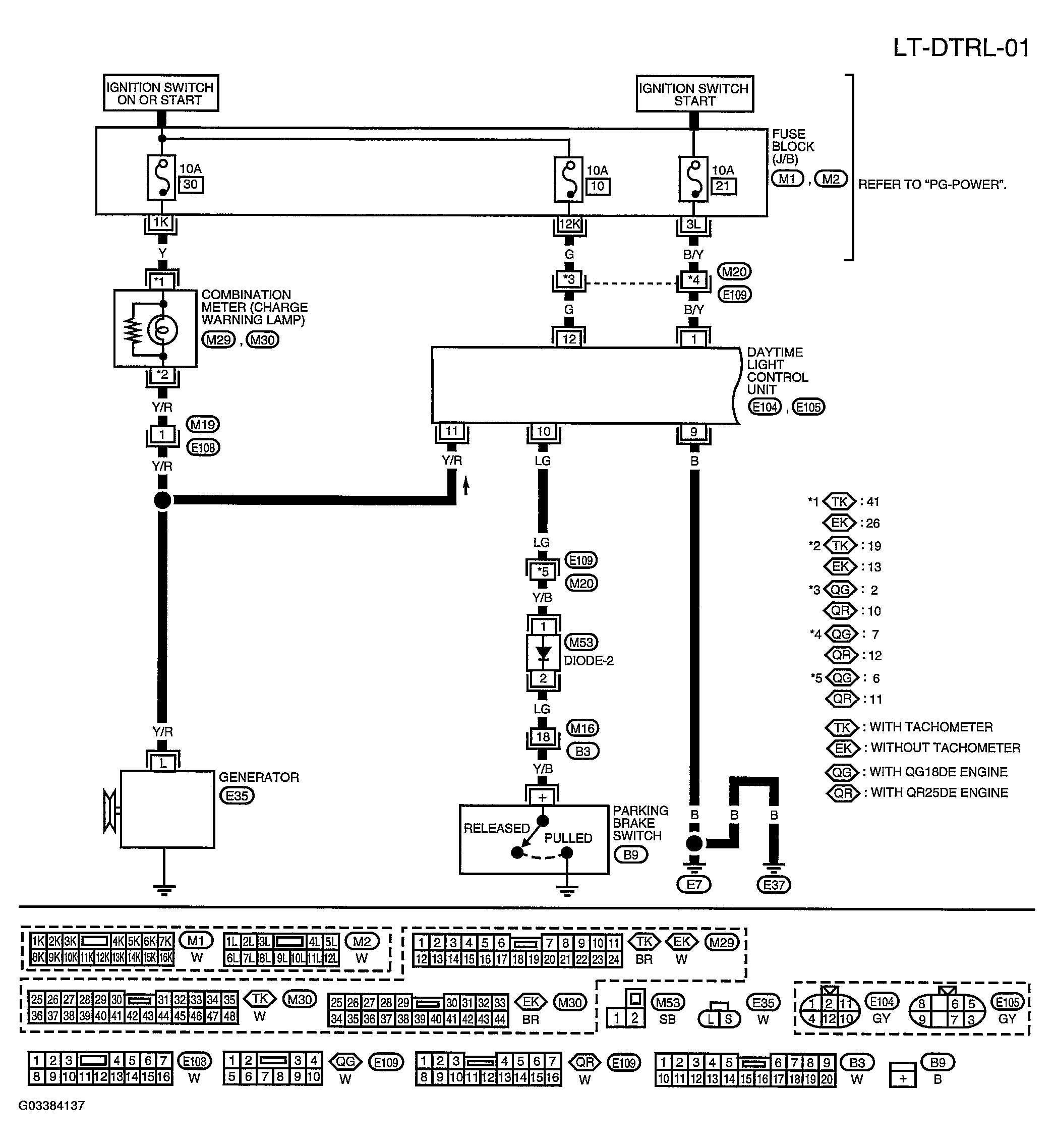

Fig 2: Headlamp Daytime Light System Schematic Diagram (2 Of 4)
G03384137Courtesy of NISSAN MOTOR CO., U.S.A.

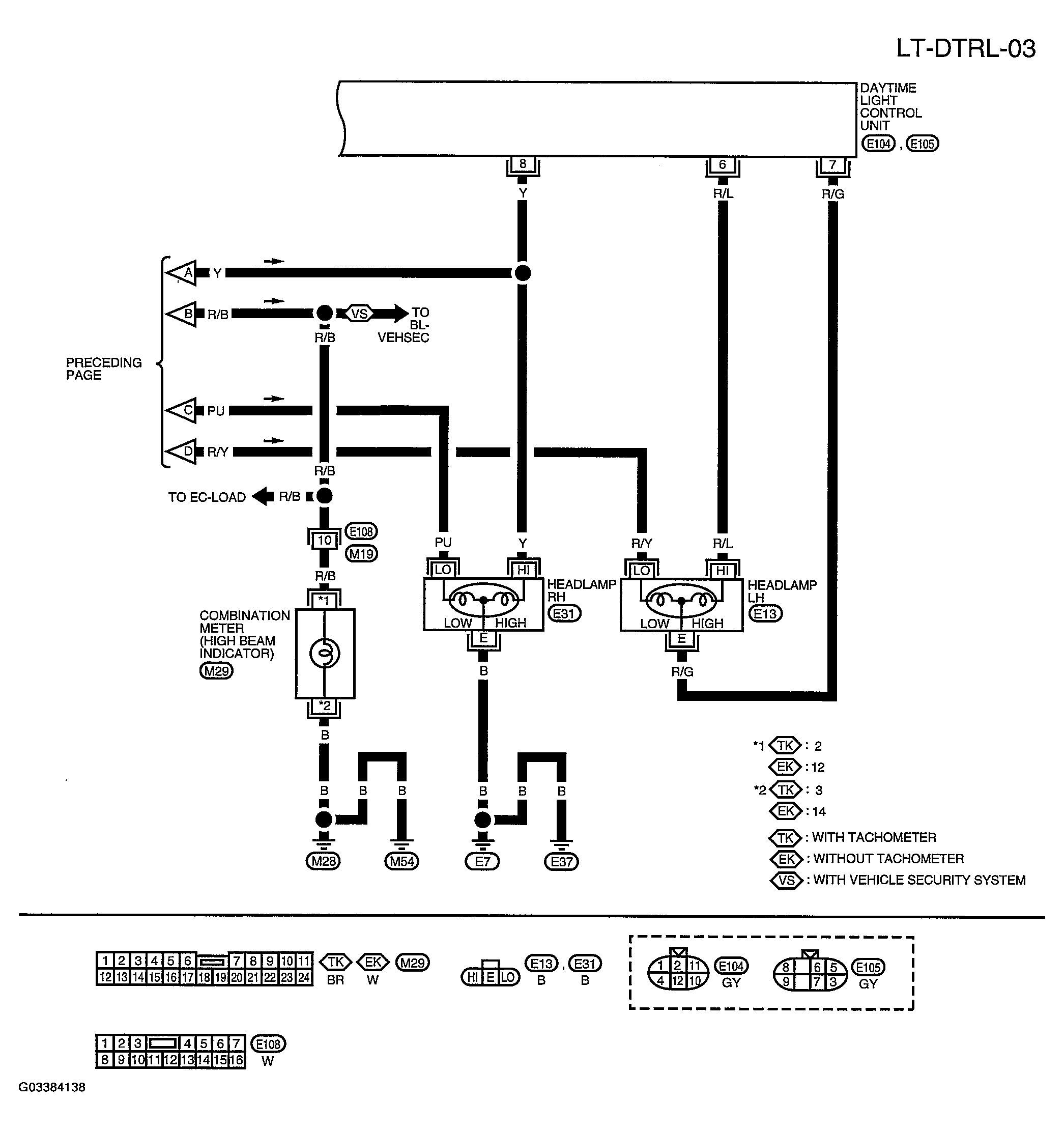

Fig 3: Headlamp Daytime Light System Schematic Diagram (3 Of 4)
G03384138Courtesy of NISSAN MOTOR CO., U.S.A.

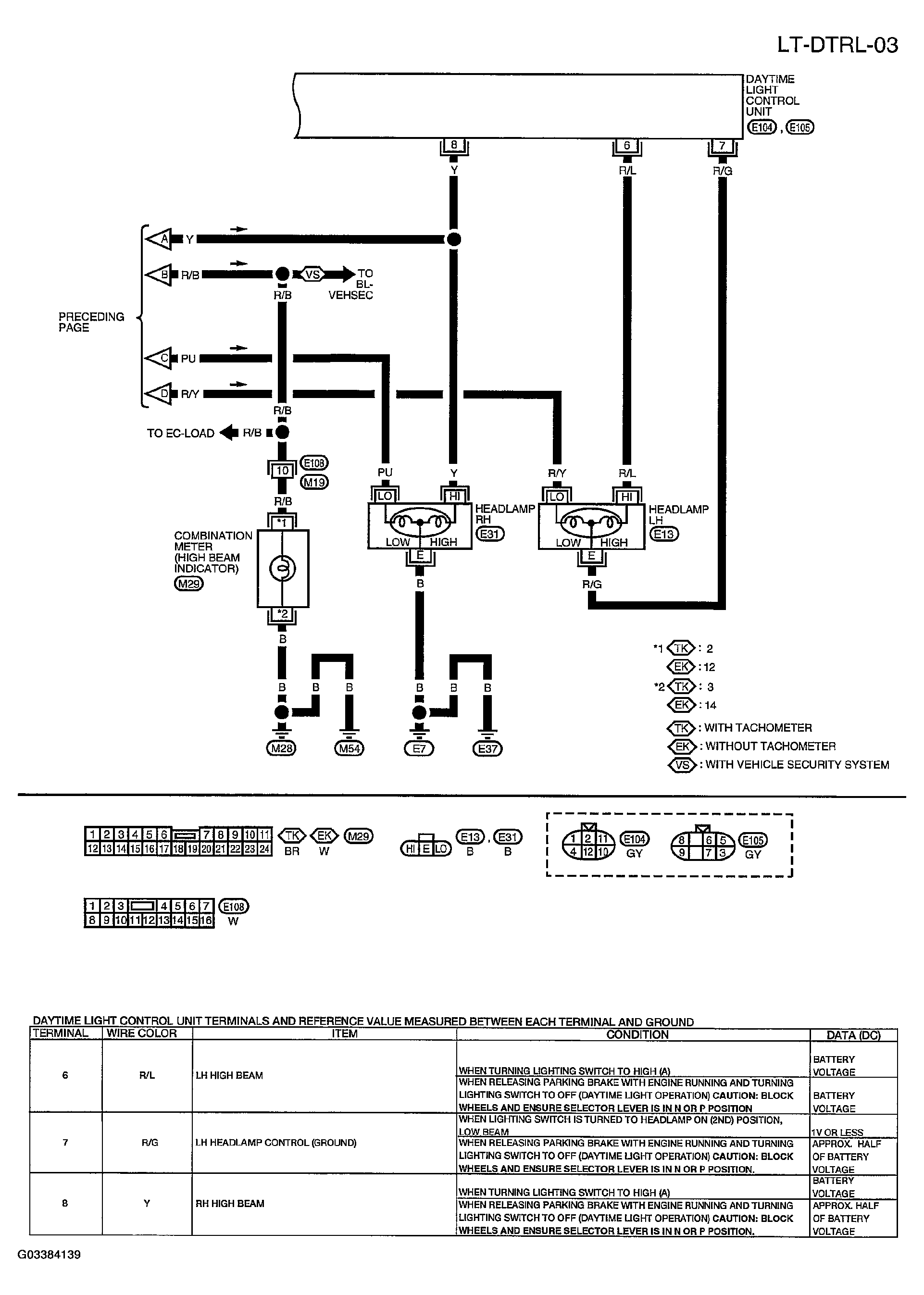

Fig 4: Headlamp Daytime Light System Schematic Diagram (4 Of 4)
G03384139Courtesy of NISSAN MOTOR CO., U.S.A.
