Sentra SE-R, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Warning Lamps
>>
Warning Lamps
>>
Wiring Diagram-WARN-
>>
Without Tachometer
Without Tachometer

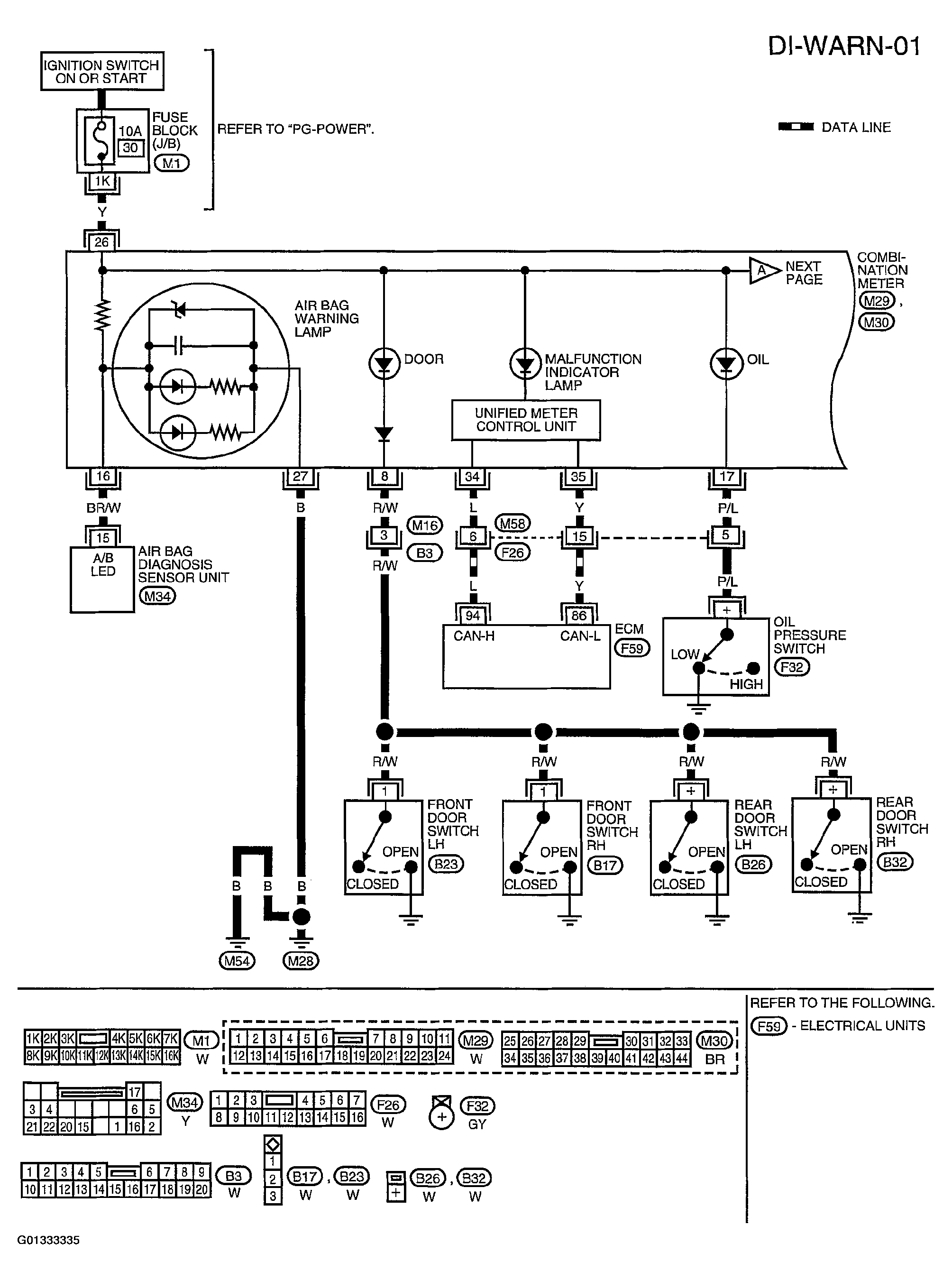

Fig 1: Wiring Diagram -WARN - Without Tachometer (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

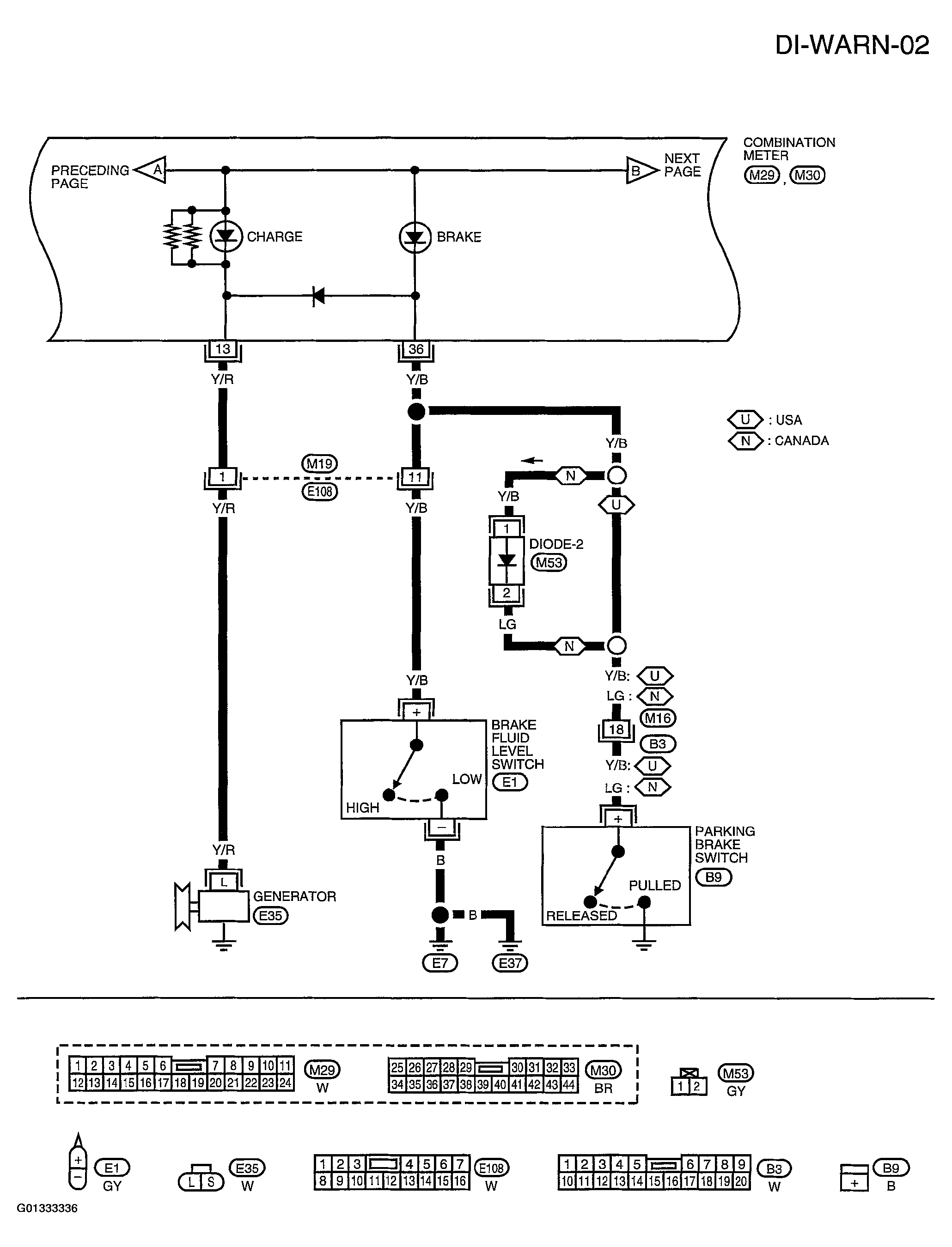

Fig 2: Wiring Diagram -WARN - Without Tachometer (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

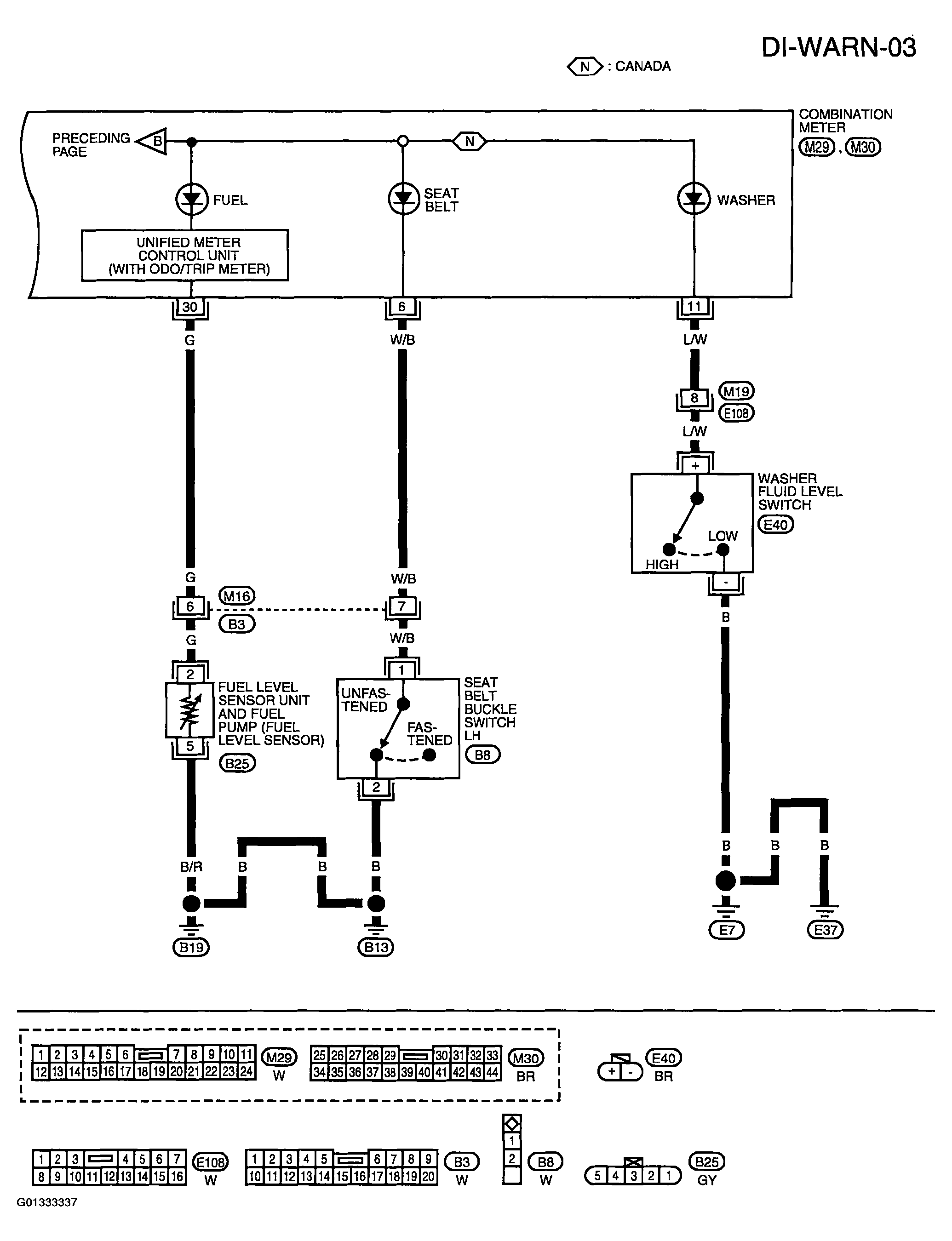

Fig 3: Wiring Diagram -WARN - Without Tachometer (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
