Wiring Diagram-CHIME-
>>
Without Power Door Locks
Without Power Door Locks

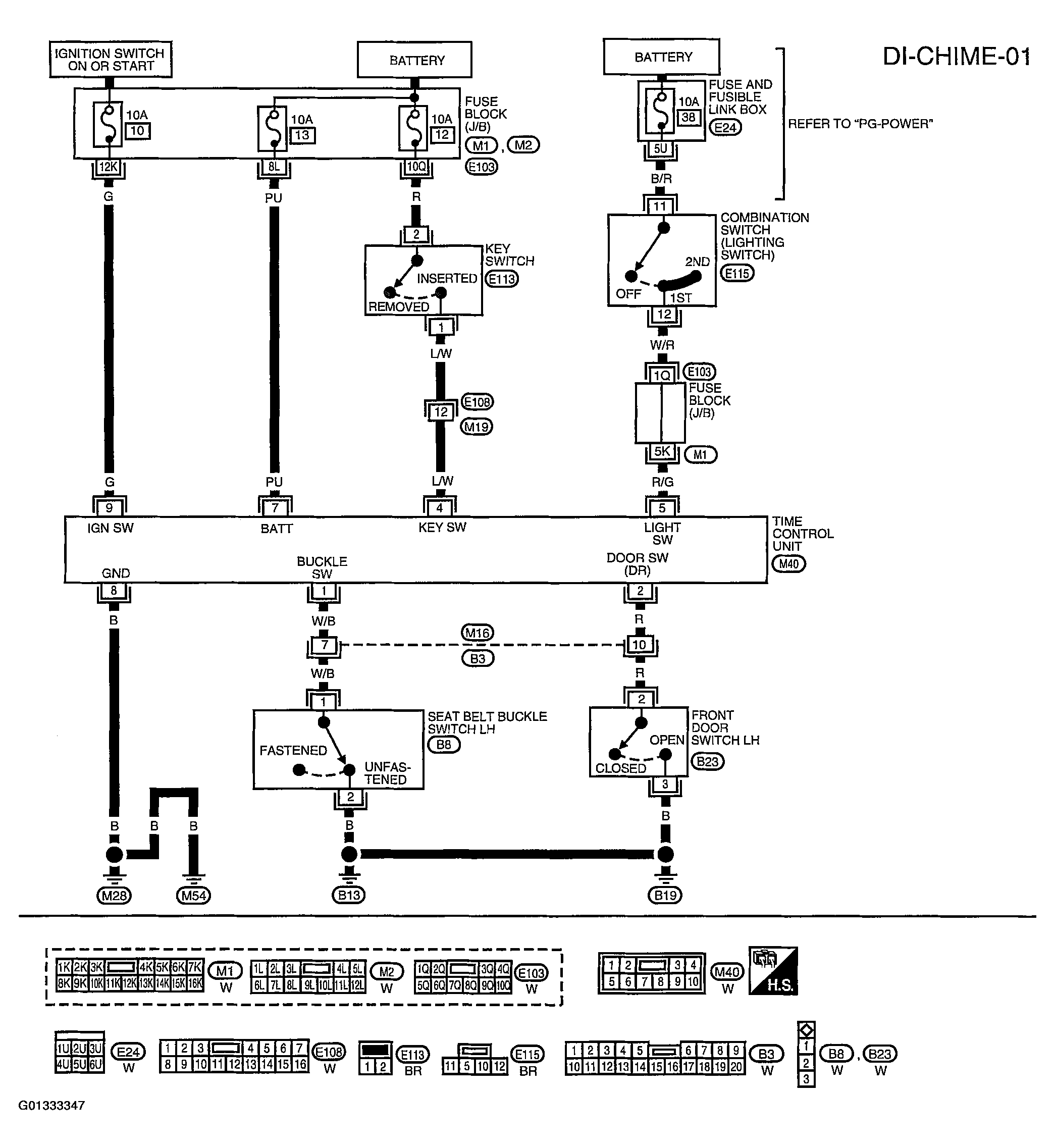

Fig 1: Wiring Diagram - CHIME - Without Power Door Locks
Courtesy of NISSAN MOTOR CO., U.S.A.

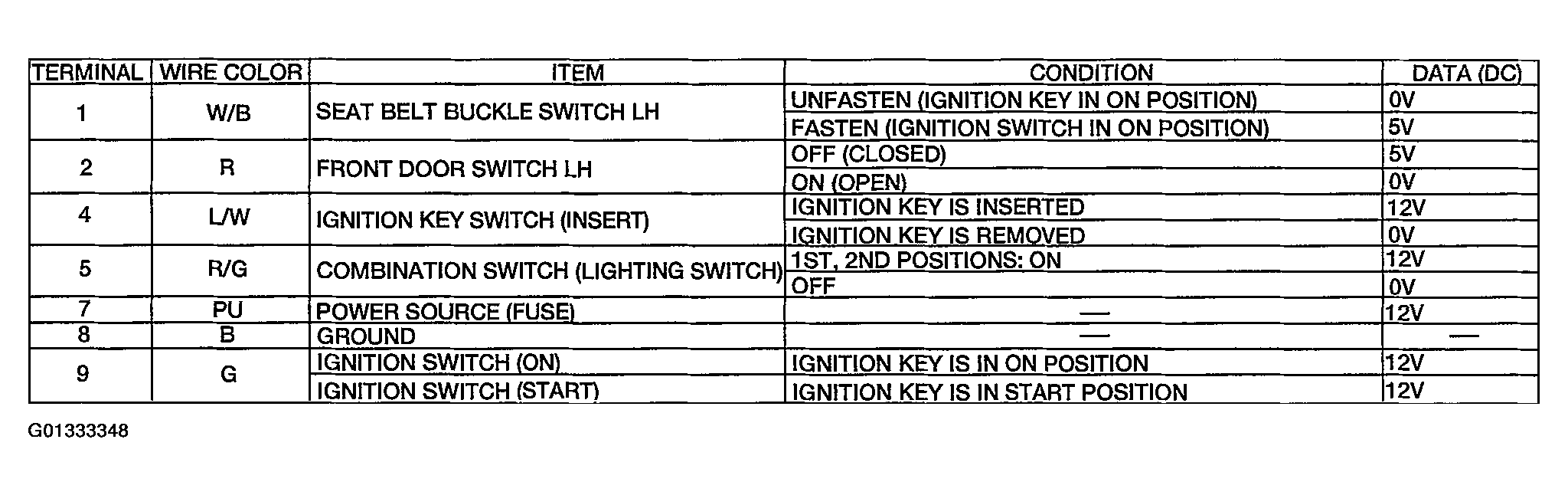

Fig 2: Terminals And Reference Value Table (Without Power Door Locks)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
