With Power Door Locks

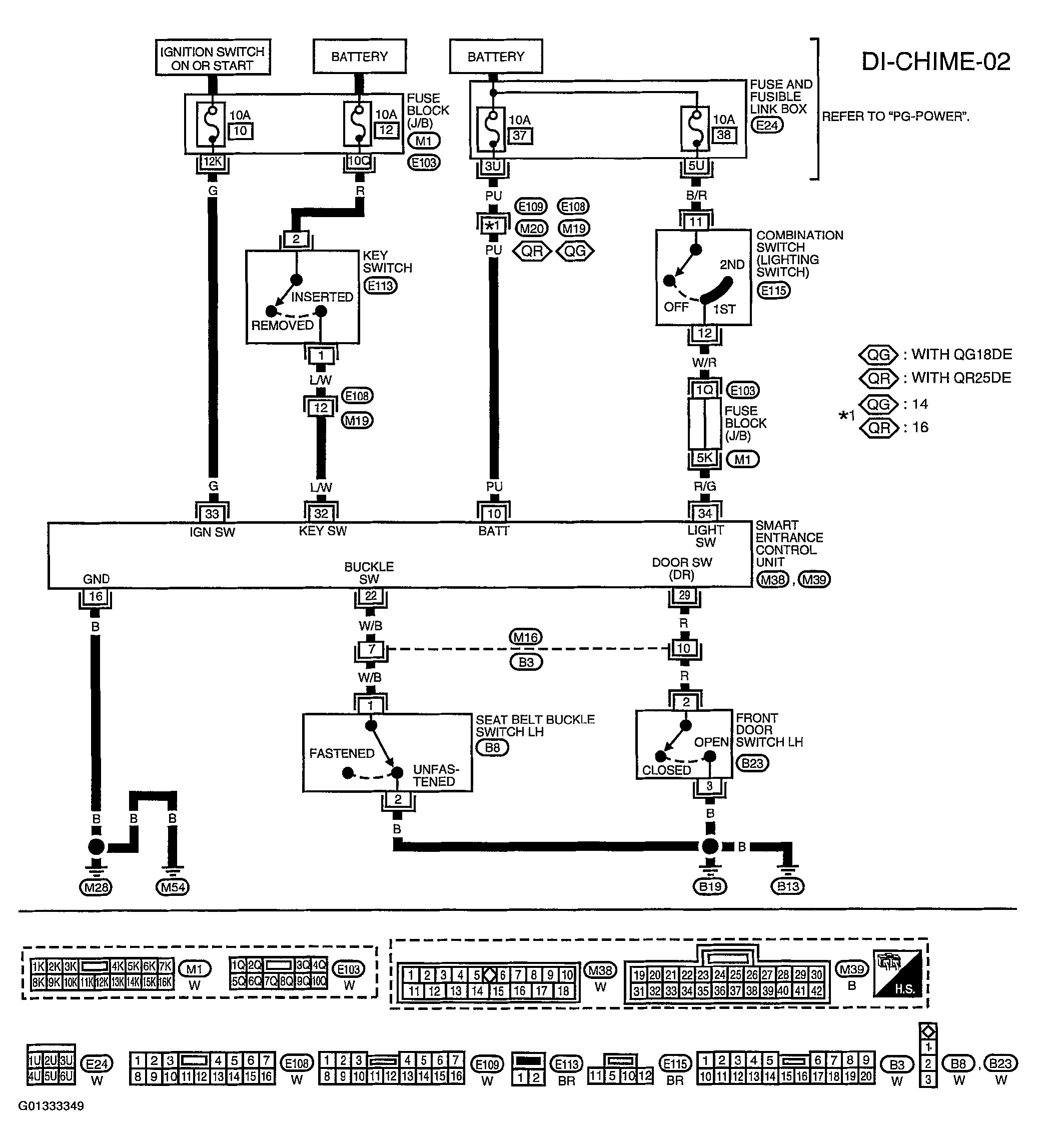

Fig 1: Wiring Diagram - CHIME - With Power Door Locks
G01333349Courtesy of NISSAN MOTOR CO., U.S.A.

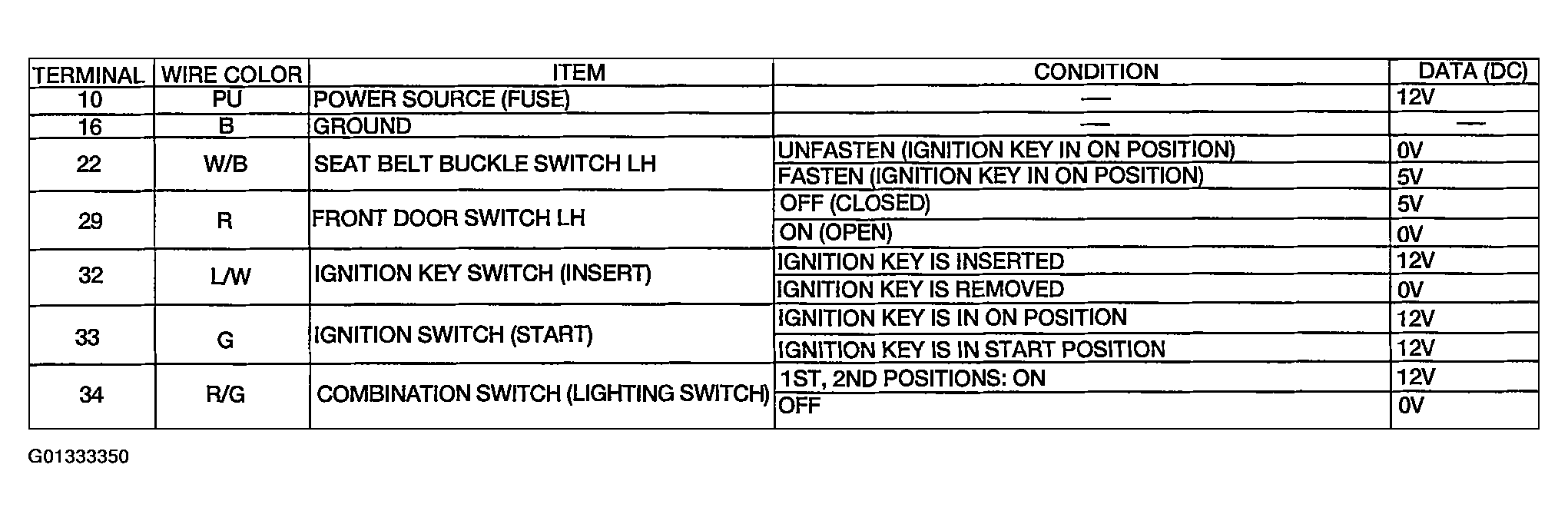

Fig 2: Terminals And Reference Value Table (With Power Door Locks)
G01333350Courtesy of NISSAN MOTOR CO., U.S.A.
