Power Supply Circuit Check

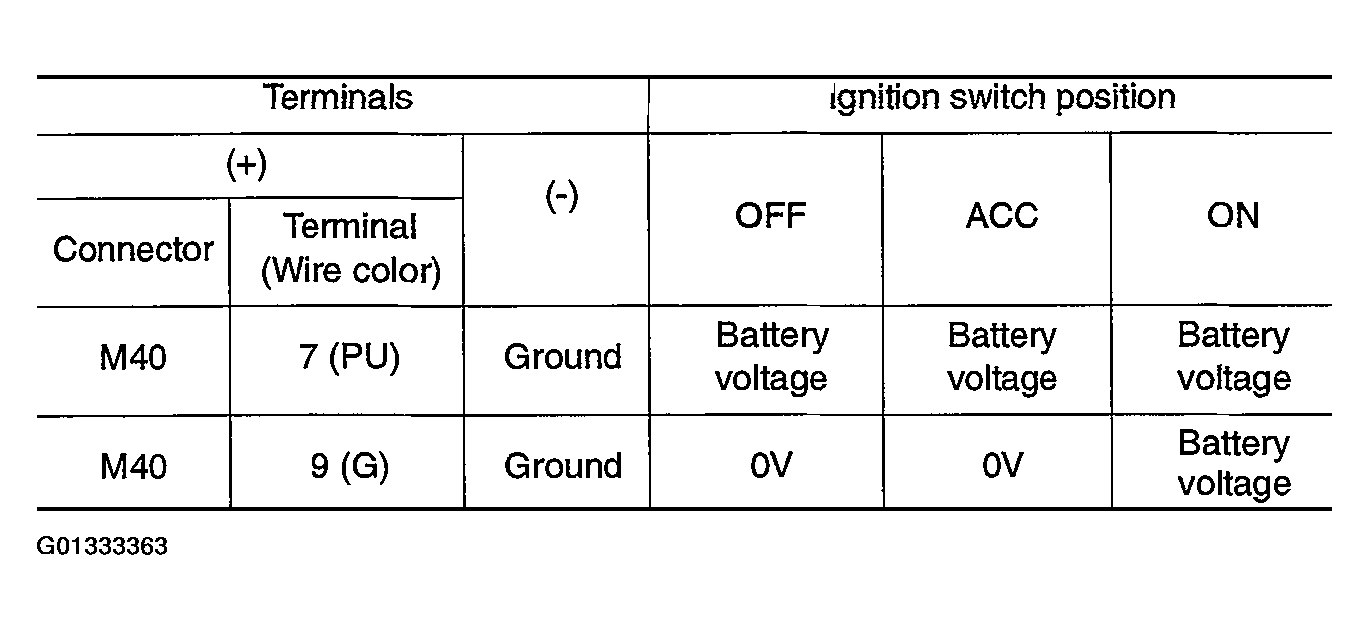

Fig 1: Power Supply Circuit Check Table

G01333363

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Power Supply Circuit

G01333364

Courtesy of NISSAN MOTOR CO., U.S.A.
