Diagnostic Procedure 1 (Lighting Switch Input Signal Check)

• With CONSULT-II

  Check lighting switch ("HD/LMP 1ST SW") in "DATA MONITOR" mode with CONSULT-II.

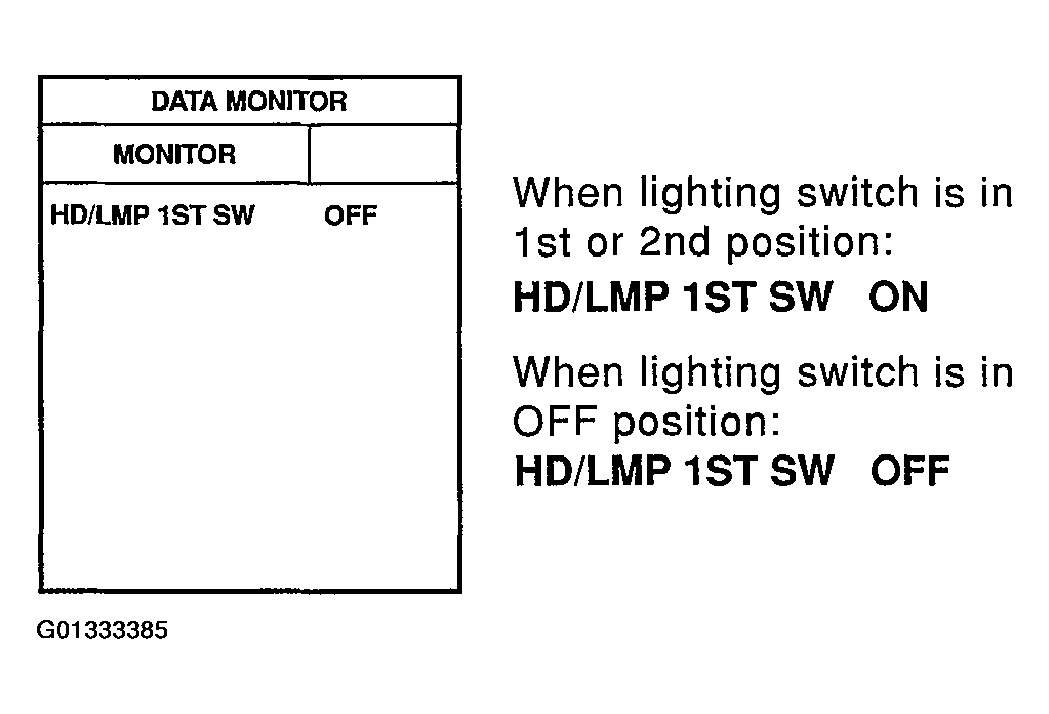

  Fig 1: Checking Lighting Switch Input Signal - With CONSULT-II

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Without CONSULT-II

  Check voltage between smart entrance control unit terminal 34 and ground.

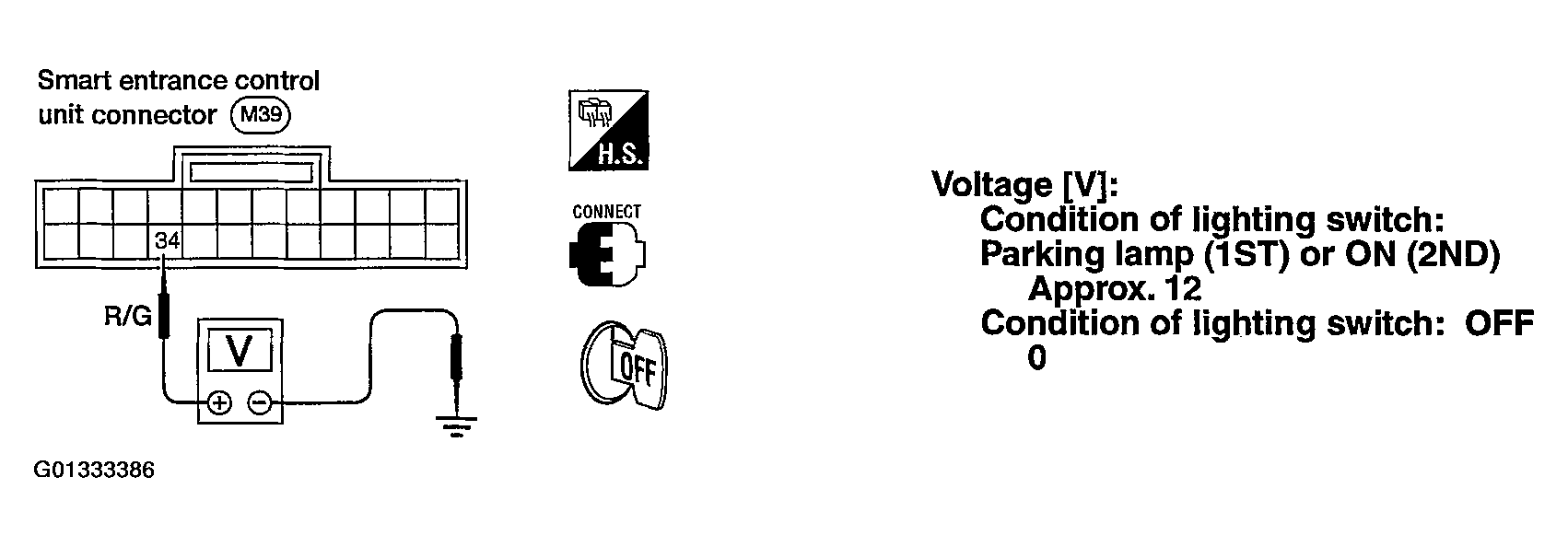

  Fig 2: Checking Lighting Switch Input Signal - Without CONSULT-II

  Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Lighting switch is OK.

NG : Check the following.

• 1OA fuse (No. 38, located in the fuse and fusible link box)
• Harness for open or short between smart entrance control unit and lighting switch
