Home >> Nissan-Datsun >> 2003 >> Sentra SE-R, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Gauges & Instrument Panels >> Meters And Gauges >> Meters And Gauges >> Schematic >> Without Tachometer

Without Tachometer

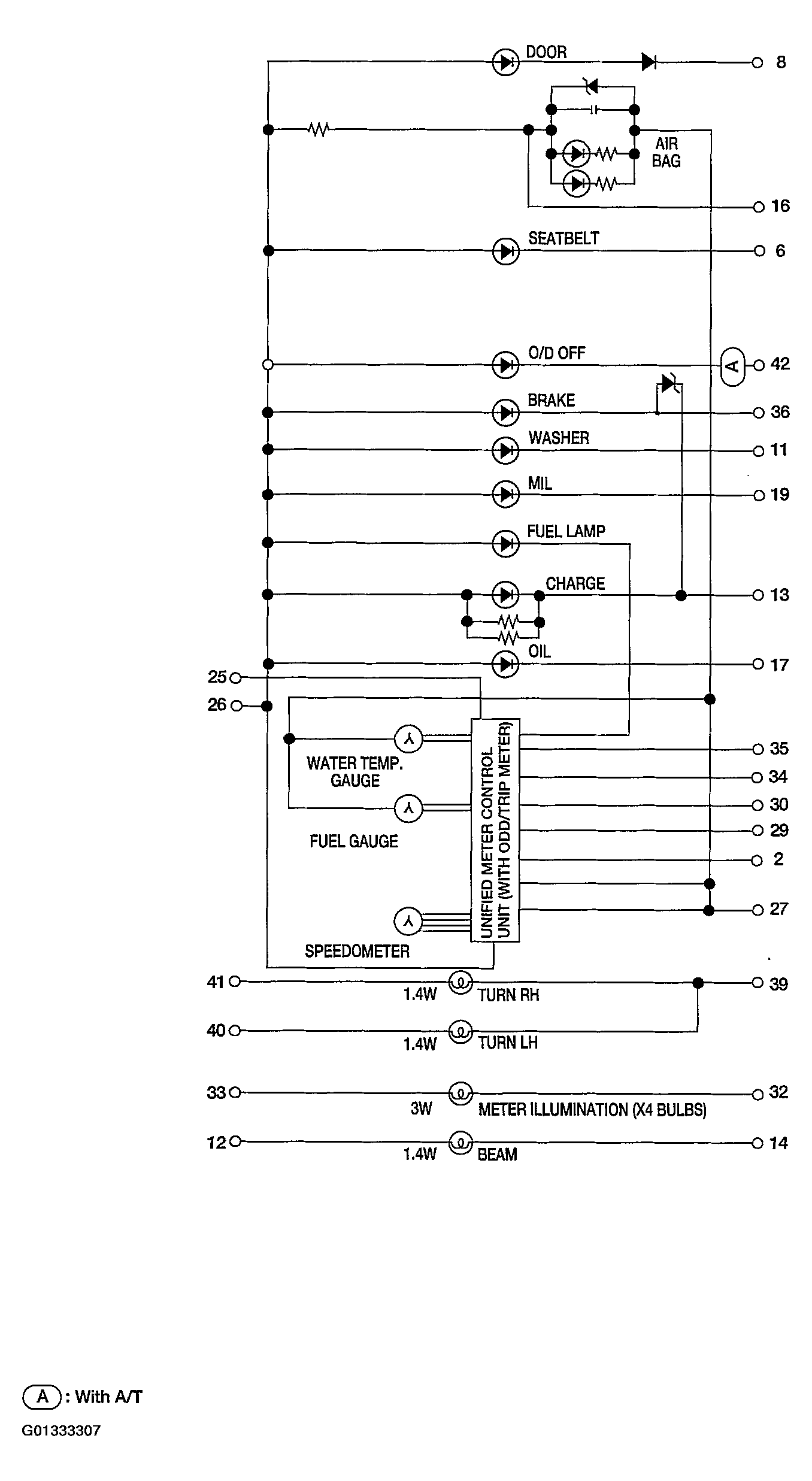

Fig 1: Schematic - Without Tachometer

G01333307

Courtesy of NISSAN MOTOR CO., U.S.A.
