Wiring Diagram - Tail/Lamp

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION .

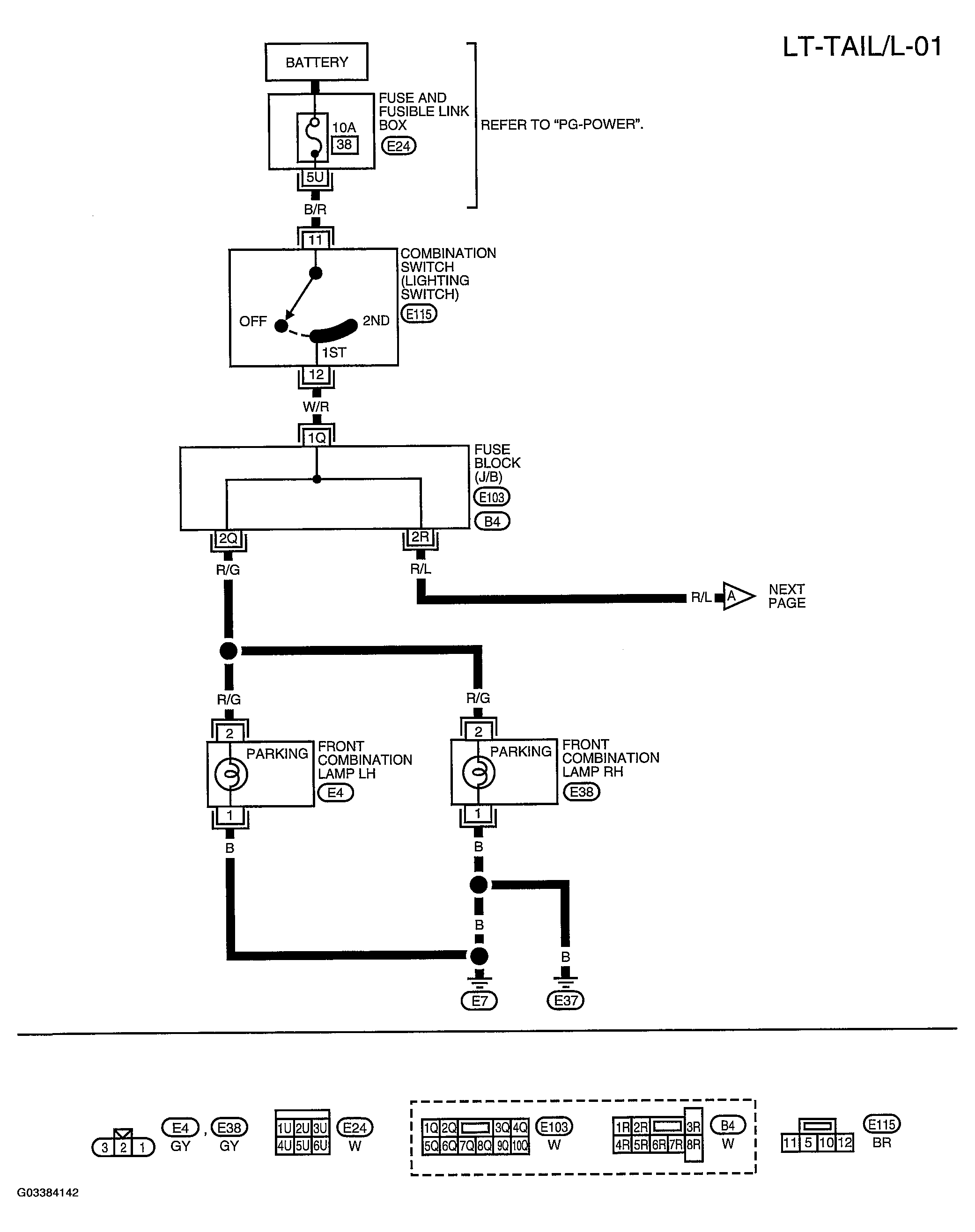

Fig 1: Parking, License And Tail Lamps Wiring Diagram - 1 Of 2 (LT-STOP/L-01)
G03384142Courtesy of NISSAN MOTOR CO., U.S.A.

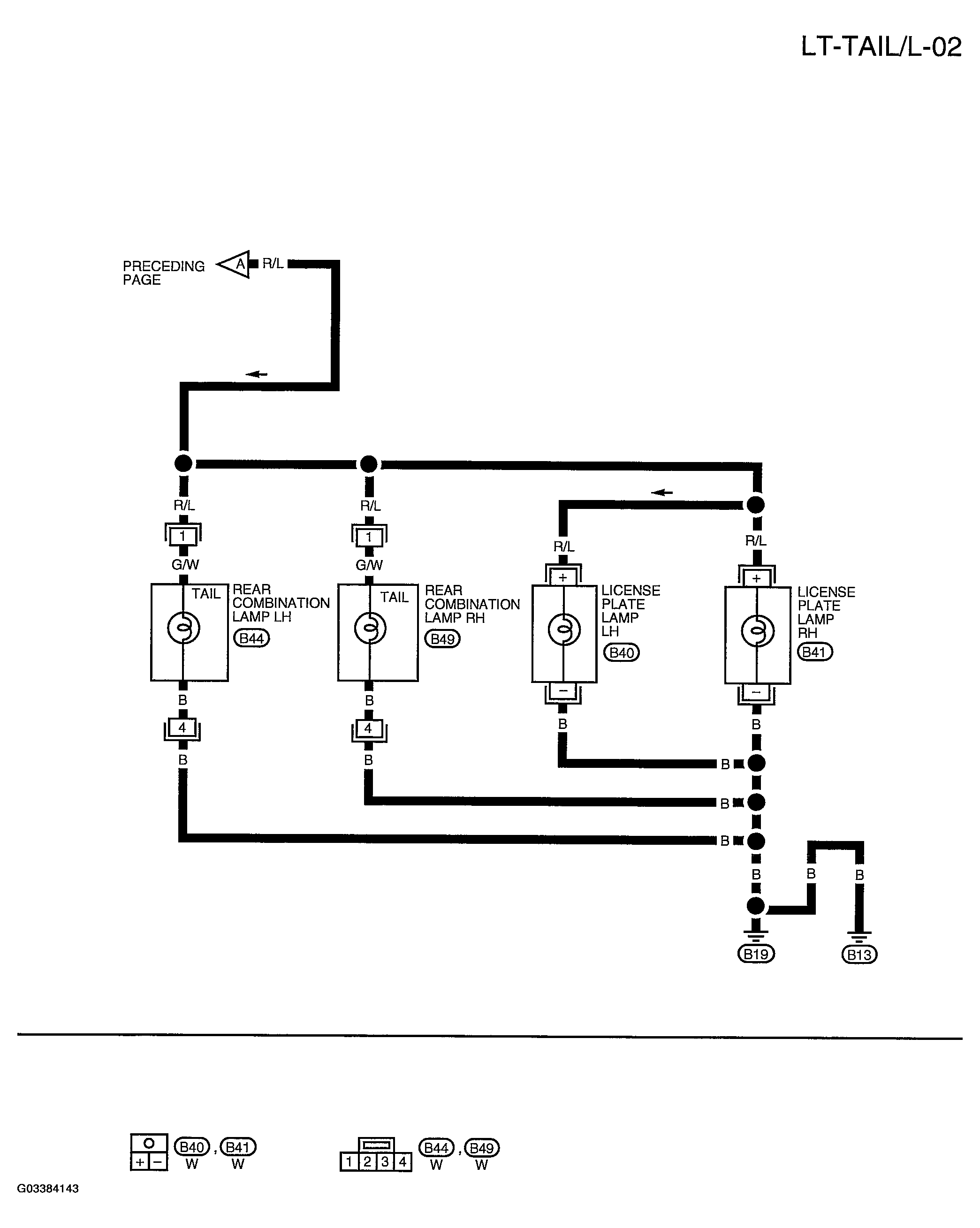

Fig 2: Parking, License And Tail Lamps Wiring Diagram - 2 Of 2 (LT-STOP/L-02)
G03384143Courtesy of NISSAN MOTOR CO., U.S.A.
