Section 867 (Anti-Lock Brake System & Traction Control System - Abs/TCS)
>>
Trouble Diagnosis
>>
Ground Circuit Check
>>
Abs Warning Lamp, TCS Off Indicator Lamp, Slip Indicator Lamp On/Off Timing
Abs Warning Lamp, TCS Off Indicator Lamp, Slip Indicator Lamp On/Off Timing
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

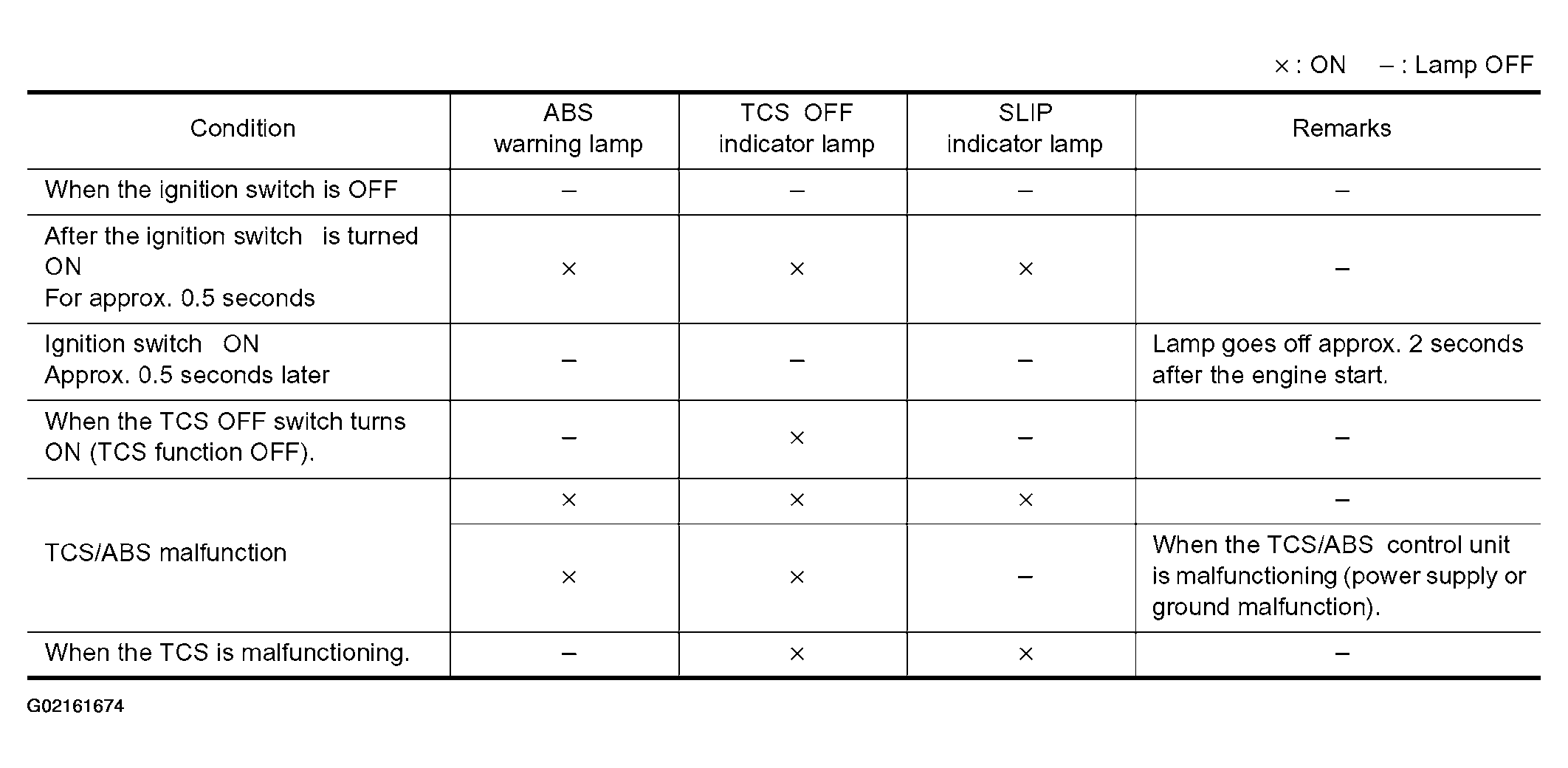

Fig 1: ABS Warning Lamp, TCS OFF Indicator Lamp, Slip Indicator Lamp On/Off Timing Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
