5. Pedal Vibration and Noise

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

INSPECTION START
Pedal vibration and noise inspection.
1. : GO TO 2.

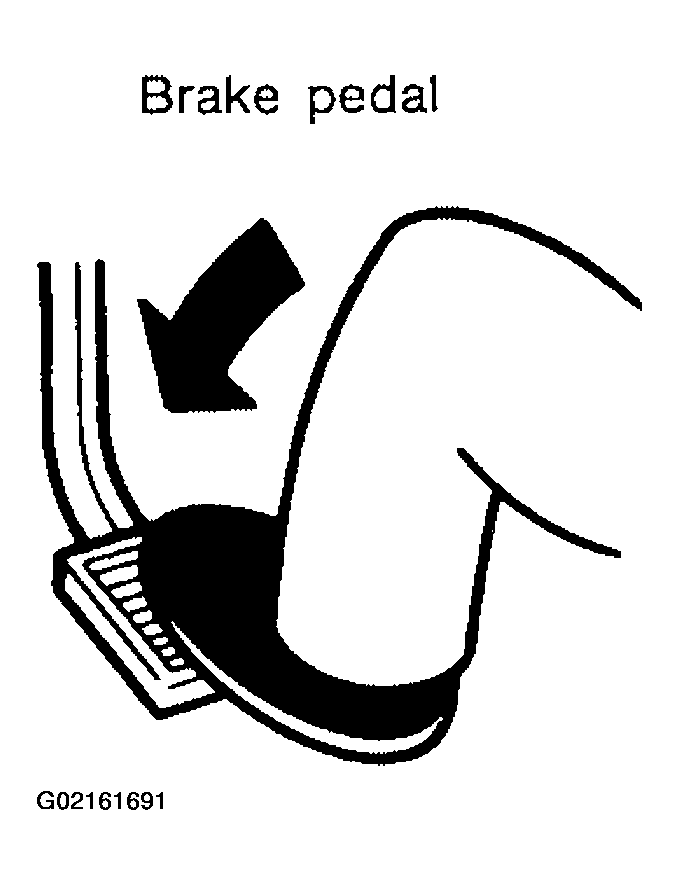

Fig 1: Inspecting Pedal Vibration And Noise
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SYMPTOM
1. Apply brake.
2. Start engine.
  Does the symptom appear only when engine is started?
  1. Yes: Carry out self-diagnosis. Refer to "SELF-DIAGNOSIS PROCEDURE ".
  2. No: GO TO 3.
RECHECK SYMPTOM
Does the symptom appear when electrical equipment switches (such as headlamp) are operated?
1. Yes: INSPECTION END.
2. No: Go to "2. Unexpected Pedal Action ".
NOTE: ABS may operate and cause vibration under any of the following conditions.
- Applying brake gradually when shifting or operating clutch.
- Low friction (slippery) road.
- High speed cornering.
- Driving over bumps and pot holes.
- Engine speed is over 5, 000 rpm with vehicle stopped.
