Inspection After Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for badly rusted or corroded water pump body assembly.
  2. Check for rough operation due to excessive end play.

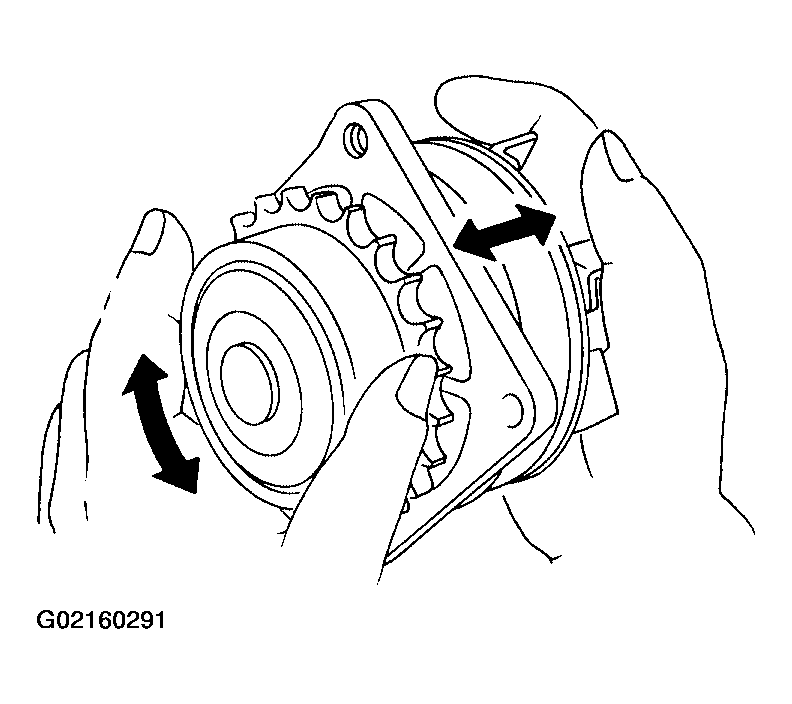

    Fig 1: Inspecting Water Pump Body Assembly
    G02160291Courtesy of NISSAN MOTOR CO., U.S.A.
