Symptom Chart

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

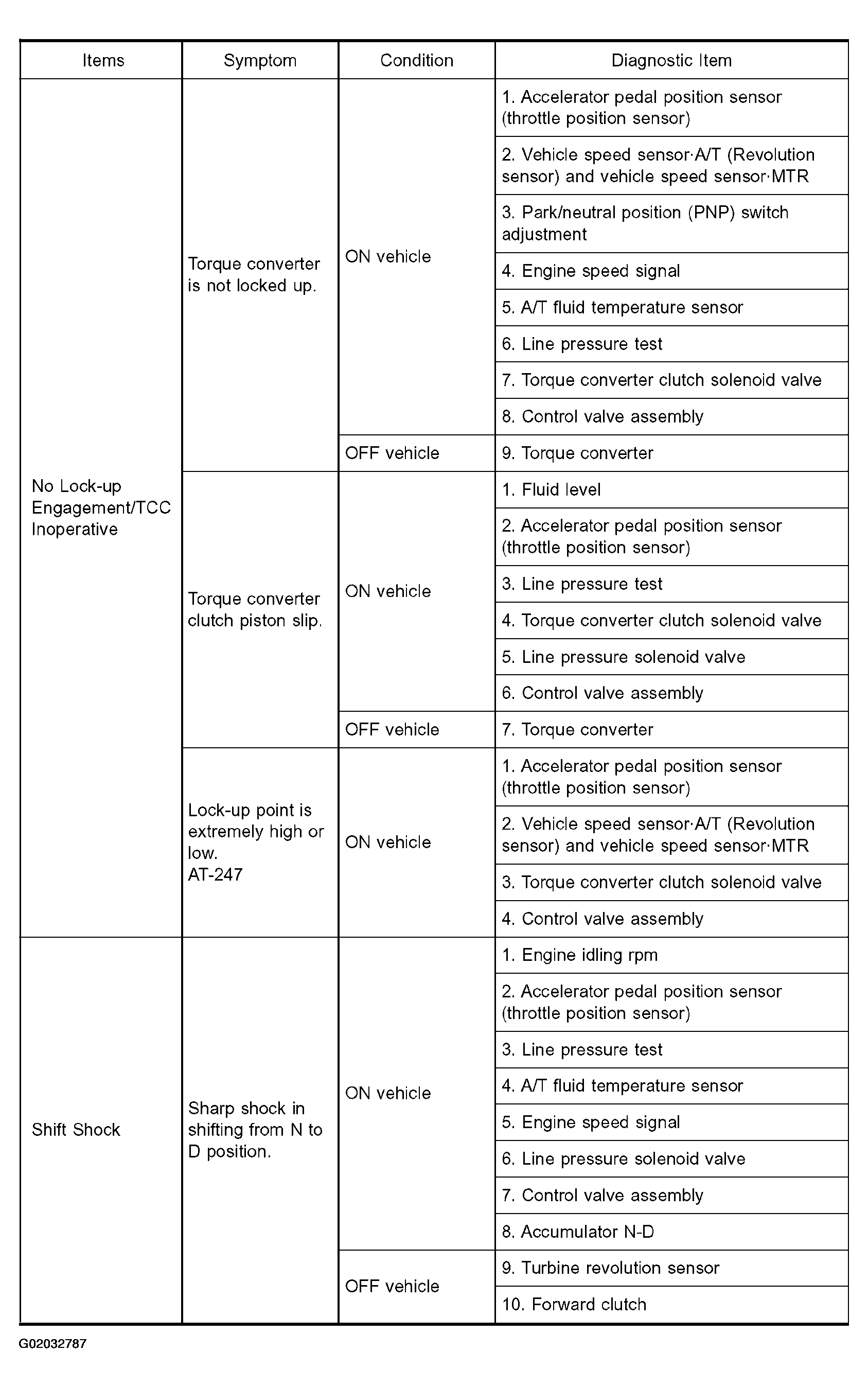

Fig 1: Trouble Diagnosis Symptom Chart (1 Of 12) (

G02032787

Courtesy of NISSAN MOTOR CO., U.S.A.

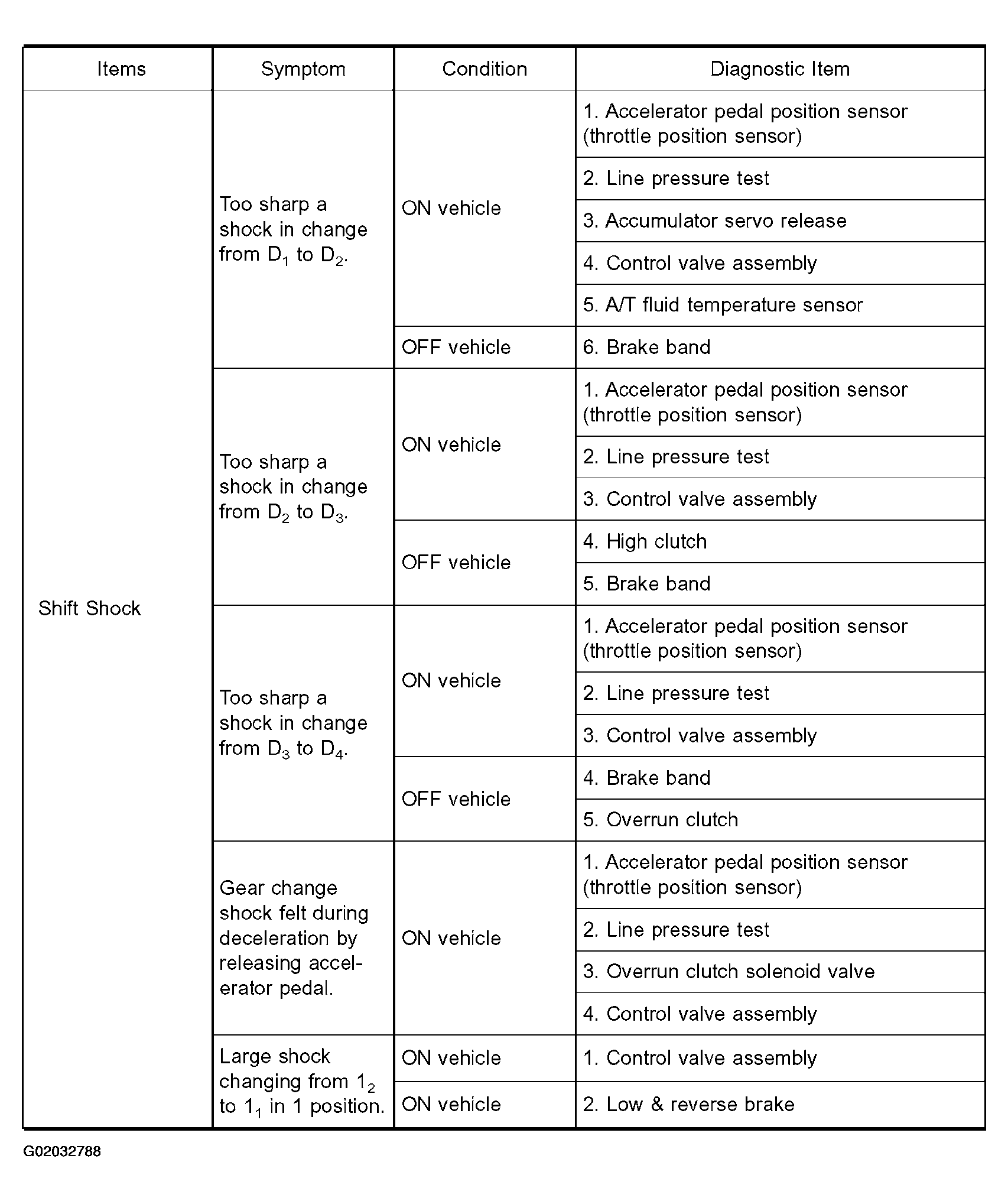

Fig 2: Trouble Diagnosis Symptom Chart (2 Of 12)

G02032788

Courtesy of NISSAN MOTOR CO., U.S.A.

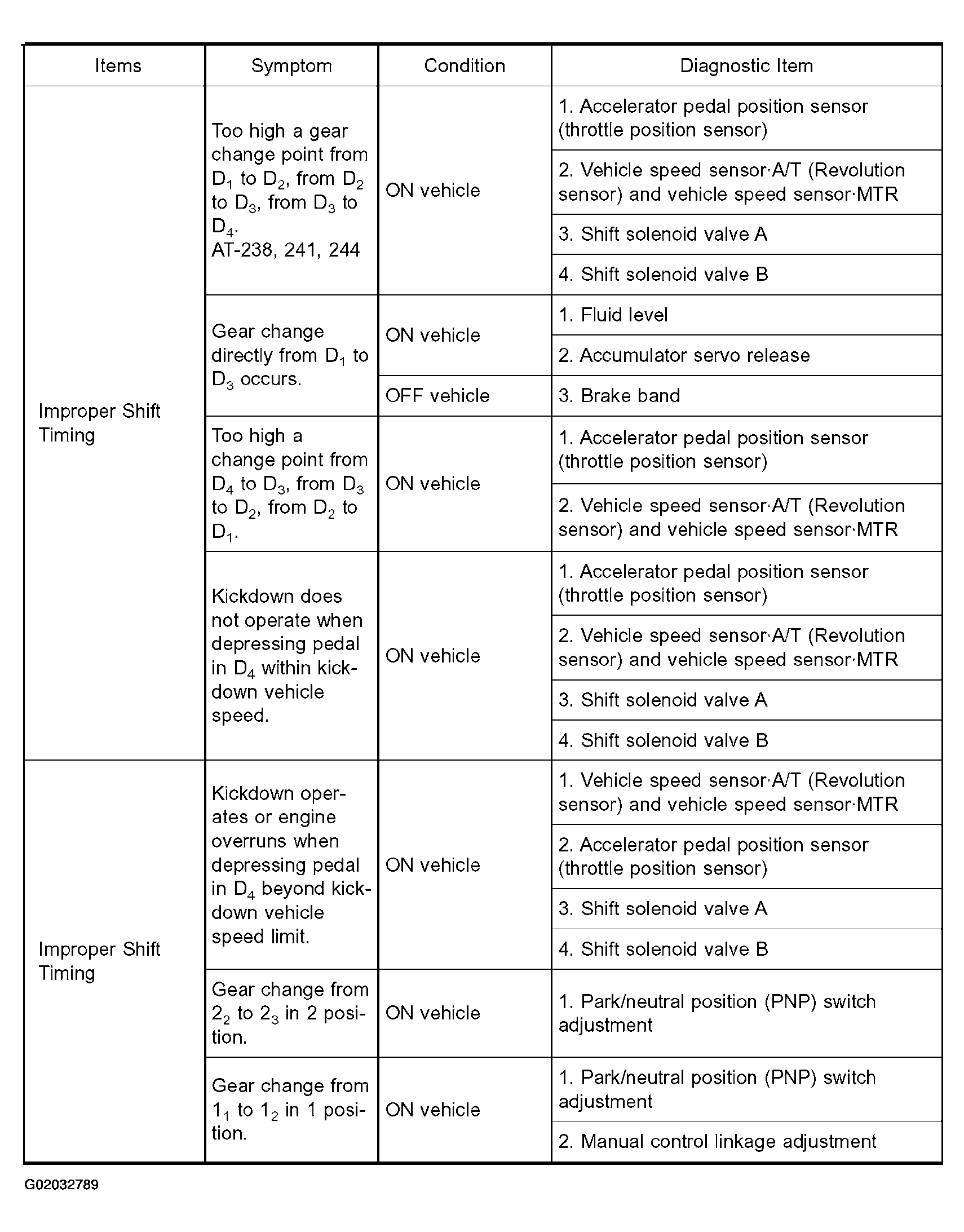

Fig 3: Trouble Diagnosis Symptom Chart (3 Of 12)

G02032789

Courtesy of NISSAN MOTOR CO., U.S.A.

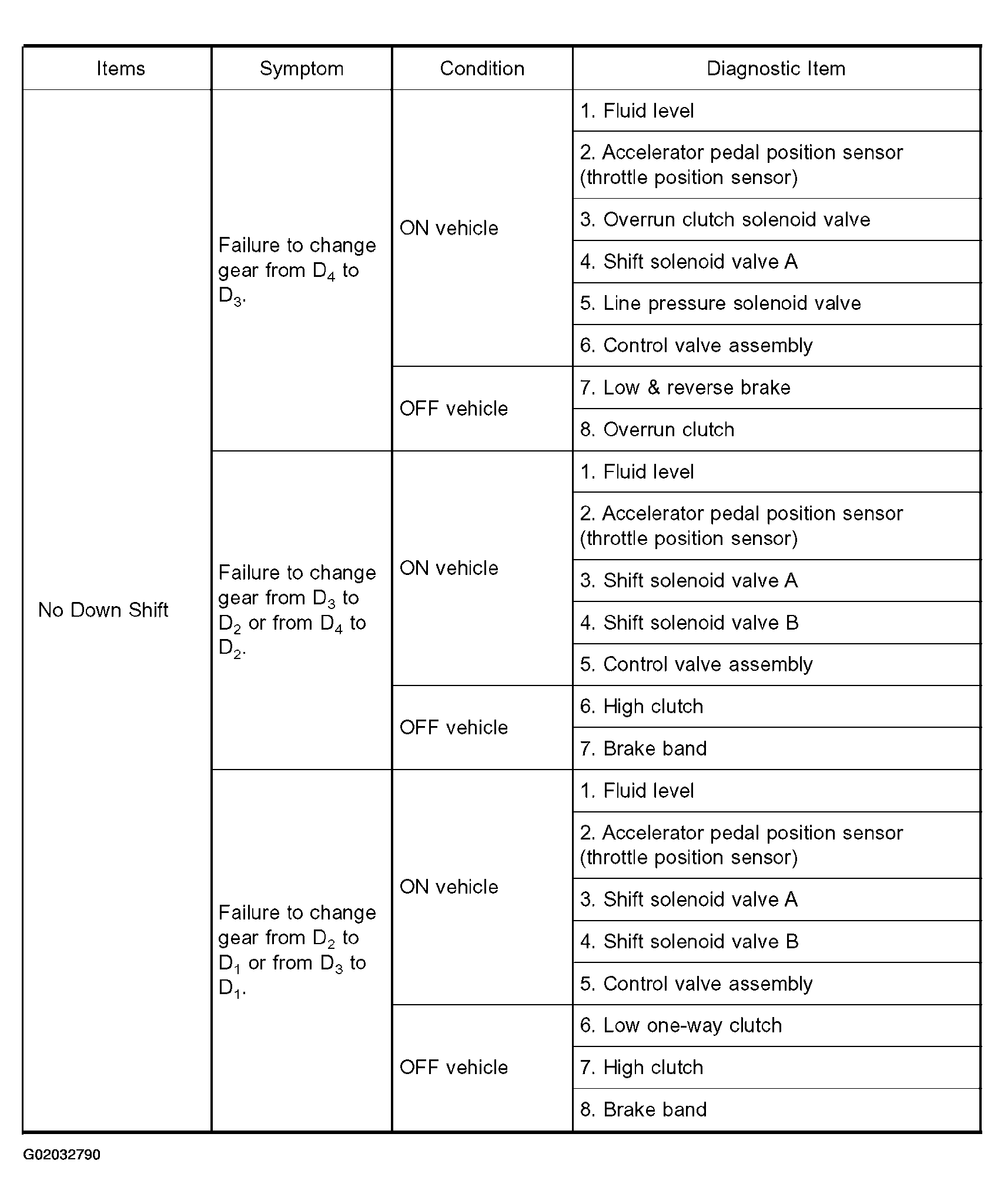

Fig 4: Trouble Diagnosis Symptom Chart (4 Of 12)

G02032790

Courtesy of NISSAN MOTOR CO., U.S.A.

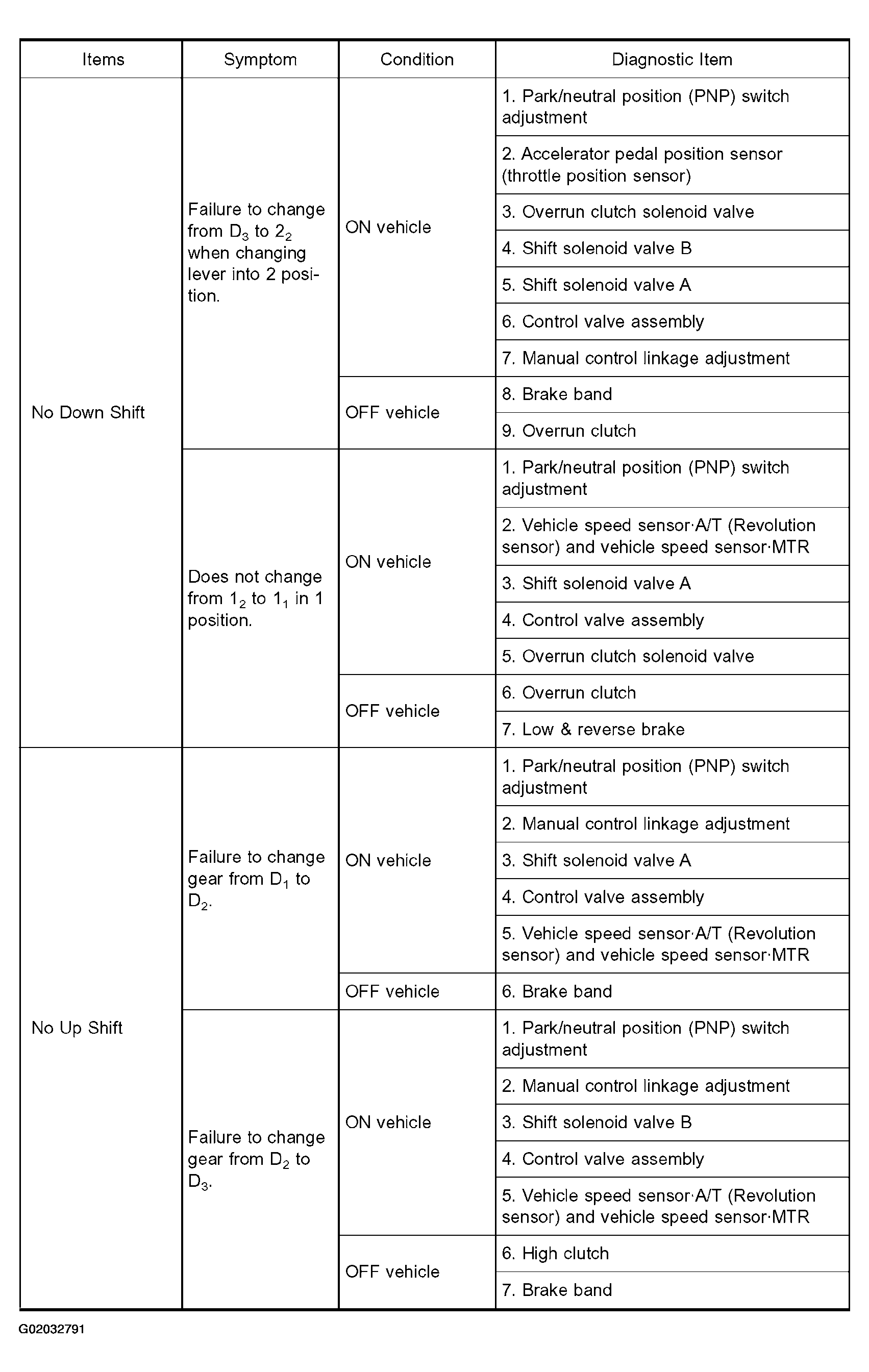

Fig 5: Trouble Diagnosis Symptom Chart (5 Of 12)

G02032791

Courtesy of NISSAN MOTOR CO., U.S.A.

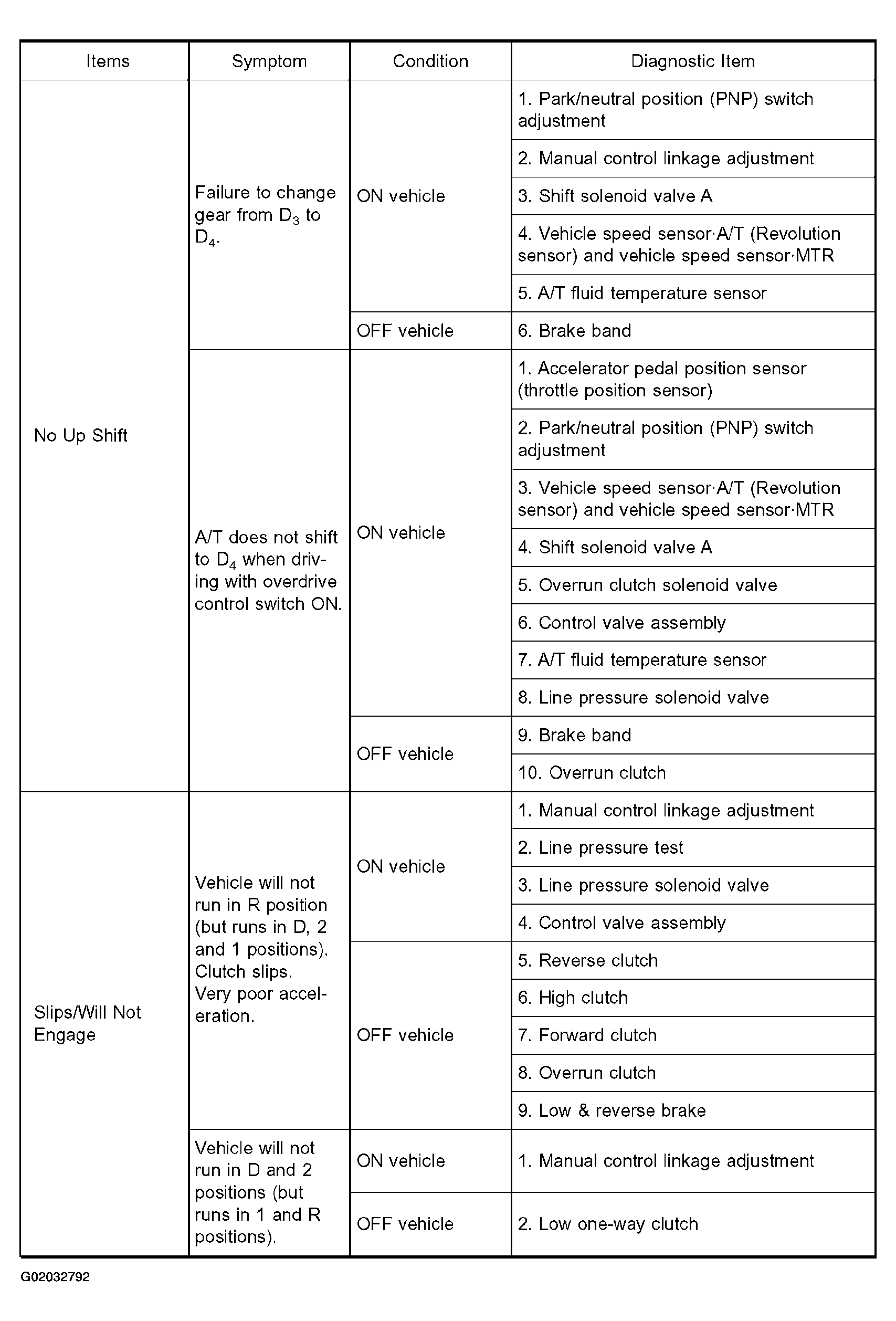

Fig 6: Trouble Diagnosis Symptom Chart (6 Of 12)

G02032792

Courtesy of NISSAN MOTOR CO., U.S.A.

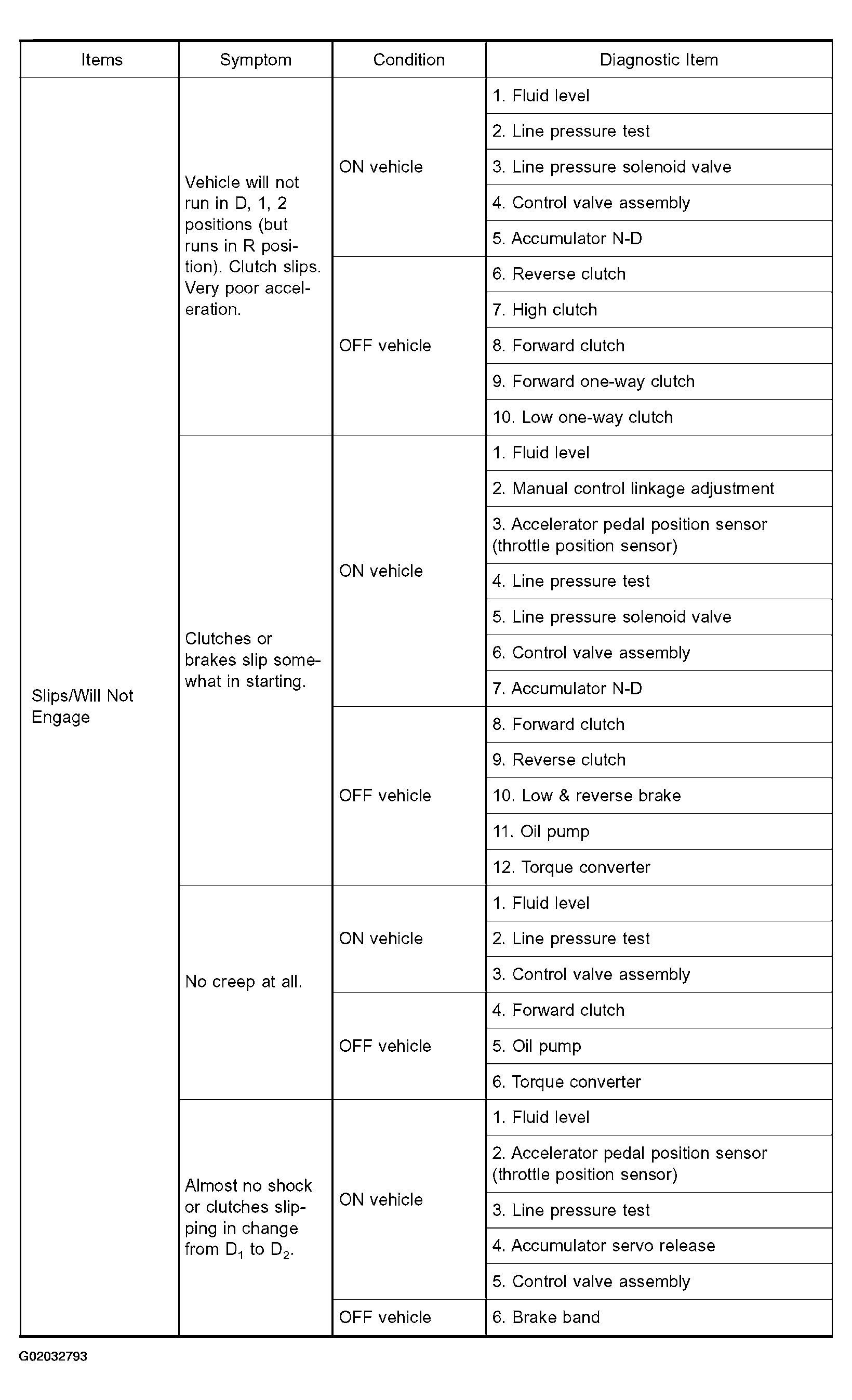

Fig 7: Trouble Diagnosis Symptom Chart (7 Of 12)

G02032793

Courtesy of NISSAN MOTOR CO., U.S.A.

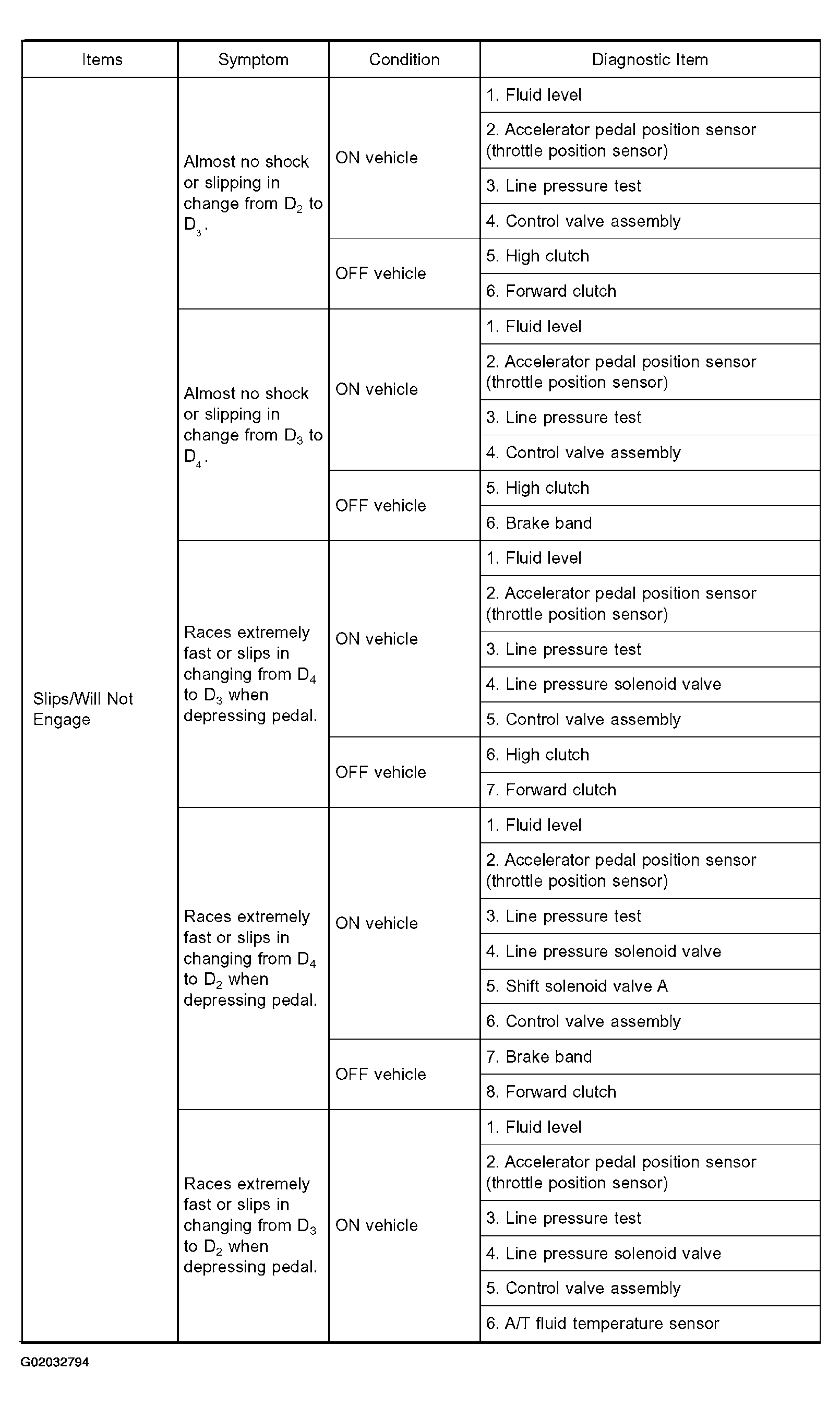

Fig 8: Trouble Diagnosis Symptom Chart (8 Of 12)

G02032794

Courtesy of NISSAN MOTOR CO., U.S.A.

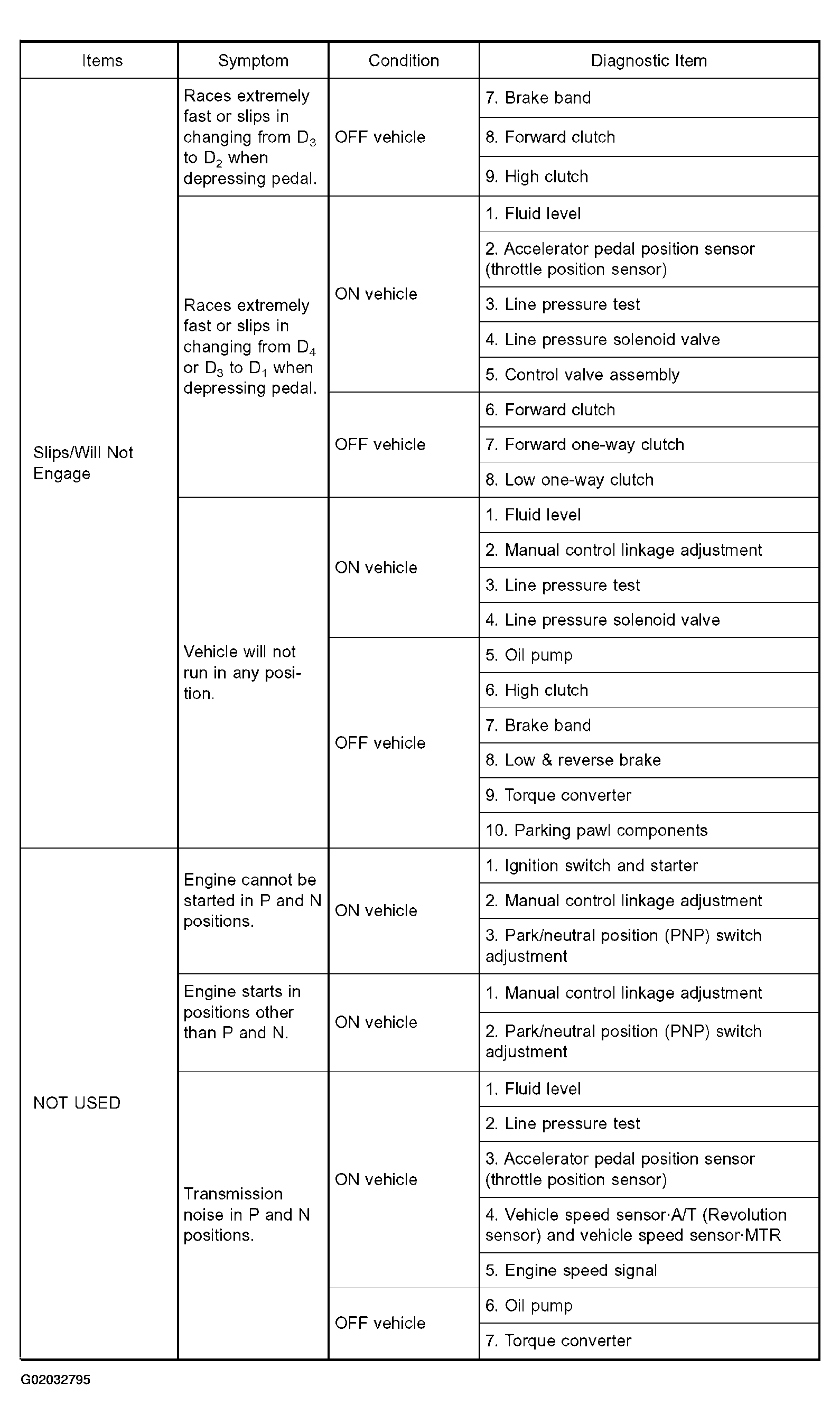

Fig 9: Trouble Diagnosis Symptom Chart (9 Of 12)

G02032795

Courtesy of NISSAN MOTOR CO., U.S.A.

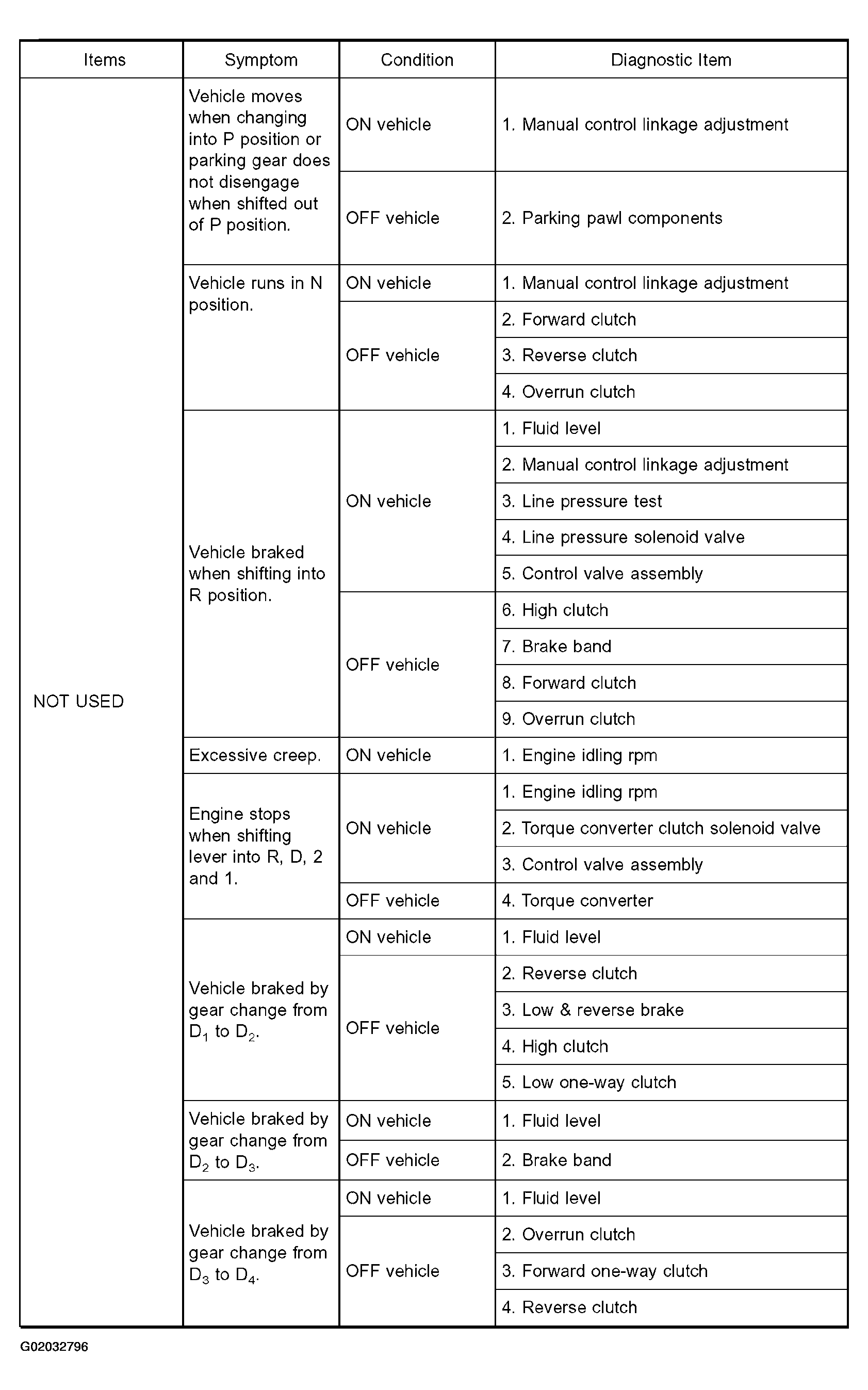

Fig 10: Trouble Diagnosis Symptom Chart (10 Of 12)

G02032796

Courtesy of NISSAN MOTOR CO., U.S.A.

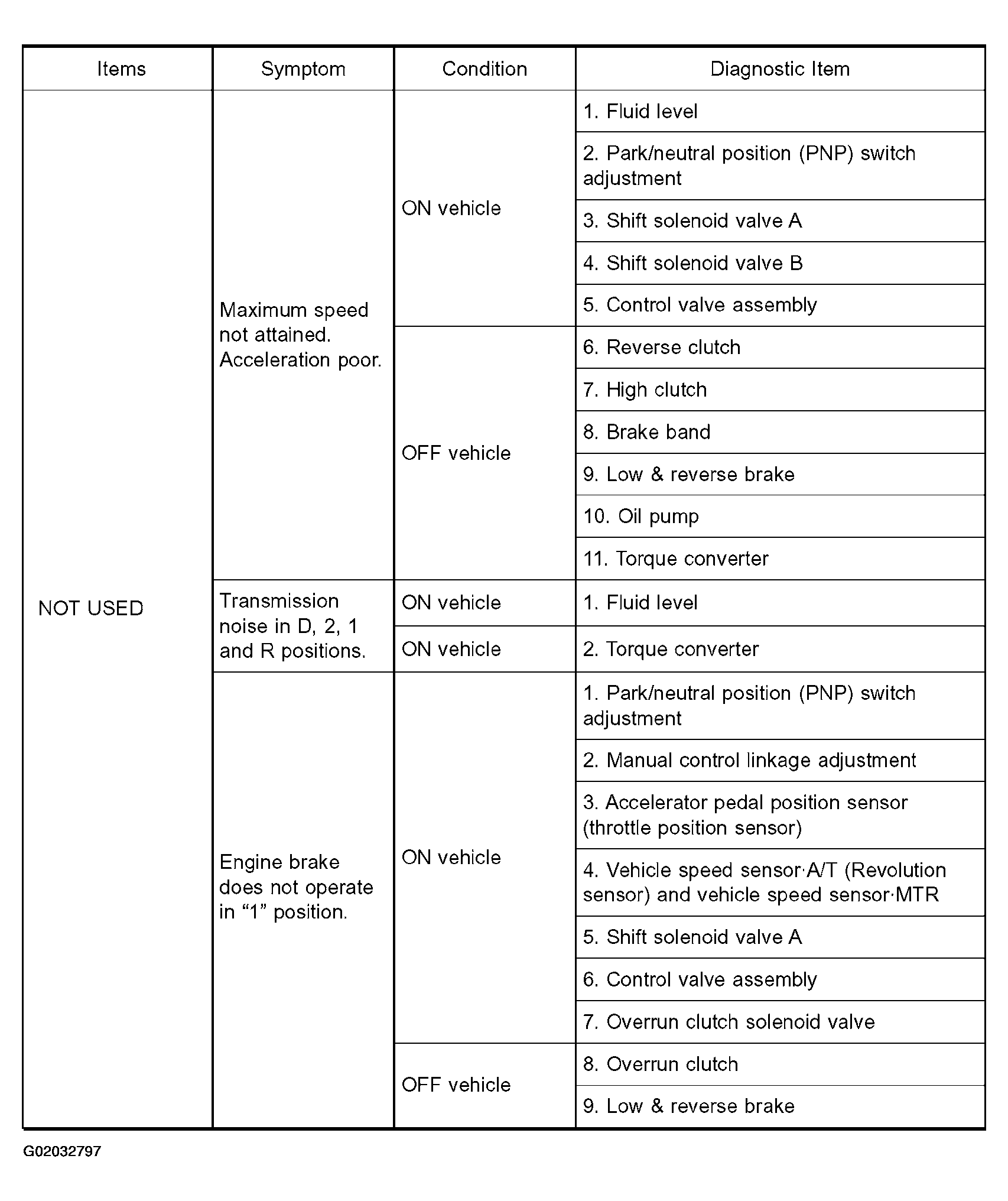

Fig 11: Trouble Diagnosis Symptom Chart (11 Of 12)

G02032797

Courtesy of NISSAN MOTOR CO., U.S.A.

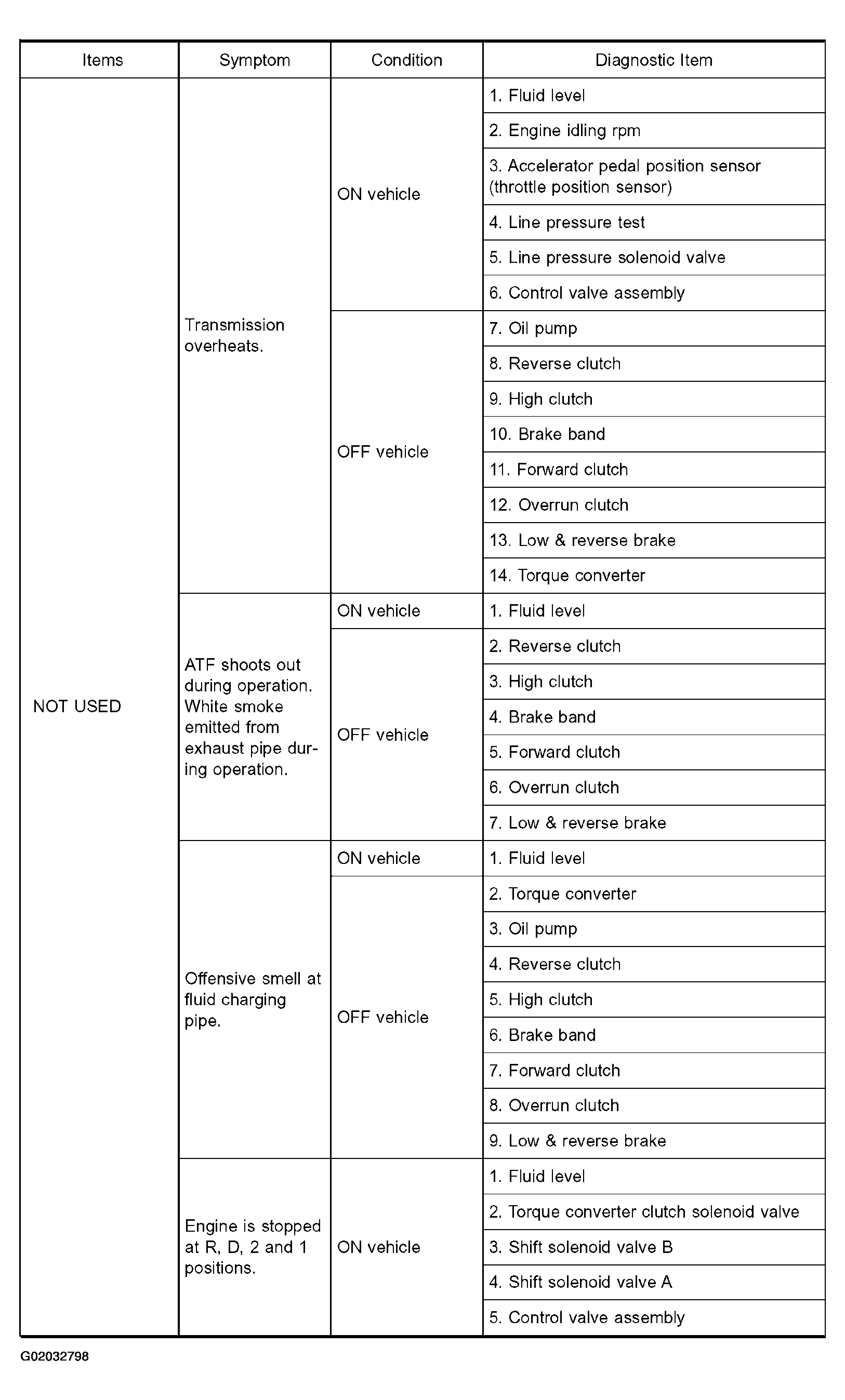

Fig 12: Trouble Diagnosis Symptom Chart (12 Of 12)

G02032798

Courtesy of NISSAN MOTOR CO., U.S.A.
