Stall Test Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
Drive vehicle for approx. 10 minutes or until fluid and oil reach operating temperature.
ATF operating temperature:

50 - 80°C (122 - 176°F)

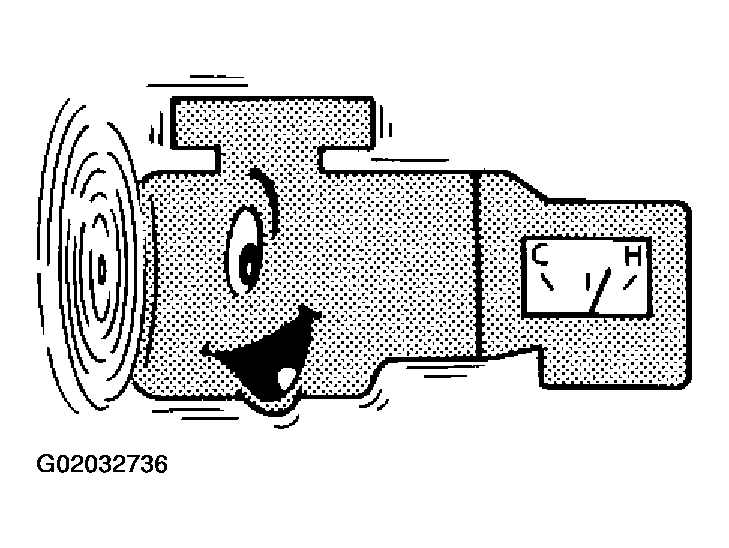

Fig 1: Identifying ATF Operating Temperature
Courtesy of NISSAN MOTOR CO., U.S.A.
Set parking brake and block wheels.
Install a tachometer where it can be seen by driver during test.
- It is good practice to put a mark on point of specified engine rpm on indicator.

  Fig 2: Pulling Parking Brake
  Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine, apply foot brake, and place selector lever in "D" position.
Accelerate to wide open throttle gradually while applying foot brake.
Quickly note the engine stall revolution and immediately release throttle.
- During test, never hold throttle wide open for more than 5 seconds.
  Stall revolution:

  Refer to " SERVICE DATA AND SPECIFICATIONS (SDS) " .

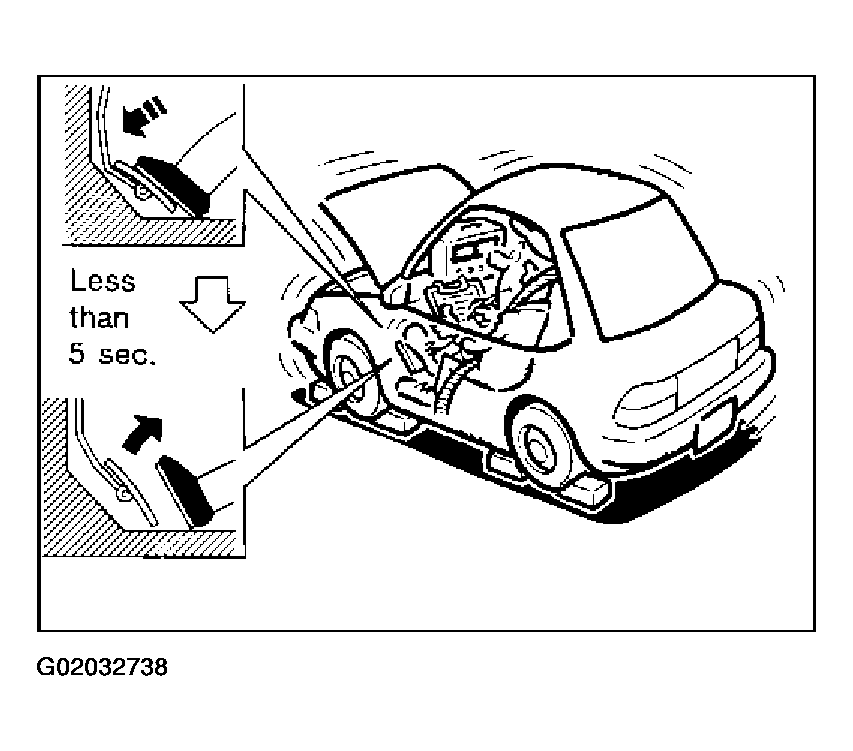

  Fig 3: Pressing Accelerator Pedal While Holding The Brake
  Courtesy of NISSAN MOTOR CO., U.S.A.
Move selector lever to "N" position.

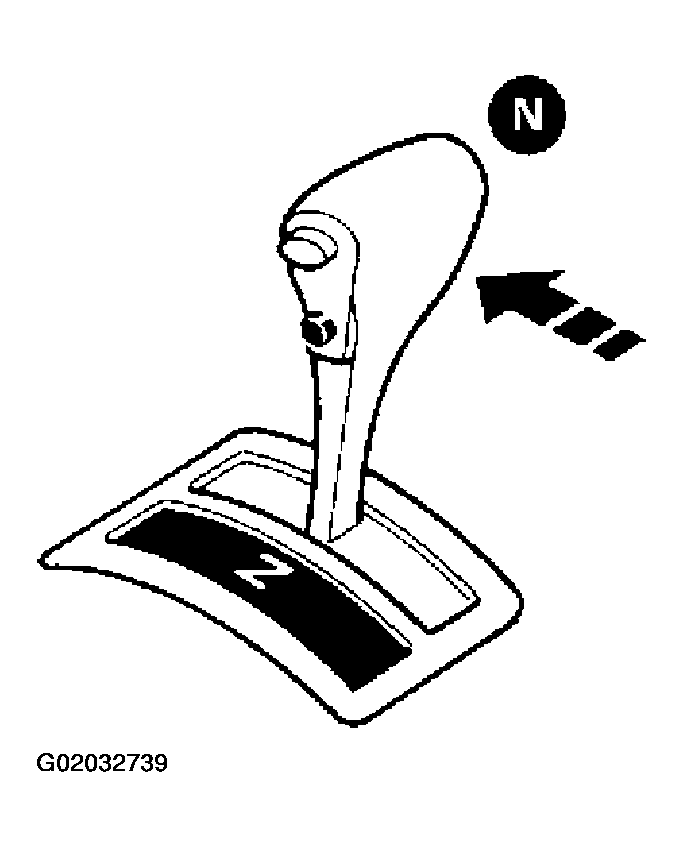

Fig 4: Moving Selector Lever To N Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Cool off ATF.
- Run engine at idle for at least one minute.
Repeat steps 5 through 9 with selector lever in "2", "1" and "R" positions.
