CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

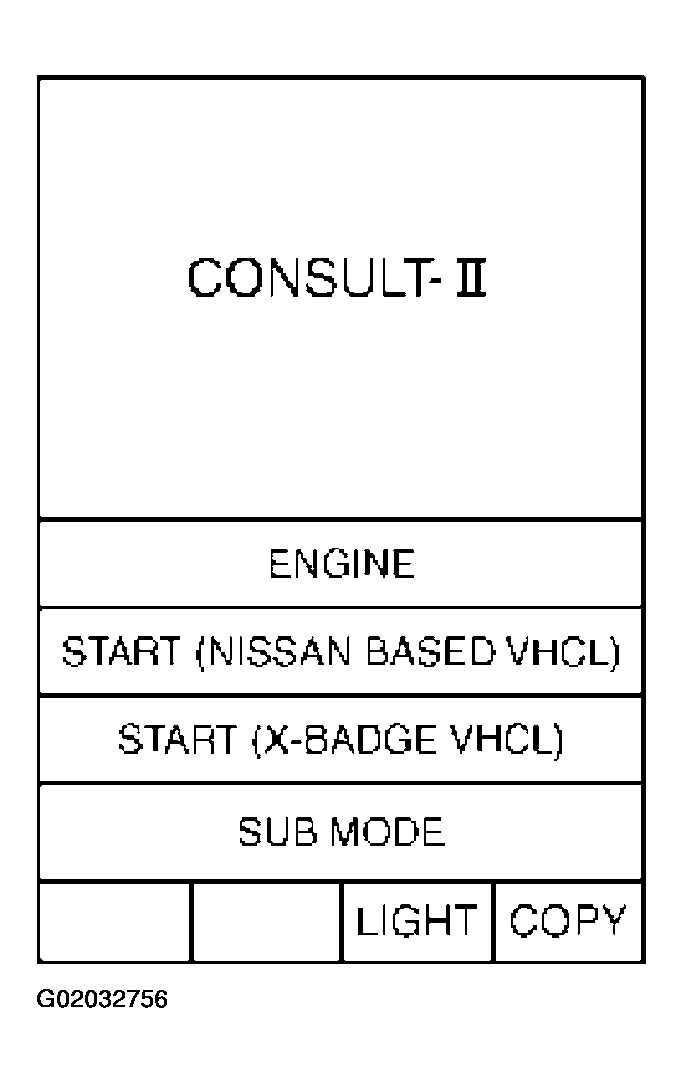

Fig 1: CONSULT-II (Touching Start)
Courtesy of NISSAN MOTOR CO., U.S.A.

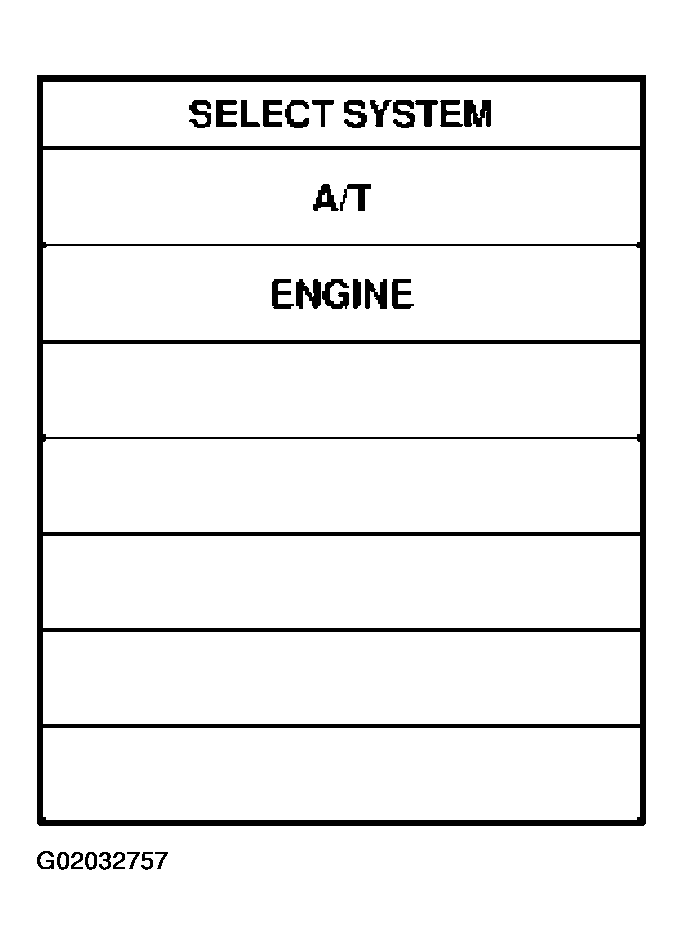

Touch "A/T".

Fig 2: CONSULT-II (Touch A/T)
Courtesy of NISSAN MOTOR CO., U.S.A.

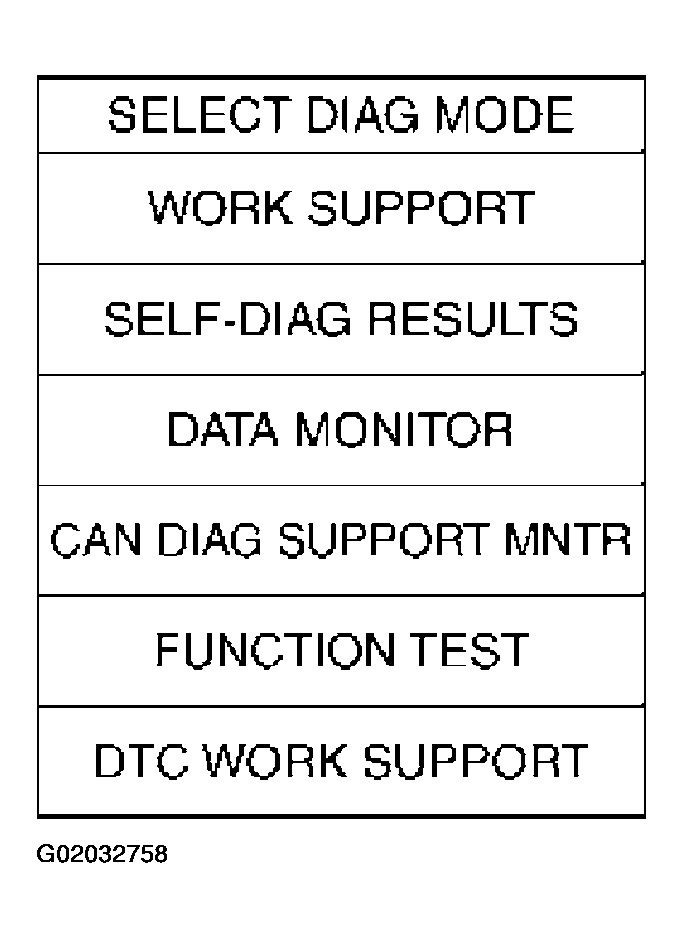

Touch "DATA MONITOR".

Fig 3: CONSULT-II (Touch Data Monitor)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".
See "Numerical Display", "Barchart Display" or "Line Graph Display".

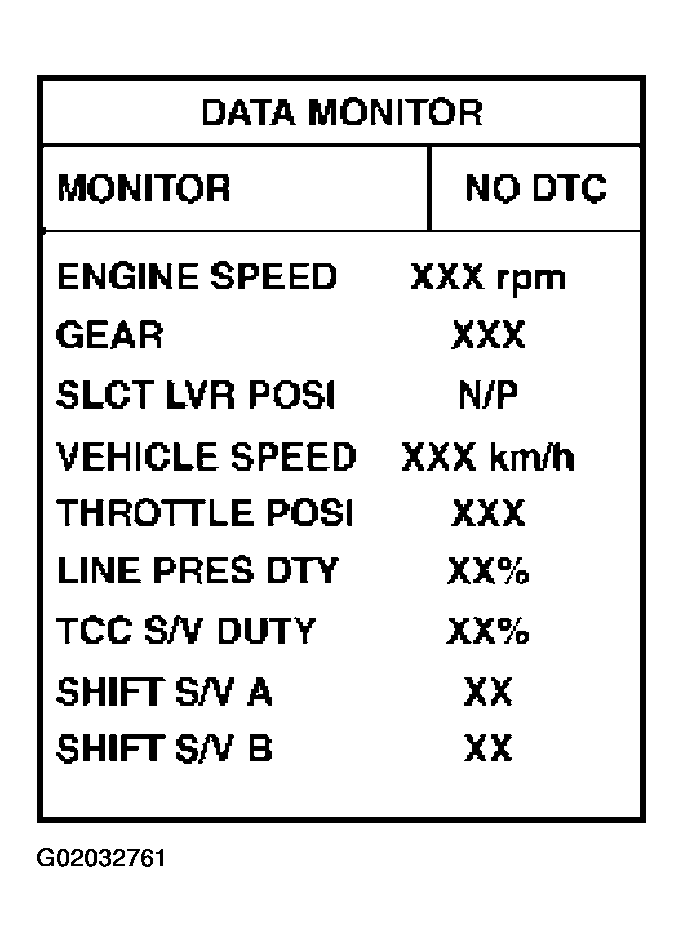

Fig 4: CONSULT-II (Main Signal Display)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" to set recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "Start".

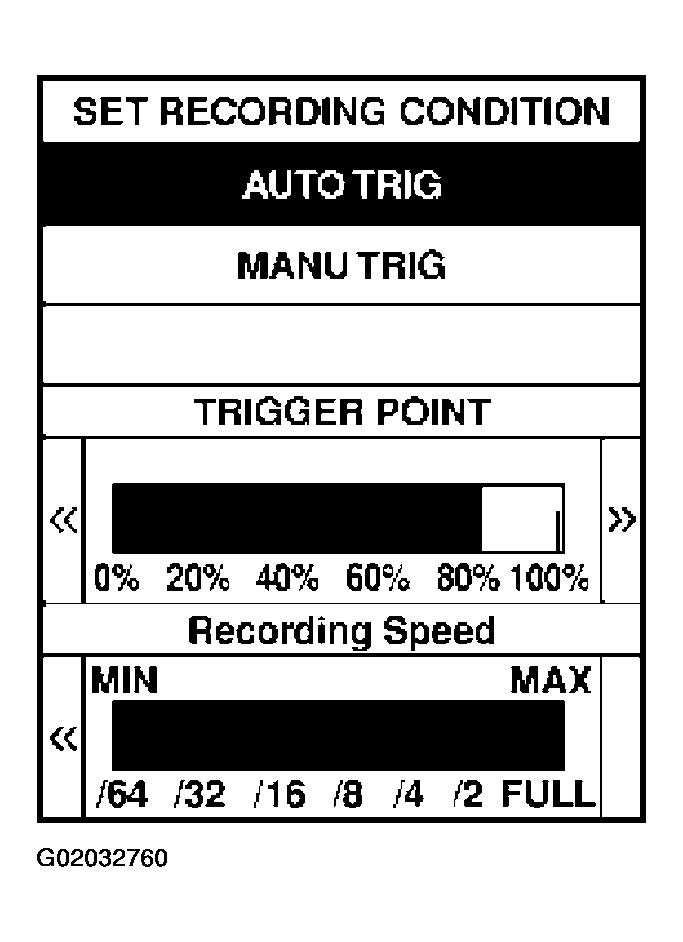

Fig 5: CONSULT-II (Auto Trig Or Manual Trig)
Courtesy of NISSAN MOTOR CO., U.S.A.
When performing cruise test, touch "RECORD".

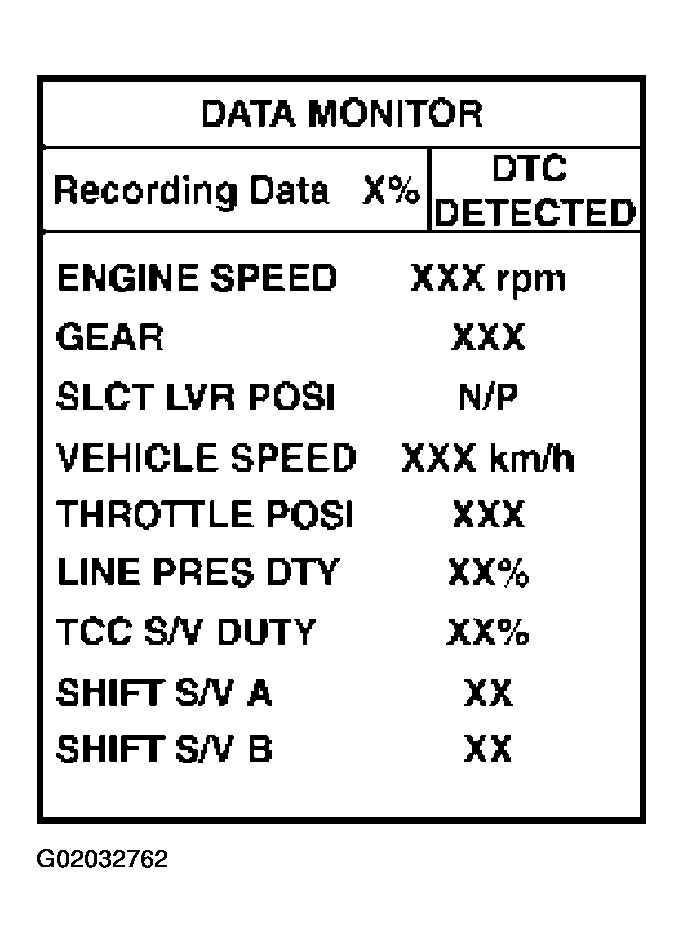

Fig 6: CONSULT-II (Performing Cruise Test, Touch Record)
Courtesy of NISSAN MOTOR CO., U.S.A.
After finishing cruise test part 1, touch "STOP".

Fig 7: CONSULT-II (Finishing Cruise Test Part 1, Touch Stop)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "STORE" and touch "BACK".

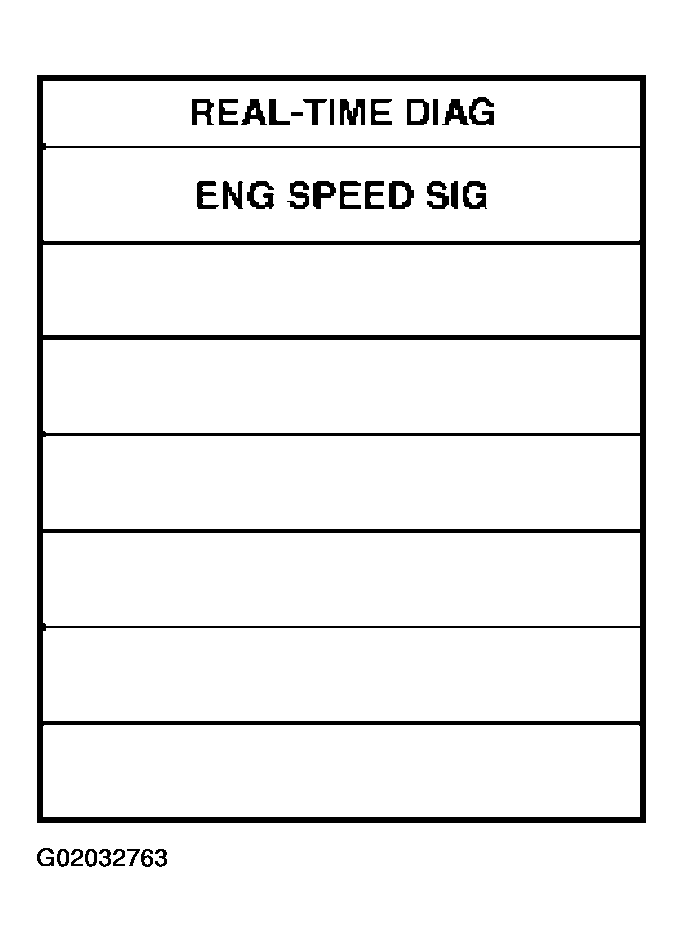

Fig 8: CONSULT-II (Engine Speed Sag Display)
Courtesy of NISSAN MOTOR CO., U.S.A.

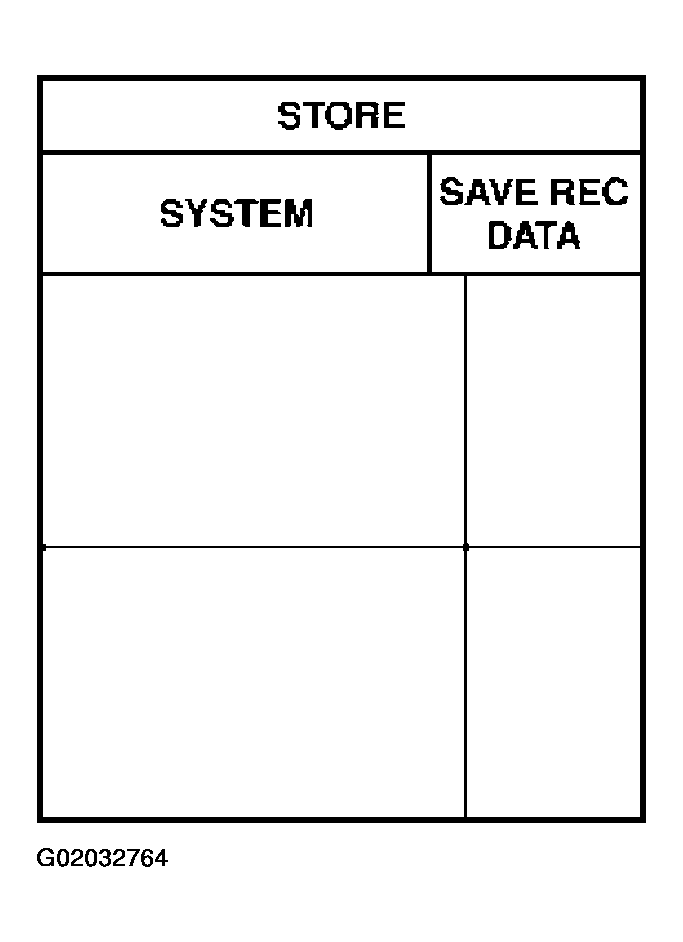

Fig 9: CONSULT-II (Store Display)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DISPLAY".
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.

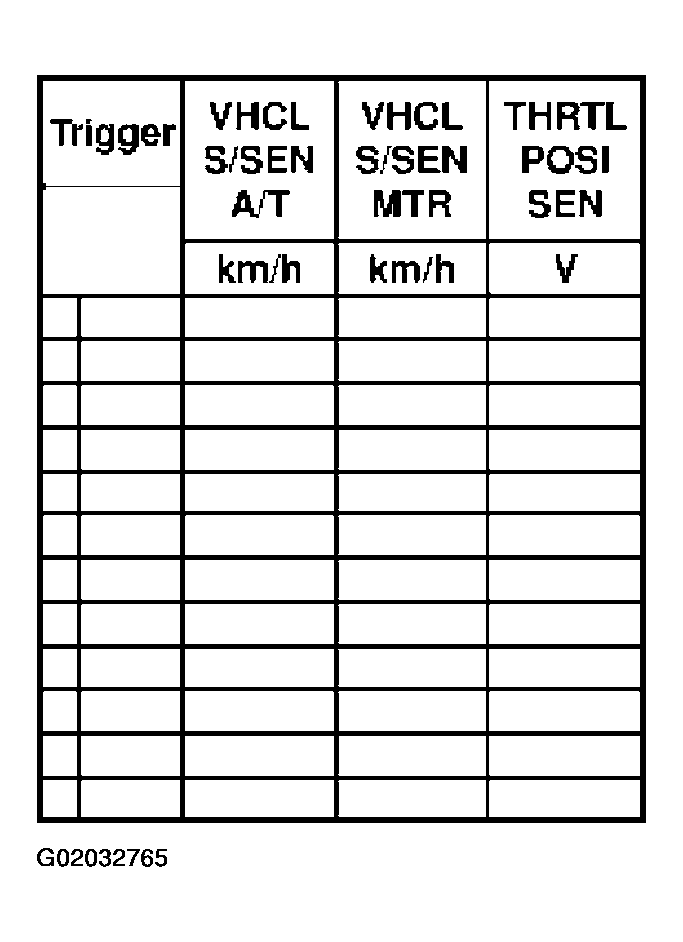

Fig 10: CONSULT-II (Trigger Display)
Courtesy of NISSAN MOTOR CO., U.S.A.
