Wiring Diagram - AT - NONDTC

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

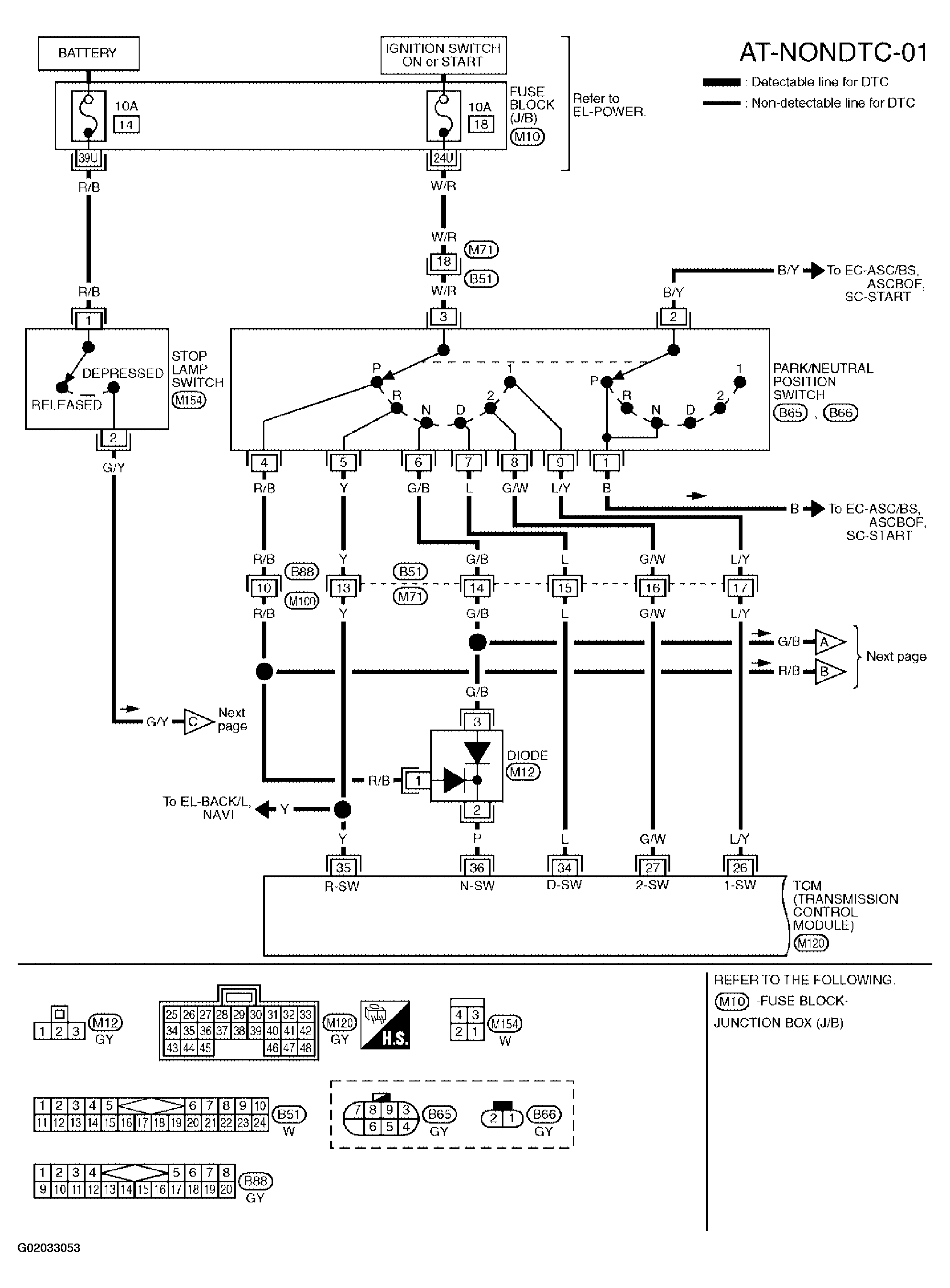

Fig 1: Wiring Diagram - AT - NONDTC (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

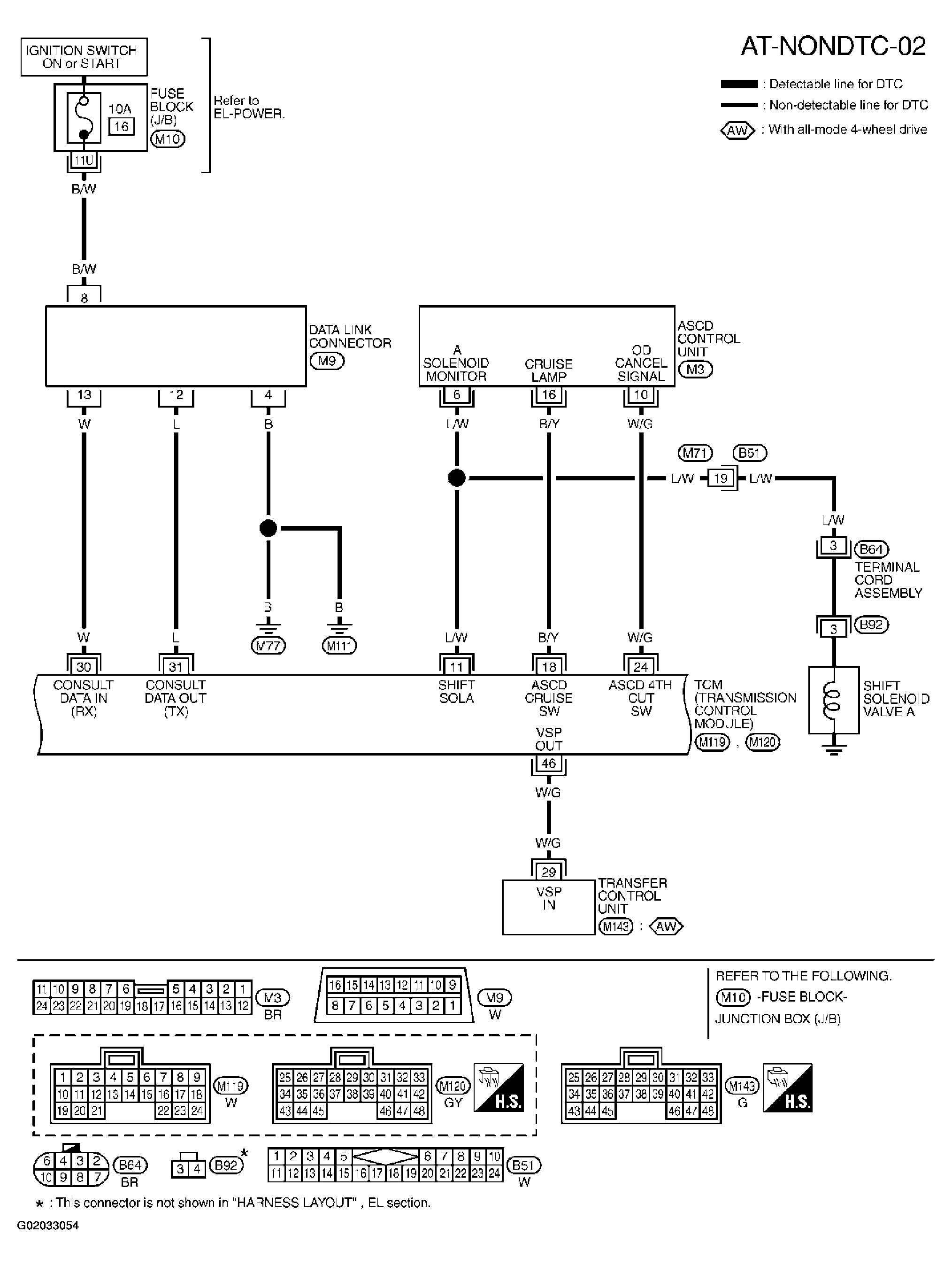

Fig 2: Wiring Diagram - AT - NONDTC (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

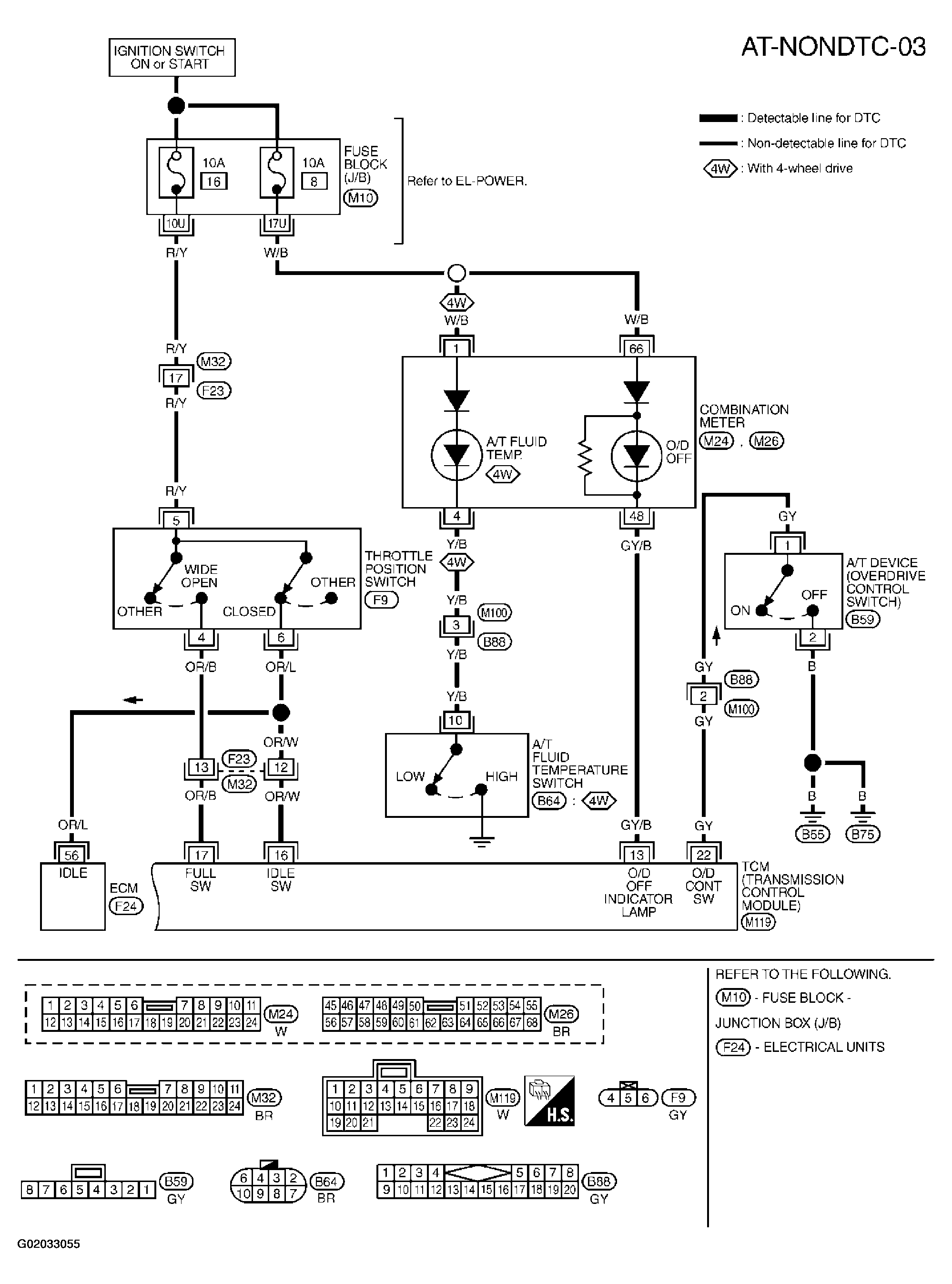

Fig 3: Wiring Diagram - AT - NONDTC (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
