A/T Fluid Temperature Switch

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure the A/T fluid warning lamp lights when the key is inserted and turned to "ON".
  2. Make sure the A/T fluid warning lamp goes off when turning the ignition switch to "ON".
  3. Check resistance between terminal 10 and ground while changing temperature as shown at left.

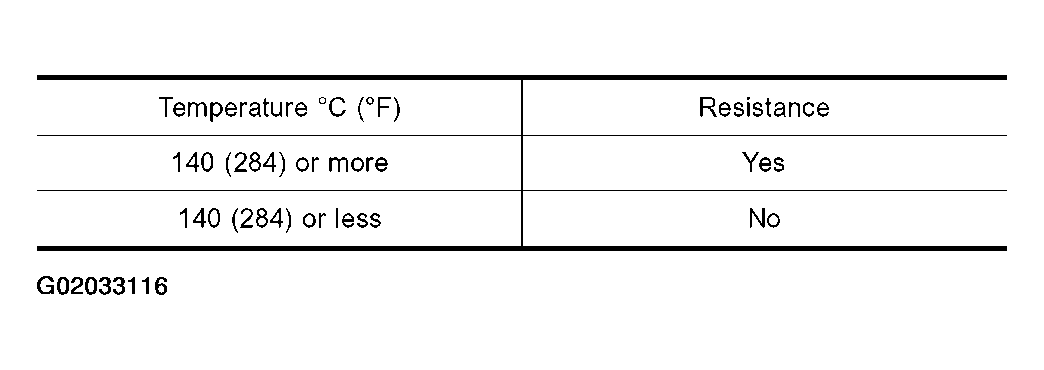

    Fig 1: Resistance Value Chart
    G02033116Courtesy of NISSAN MOTOR CO., U.S.A.

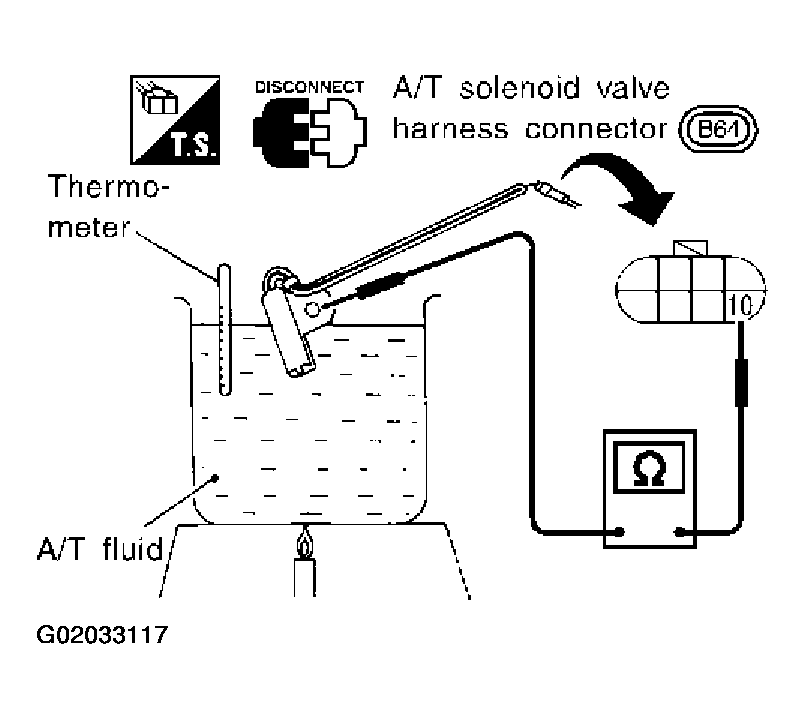

    Fig 2: Checking A/T Fluid Temperature Switch Resistance
    G02033117Courtesy of NISSAN MOTOR CO., U.S.A.
