Reverse Clutch Drive Plates

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check facing for burns, cracks or damage.
Measure thickness of facing.
Thickness of drive plate:

Standard value: 1.90 - 2.05 mm (0.0748 - 0.0807 in) Wear limit: 1.80 mm (0.0709 in)
If not within wear limit, replace.

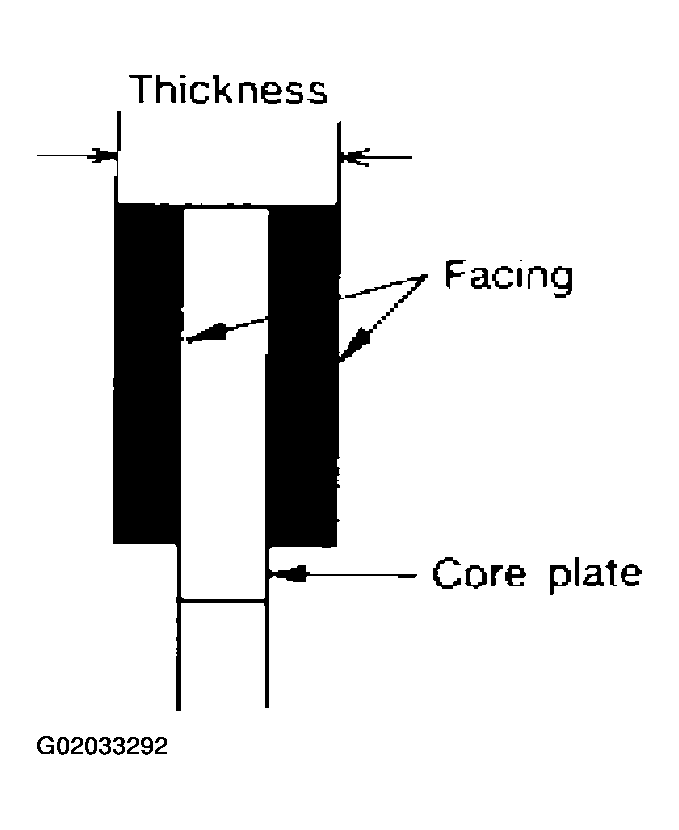

Fig 1: Measuring Thickness Of Reverse Clutch Drive Plates Facing
Courtesy of NISSAN MOTOR CO., U.S.A.
