Reverse Clutch: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install D-ring and oil seal on piston.
- Apply ATF to both parts.

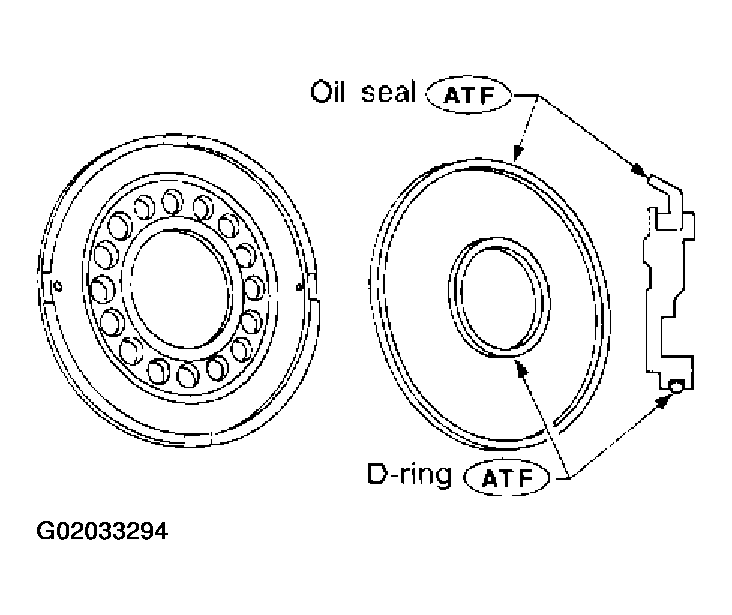

  Fig 1: Installing D-Ring And Oil Seal On Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston assembly by turning it slowly and evenly.
- Apply ATF to inner surface of drum.

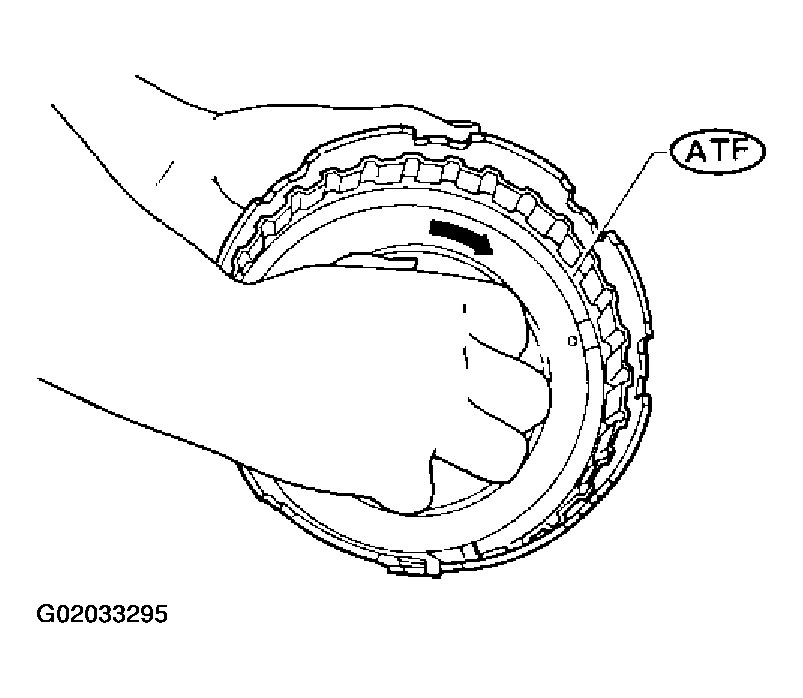

Fig 2: Installing Piston Assembly By Turning It Slowly And Evenly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install spring retainer.
Install snap ring while compressing clutch springs.

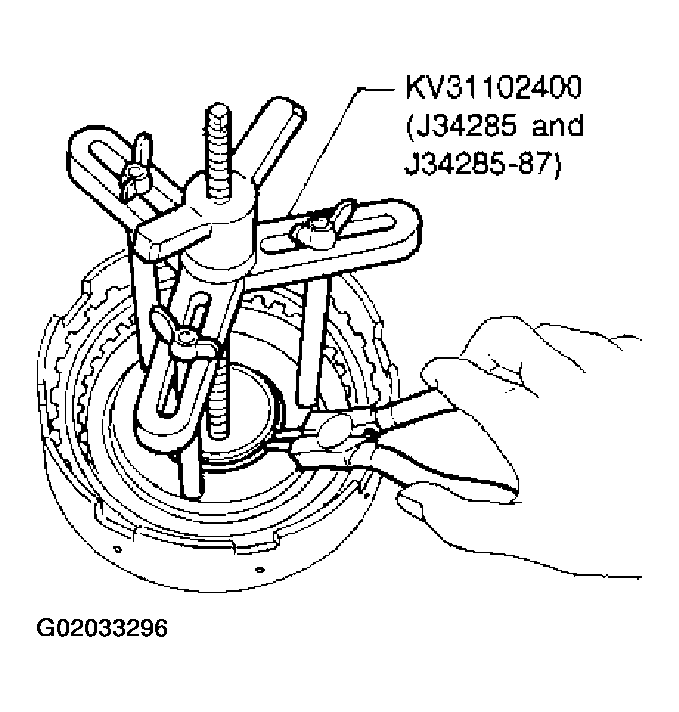

Fig 3: Installing Snap Ring While Compressing Clutch Springs
Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not align snap ring gap with spring retainer stopper.

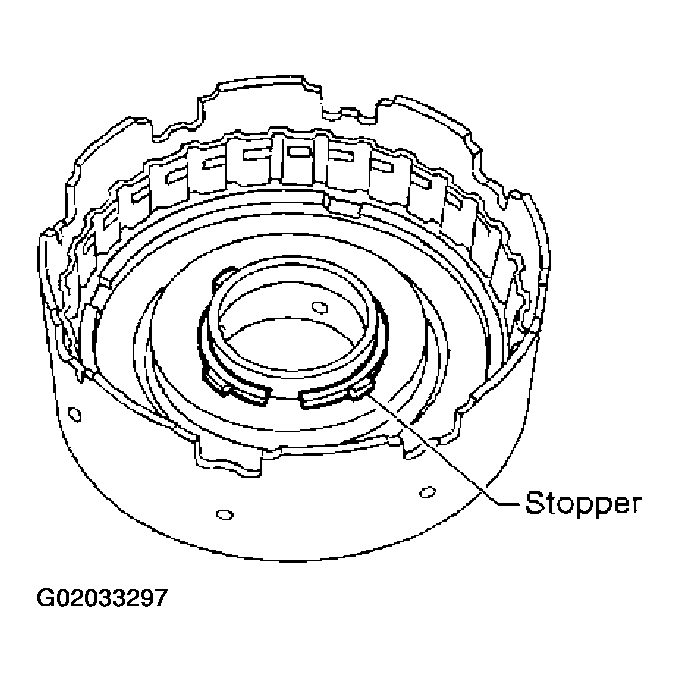

  Fig 4: Locating Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate.
Install snap ring.

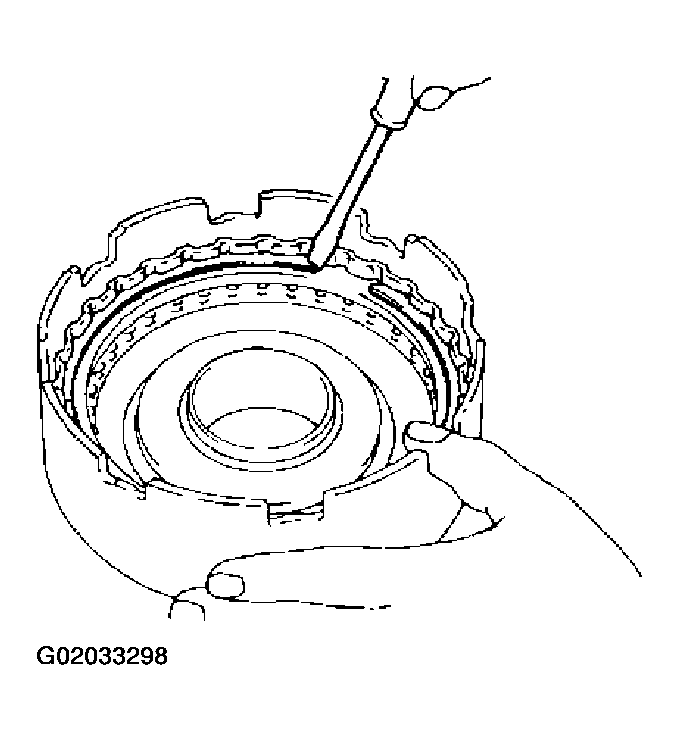

Fig 5: Installing Dish Plate, Drive Plates, Driven Plates, Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
Specified clearance: Standard

0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit 1.2 mm (0.047 in)

Retaining plate: Refer to SDS, ACCUMULATOR O-RING .

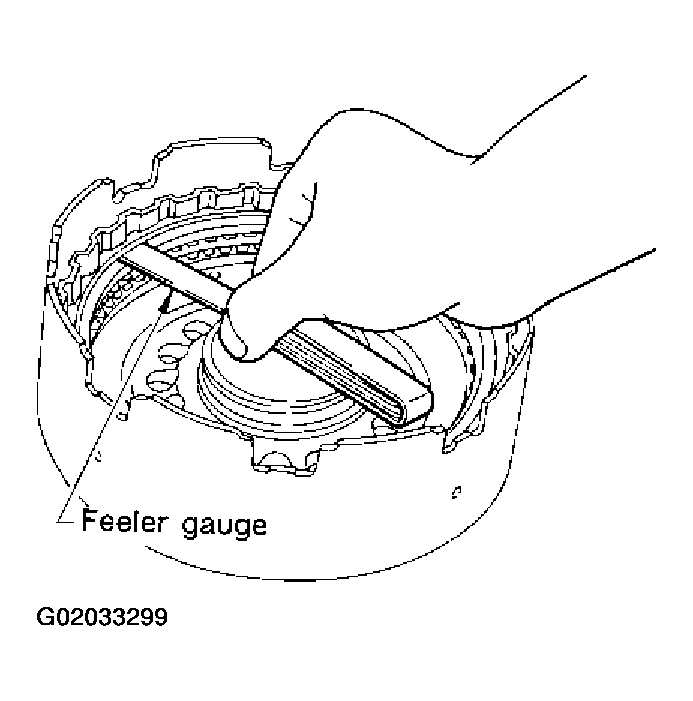

Fig 6: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of reverse clutch.
Refer to "DISASSEMBLY" of REVERSE CLUTCH .

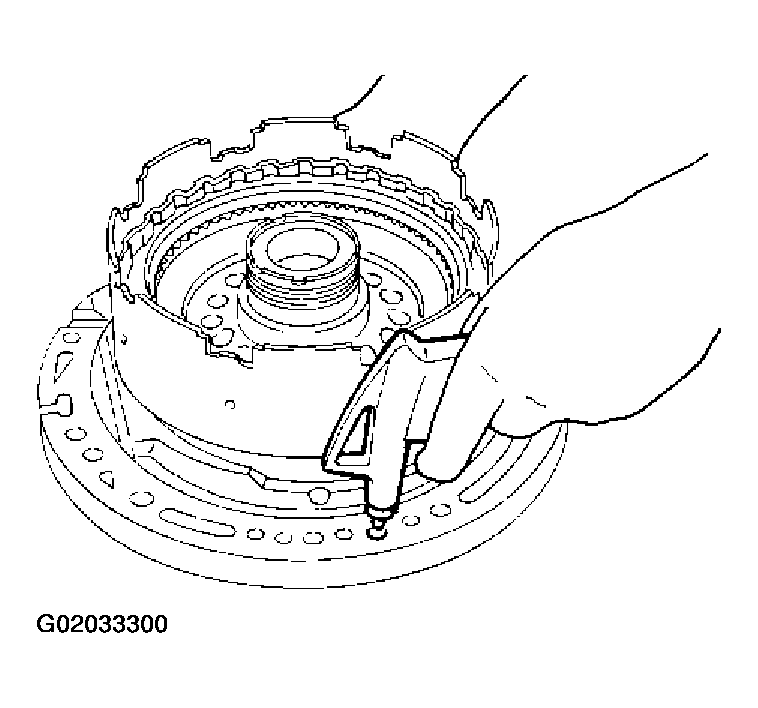

Fig 7: Checking Operation Of Reverse Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
