Rear Internal Gear and Forward Clutch Hub: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear internal gear by pushing forward clutch hub forward.

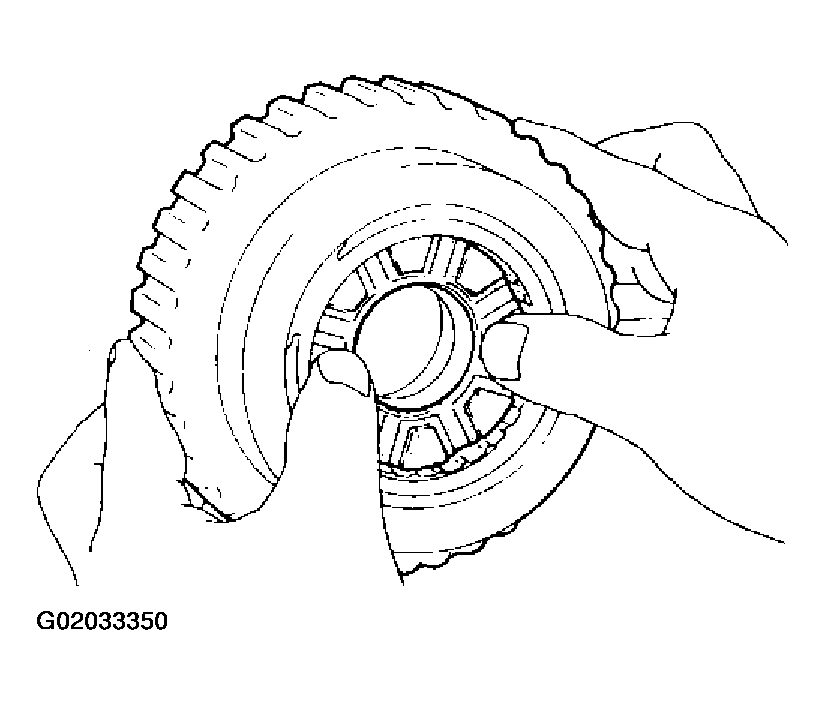

Fig 1: Removing Rear Internal Gear By Pushing Forward Clutch Hub Forward
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove thrust washer from rear internal gear.

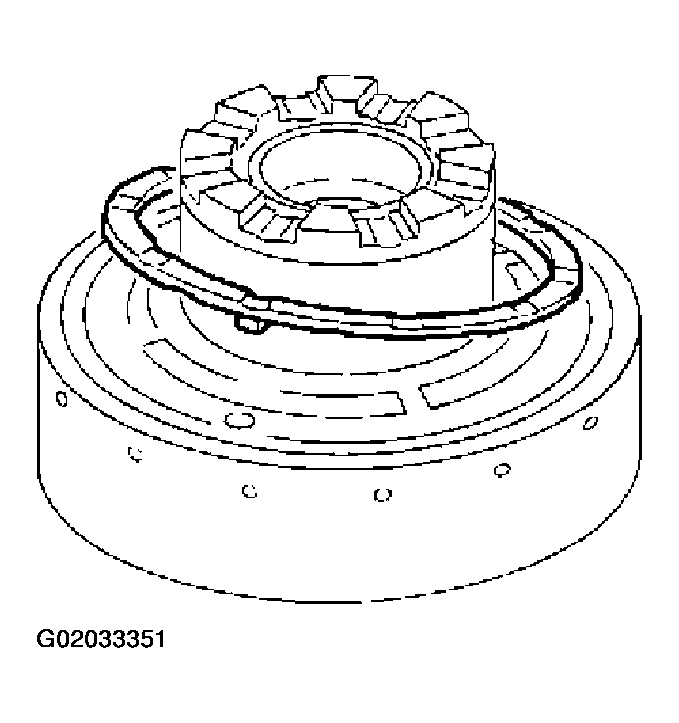

Fig 2: Removing Thrust Washer From Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring from forward clutch hub.

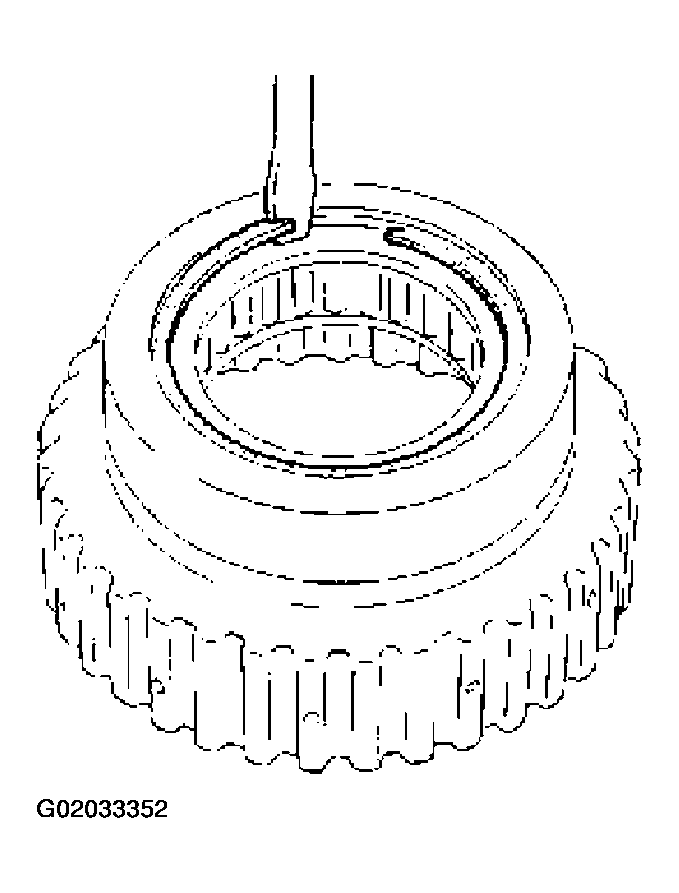

Fig 3: Removing Snap Ring From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove end bearing.

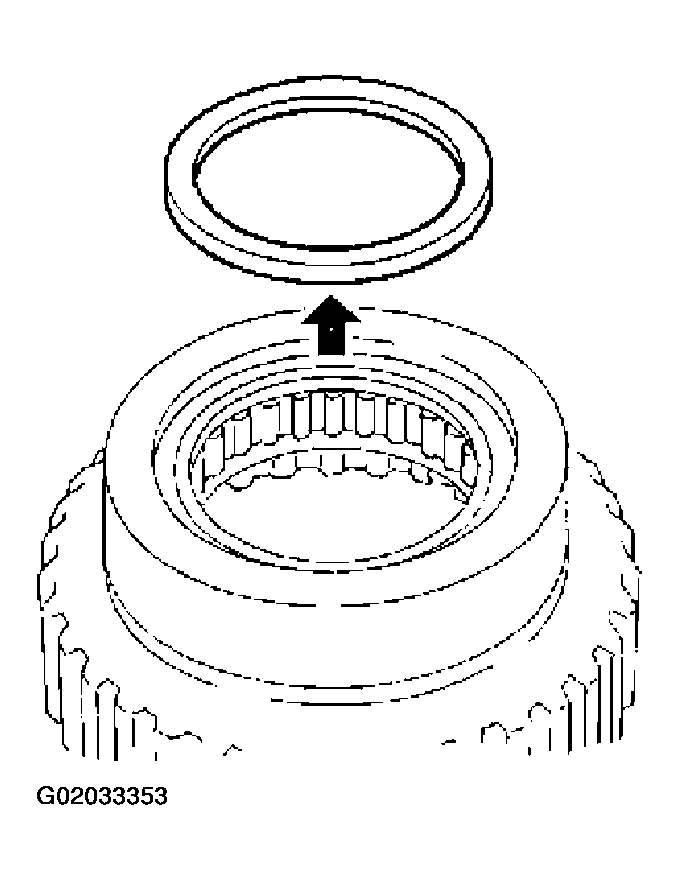

Fig 4: Removing End Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove forward one-way clutch and end bearing as a unit from forward clutch hub.

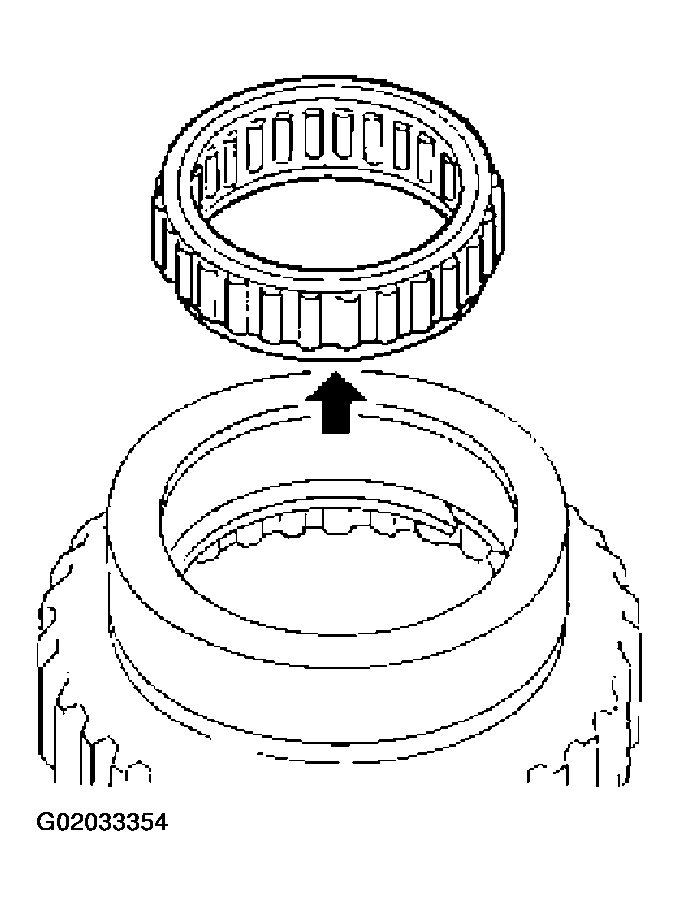

Fig 5: Removing Forward One-Way Clutch And End Bearing As A Unit From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring from forward clutch hub.

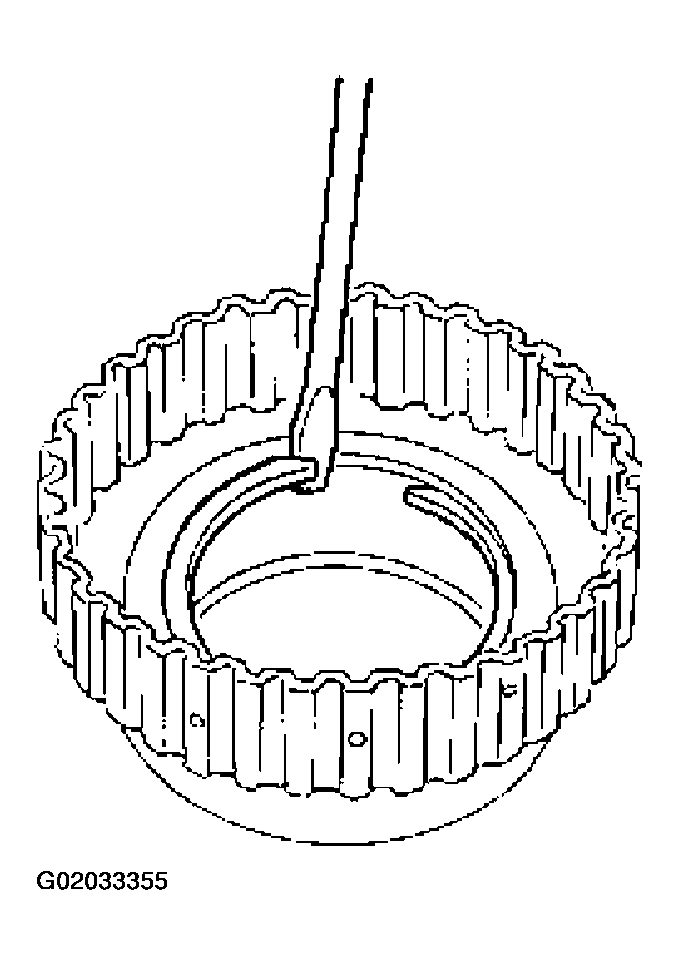

Fig 6: Removing Snap Ring From Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
