Rear Internal Gear and Forward Clutch Hub: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install snap ring onto forward clutch hub.
Install end bearing.

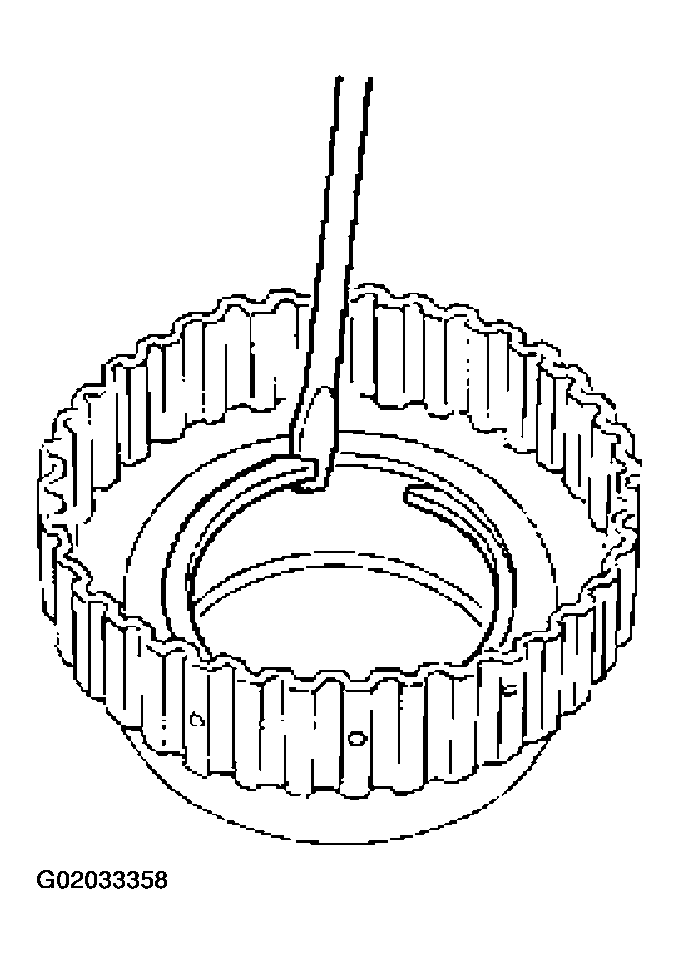

Fig 1: Install Snap Ring Onto Forward Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Install forward one-way clutch onto clutch hub.
- Install forward one-way clutch with flange facing rearward.
Install end bearing.
Install snap ring onto forward clutch hub.

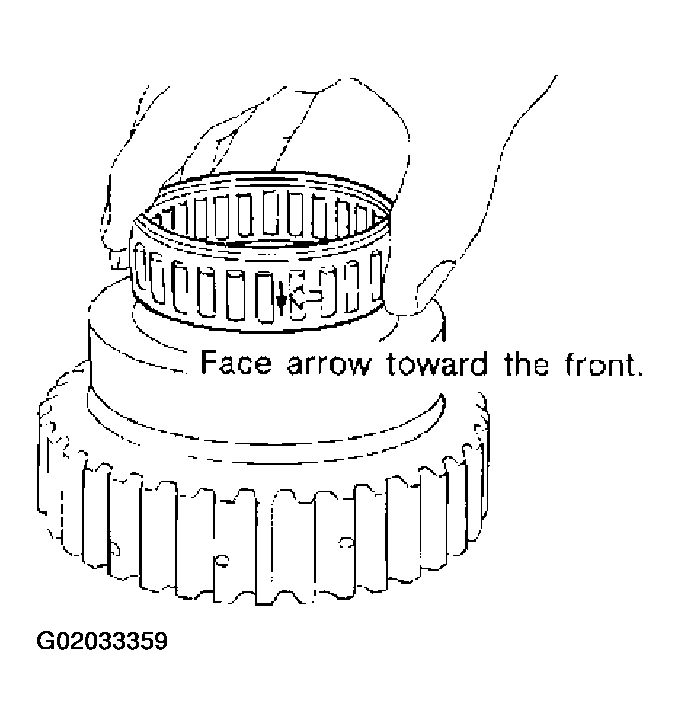

Fig 2: Installing Forward One-Way Clutch With Flange Facing Rearward
Courtesy of NISSAN MOTOR CO., U.S.A.
Install thrust washer onto rear internal gear.
- Apply petroleum jelly to thrust washer.
- Securely insert pawls of thrust washer into holes in rear internal gear.

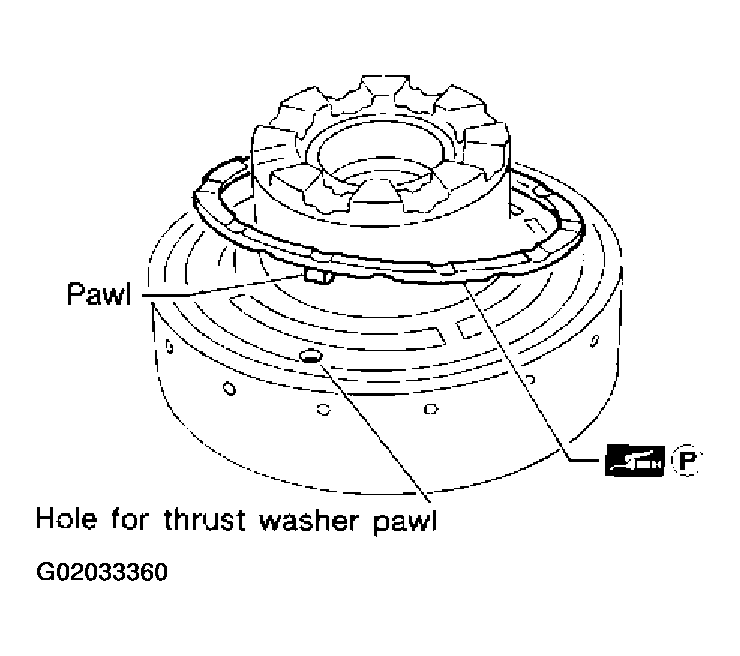

  Fig 3: Installing Thrust Washer Onto Rear Internal Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
Position forward clutch hub in rear internal gear.

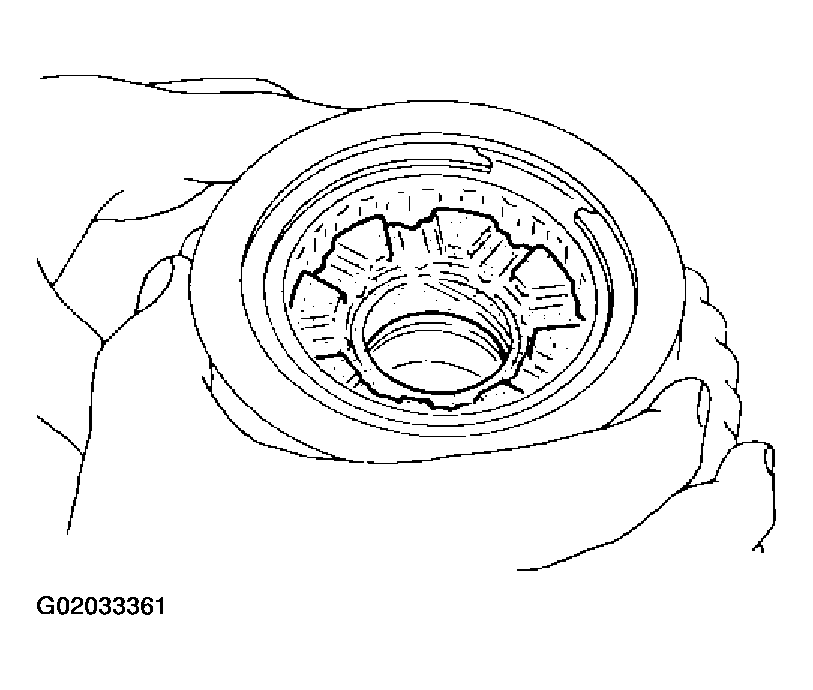

Fig 4: Positioning Forward Clutch Hub In Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
After installing, check to assure that forward clutch hub rotates clockwise.

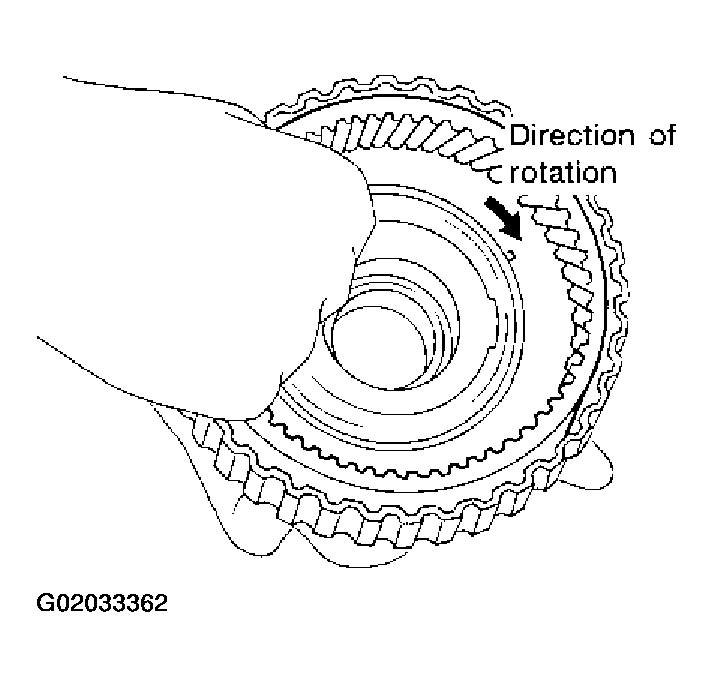

Fig 5: Checking To Assure That Forward Clutch Hub Rotates Clockwise
Courtesy of NISSAN MOTOR CO., U.S.A.
