Parking Pawl Components: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Slide return spring to the front of adapter case flange.
Remove return spring, parking pawl spacer and parking pawl from adapter case.

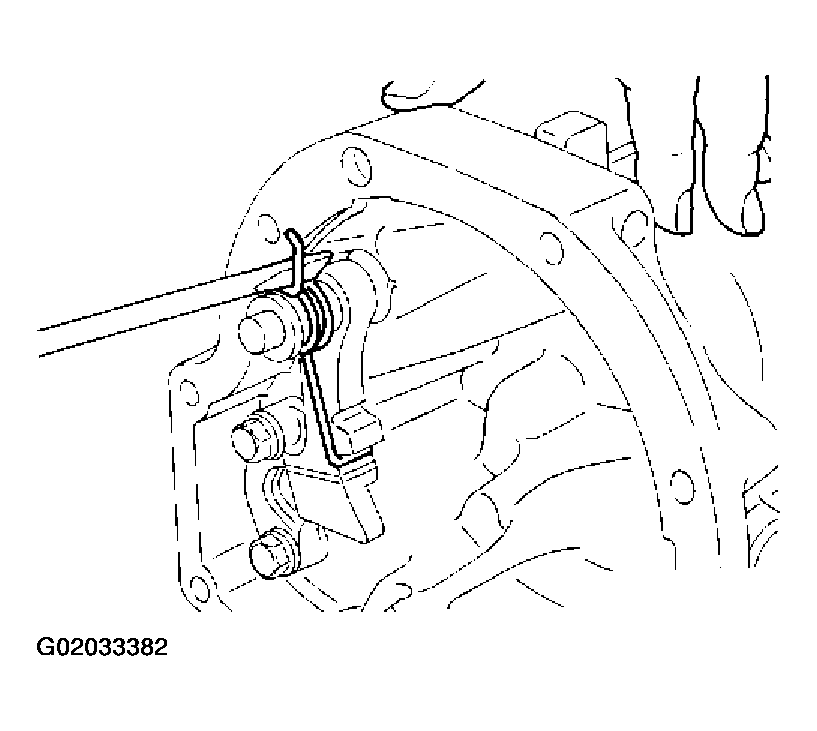

Fig 1: Removing Return Spring, Parking Pawl Spacer And Parking Pawl From Adapter Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking pawl shaft from adapter case.
Remove parking actuator support from adapter case.

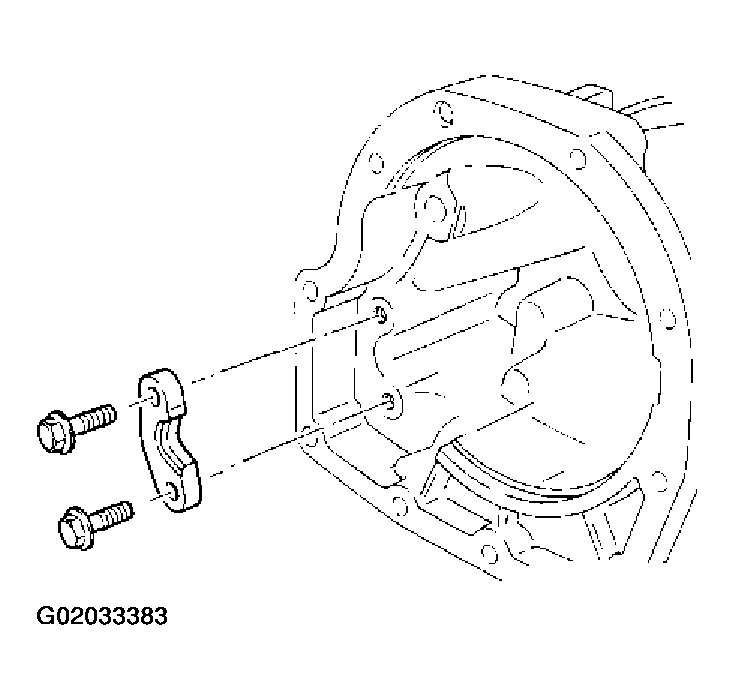

Fig 2: Removing Parking Actuator Support From Adapter Case
Courtesy of NISSAN MOTOR CO., U.S.A.
