Parking Pawl Components: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

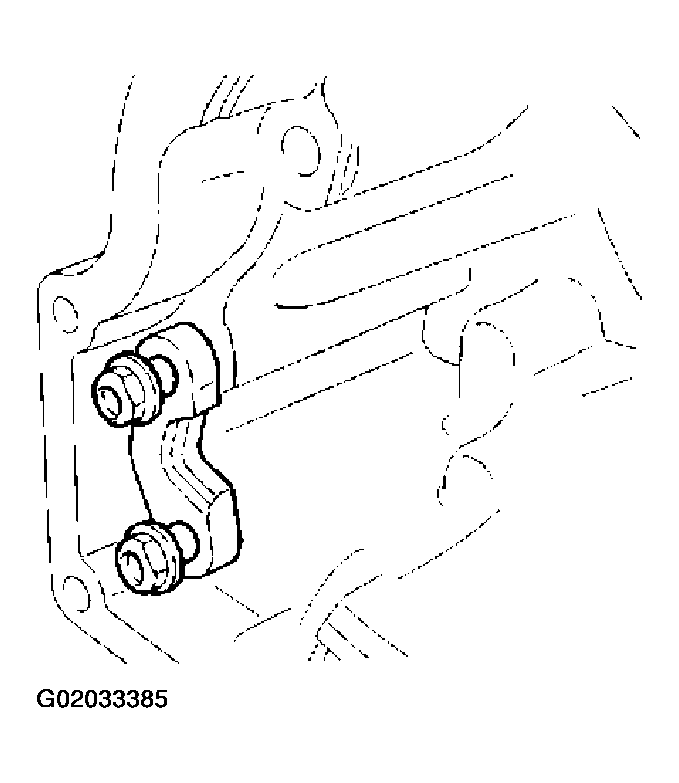

Install parking actuator support onto adapter case.
Insert parking pawl shaft into adapter case.
Install return spring, pawl spacer and parking pawl onto parking pawl shaft.

Fig 1: Installing Parking Actuator Support Onto Adapter Case
Courtesy of NISSAN MOTOR CO., U.S.A.

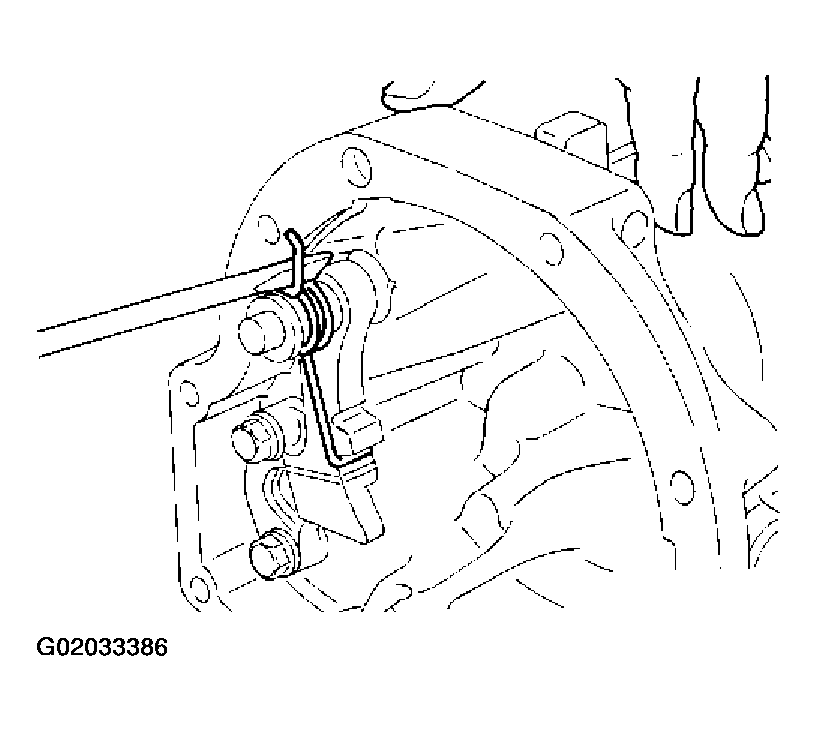

Bend return spring upward and install it onto adapter case.

Fig 2: Bending Return Spring Upward And Installing It Onto Adapter Case
Courtesy of NISSAN MOTOR CO., U.S.A.
