Low and Reverse Brake Drive Plates

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check facing for burns, cracks or damage.
Measure thickness of facing.
Thickness of drive plate: Standard value

Model 4EX16, 4EX79 (2WD)

1.90 - 2.05 mm (0.075 - 0.081 in)

Model 4EX17, 4EX23, 4EX80, 4EX81 (4WD)

1.52 - 1.67 mm (0.0598 - 0.0657 in)

Wear limit

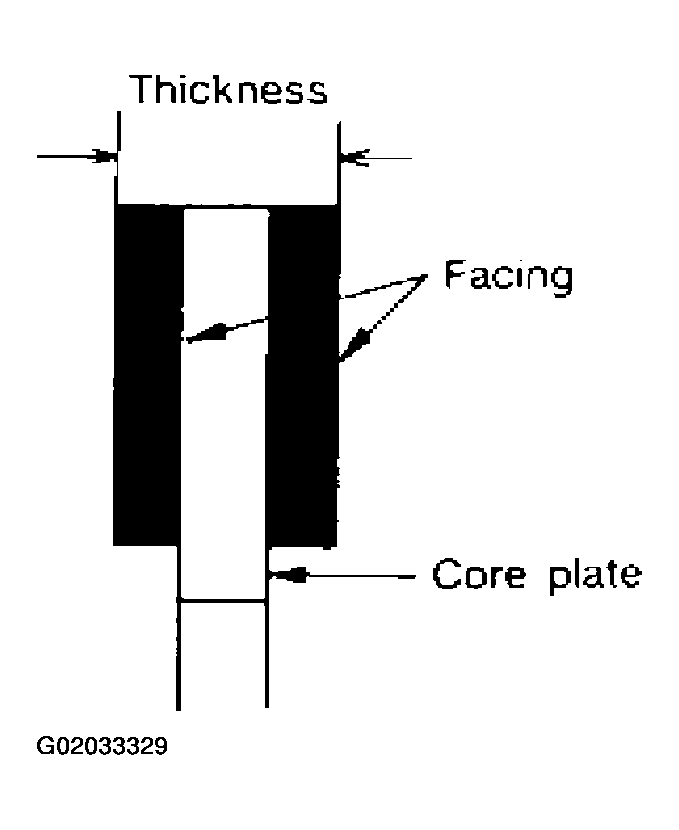

Fig 1: Measuring Thickness Of Facing
Courtesy of NISSAN MOTOR CO., U.S.A.

1.40 mm (0.0551 in)
If not within wear limit, replace.
