Low One-way Clutch Inner Race

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check frictional surface of inner race for wear or damage.

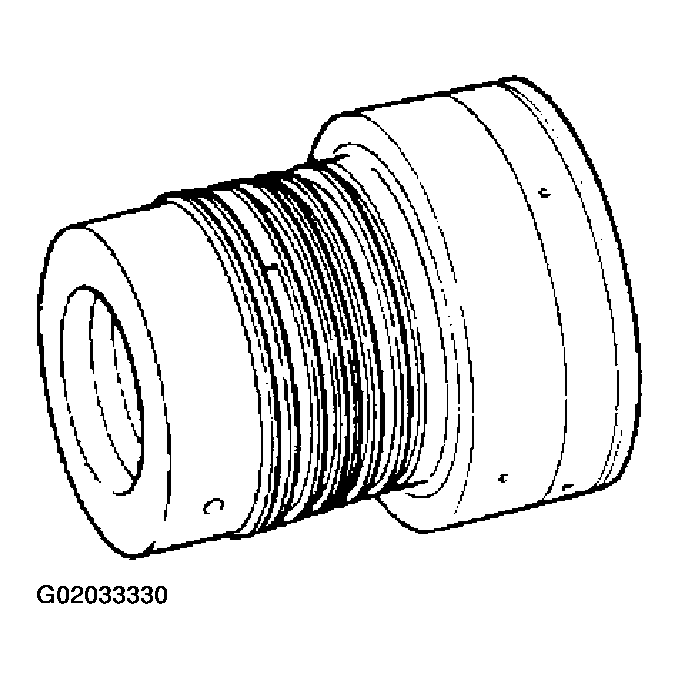

Fig 1: Checking Frictional Surface Of Inner Race For Wear Or Damage
Courtesy of NISSAN MOTOR CO., U.S.A.
Install a new seal rings onto low one-way clutch inner race.
Be careful not to expand seal ring gap excessively.
Measure seal ring-to-groove clearance.
Inspection standard:

Standard value: 0.10 - 0.25 mm (0.0039 - 0.0098 in)

Allowable limit: 0.25 mm (0.0098 in)
If not within allowable limit, replace low one-way clutch inner race.

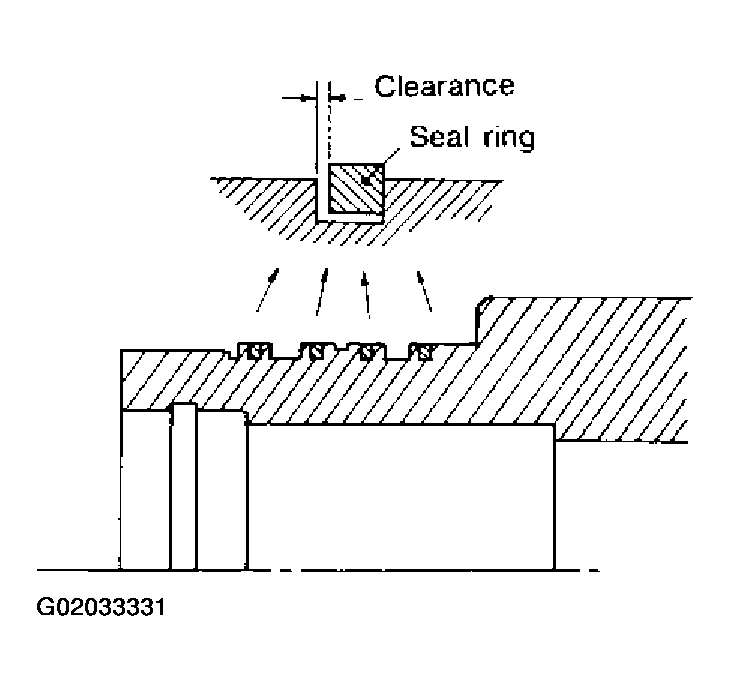

Fig 2: Measuring Seal Ring-To-Groove Clearance
Courtesy of NISSAN MOTOR CO., U.S.A.
