Low & Reverse Brake: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

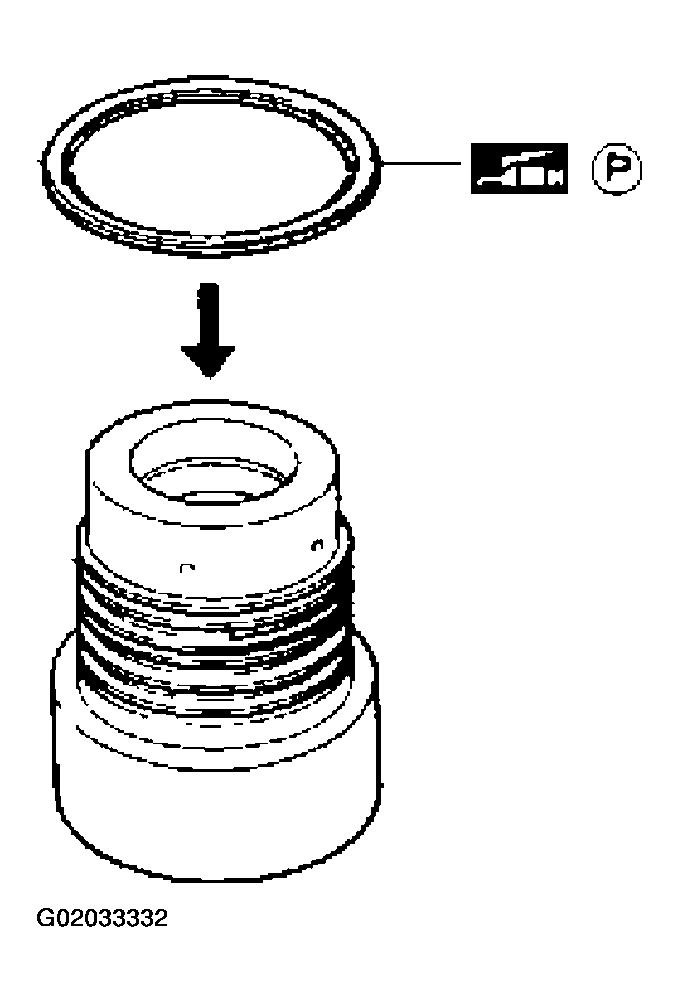

Install needle bearing onto one-way clutch inner race.
- Pay attention to its direction - Black surface goes to rear side.
- Apply petroleum jelly to needle bearing.

  Fig 1: Installing Needle Bearing Onto One-Way Clutch Inner Race
  Courtesy of NISSAN MOTOR CO., U.S.A.

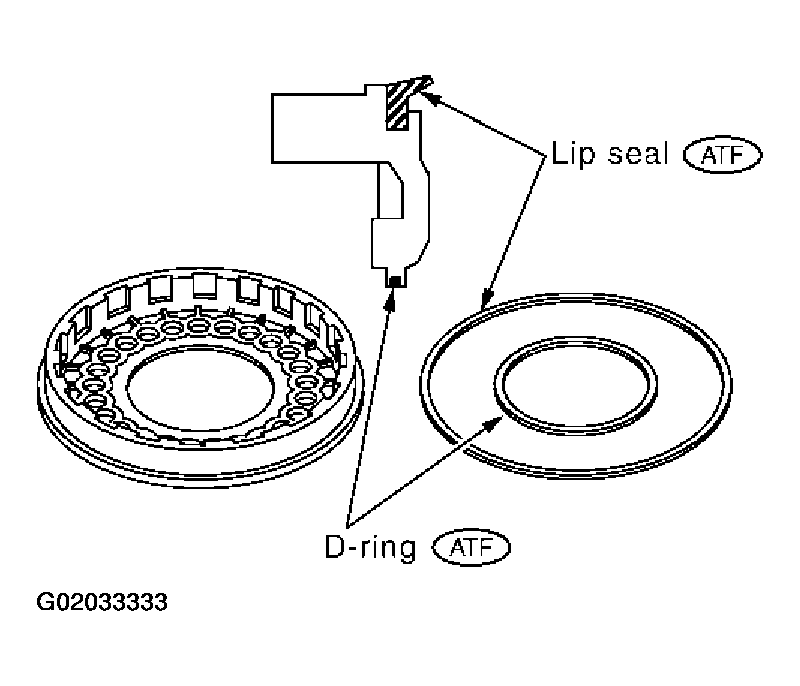

Install lip seal and D-ring onto piston.
- Apply ATF to oil seal and D-ring.

  Fig 2: Installing Lip Seal And D-Ring Onto Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.

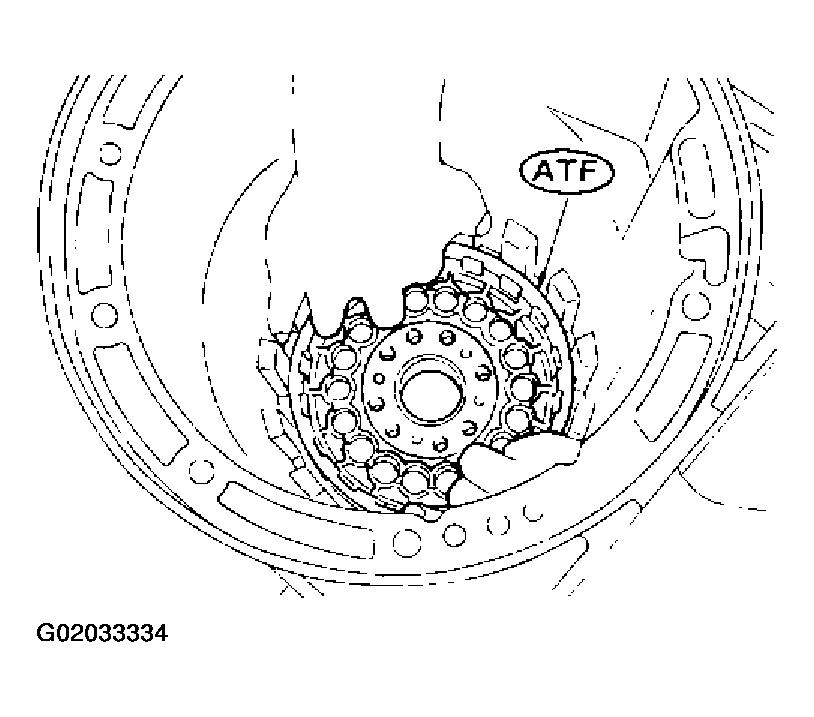

Install piston by rotating it slowly and evenly.
- Apply ATF to inner surface of transmission case.

  Fig 3: Applying ATF To Inner Surface Of Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

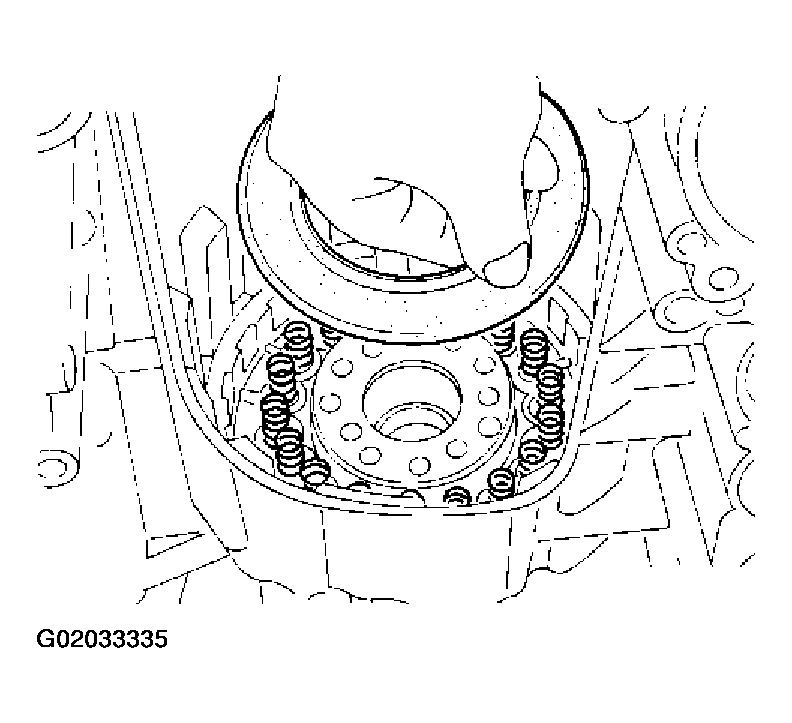

Install return springs, spring retainer and low one-way clutch inner race onto transmission case.

Fig 4: Installing Return Springs, Spring Retainer And Low One-Way Clutch Inner Race Onto Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.

Install dish plate, low and reverse brake drive plates, driven plates and U-spring, and then retaining plate.
Install snap ring on transmission case.

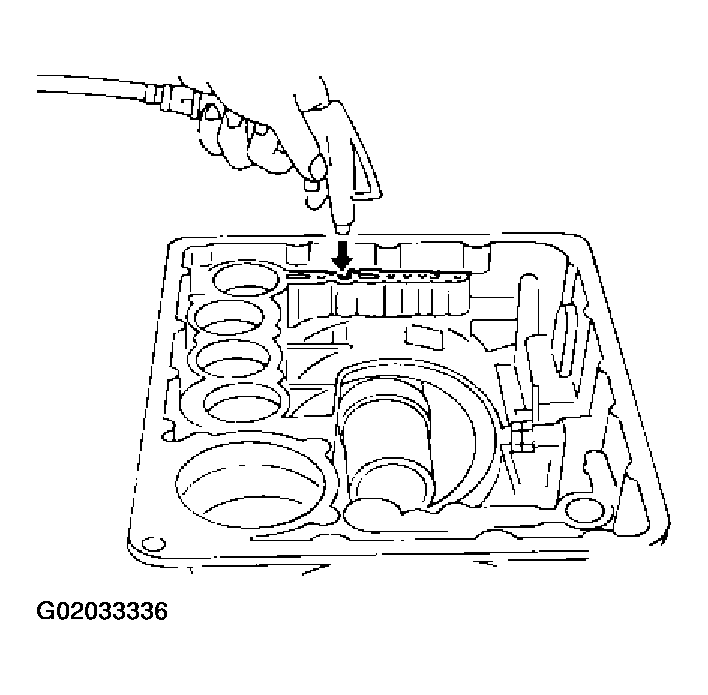

Check operation of low and reverse brake clutch piston. Refer to "DISASSEMBLY ".

Fig 5: Checking Operation Of Low And Reverse Brake Clutch Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

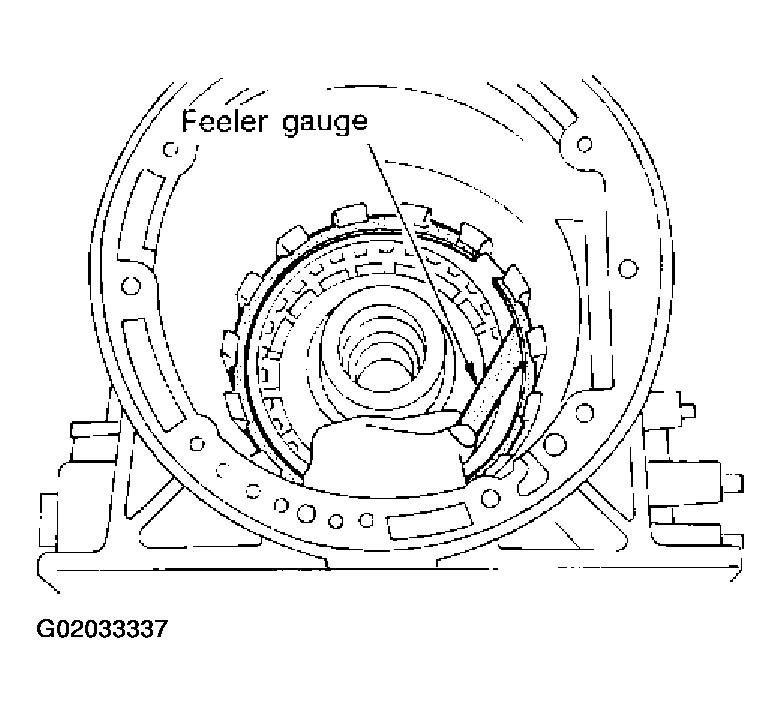

Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
Specified clearance: Standard

0.8 - 1.1 mm (0.031 - 0.043 in)

Allowable limit 2.7 mm (0.106 in)

Retaining plate: Refer to SDS, LOW & REVERSE BRAKE .

Fig 6: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

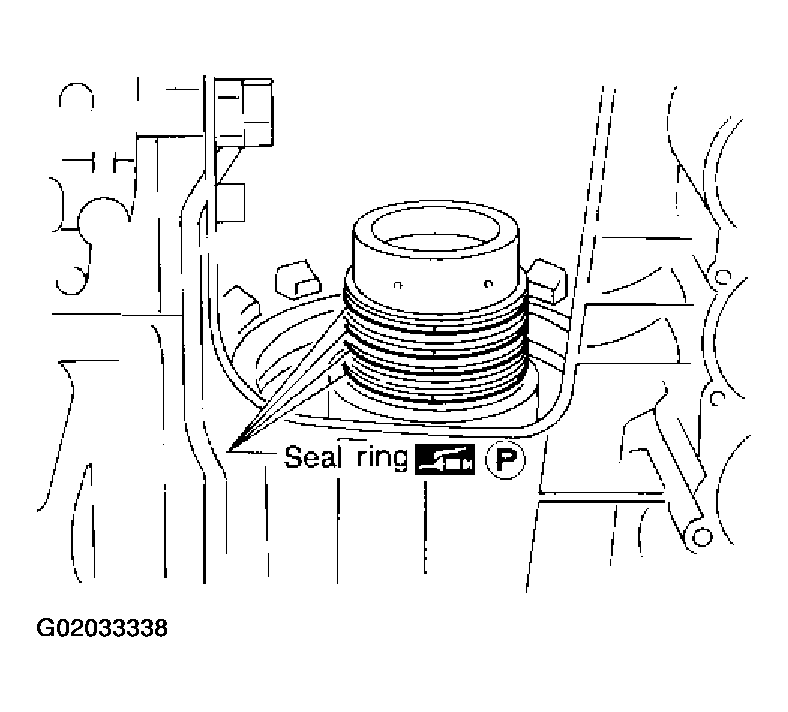

Install low one-way clutch inner race seal ring.
- Apply petroleum jelly to seal ring.
- Make sure seal rings are pressed firmly into place and held by petroleum jelly.

  Fig 7: Installing Low One-Way Clutch Inner Race Seal Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
