Disassembly And Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Service procedures for high clutch are essentially the same as those for reverse clutch, with the following exception:

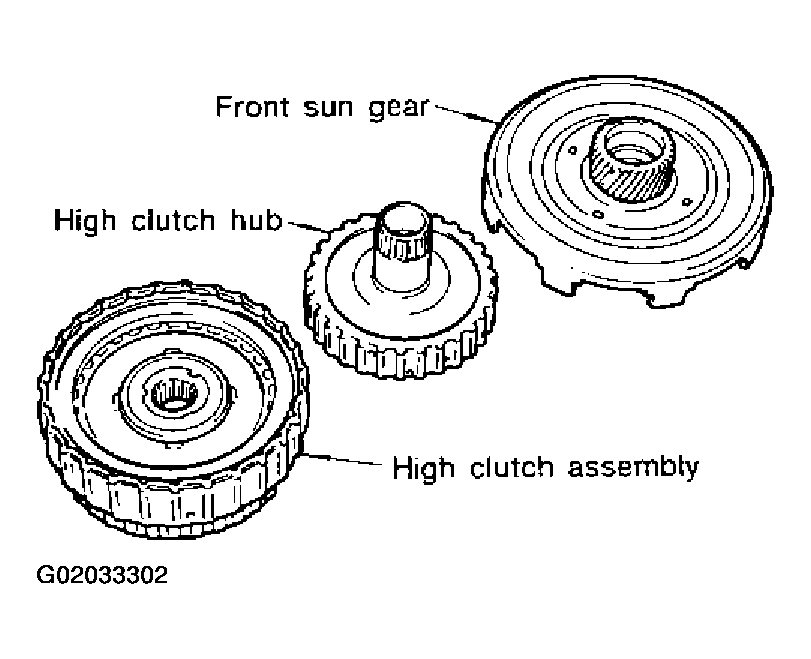

Fig 1: Identifying Front Sun Gear, High Clutch Hub And High Clutch Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

Check of high clutch operation

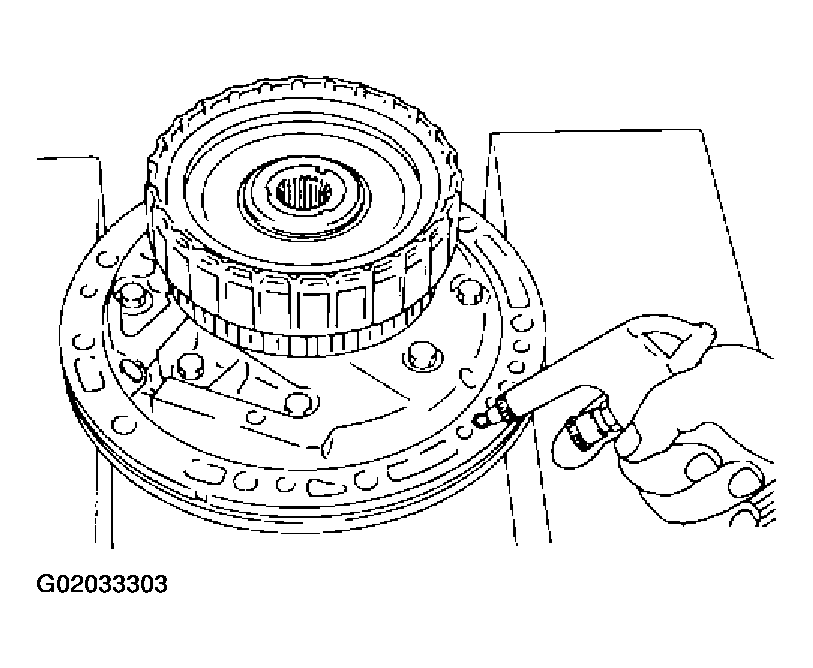

Fig 2: Checking High Clutch Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Removal and installation of return spring

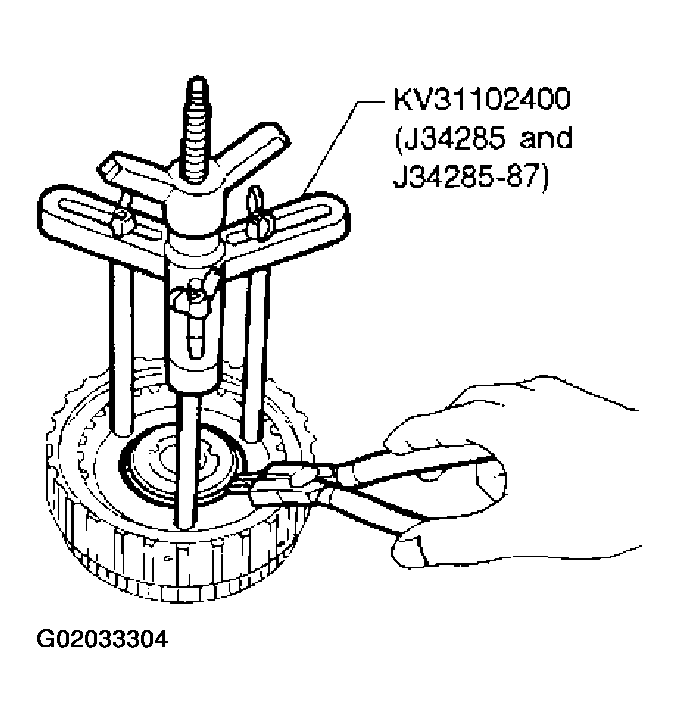

Fig 3: Removing/Installing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Inspection of high clutch return springs
Inspection standard: Refer to SDS, RETURN SPRINGS .

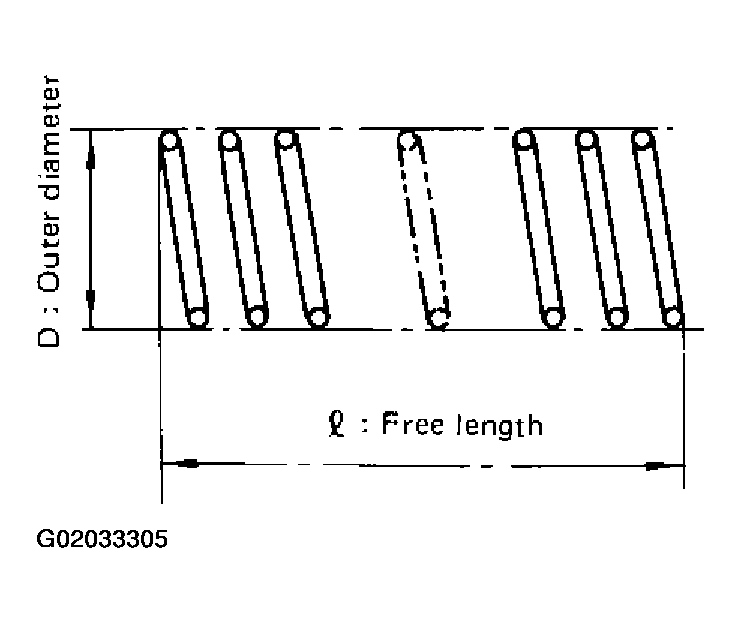

Fig 4: Checking Return Springs
Courtesy of NISSAN MOTOR CO., U.S.A.
Inspection of high clutch drive plate
Thickness of drive plate: Standard 1.52 - 1.67 mm (0.0598 - 0.0657 in)

Wear limit 1.40 mm (0.0551 in)

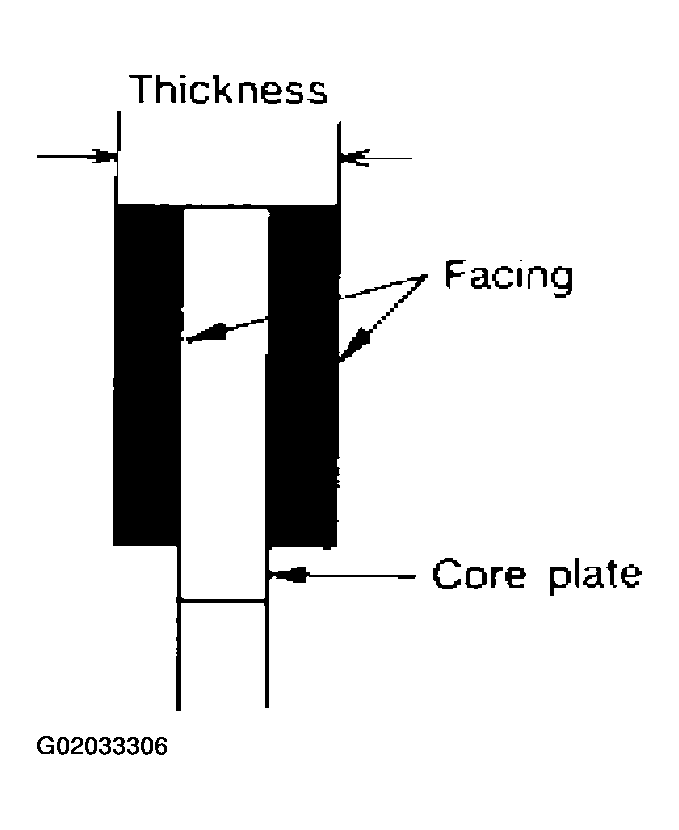

Fig 5: Inspecting High Clutch Drive Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Measurement of clearance between retaining plate and snap ring
Specified clearance: Standard

1.8 - 2.2 mm (0.071 - 0.087 in)

Allowable limit 3.2 mm (0.126 in)

Retaining plate: Refer to SDS, ACCUMULATOR O-RING .

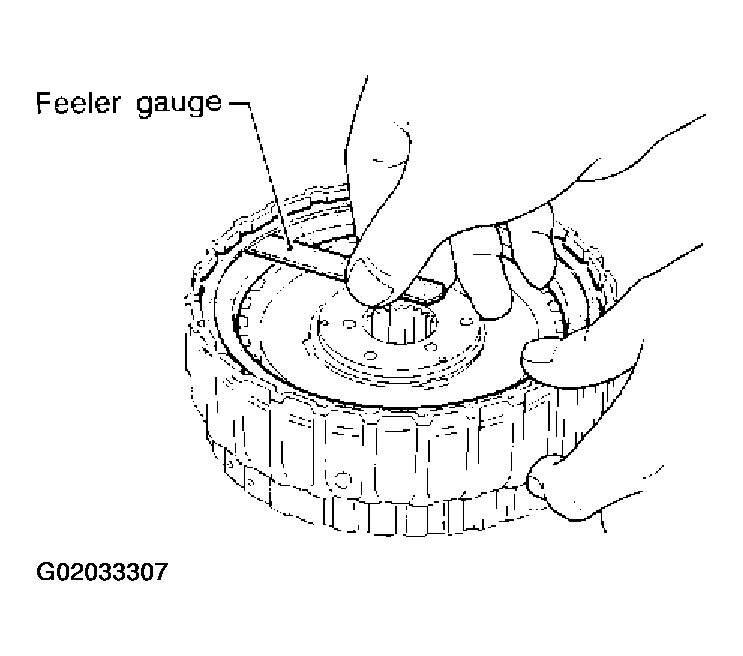

Fig 6: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
