Forward Clutch Drum Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap ring from forward clutch drum.
  2. Remove side plate from forward clutch drum.

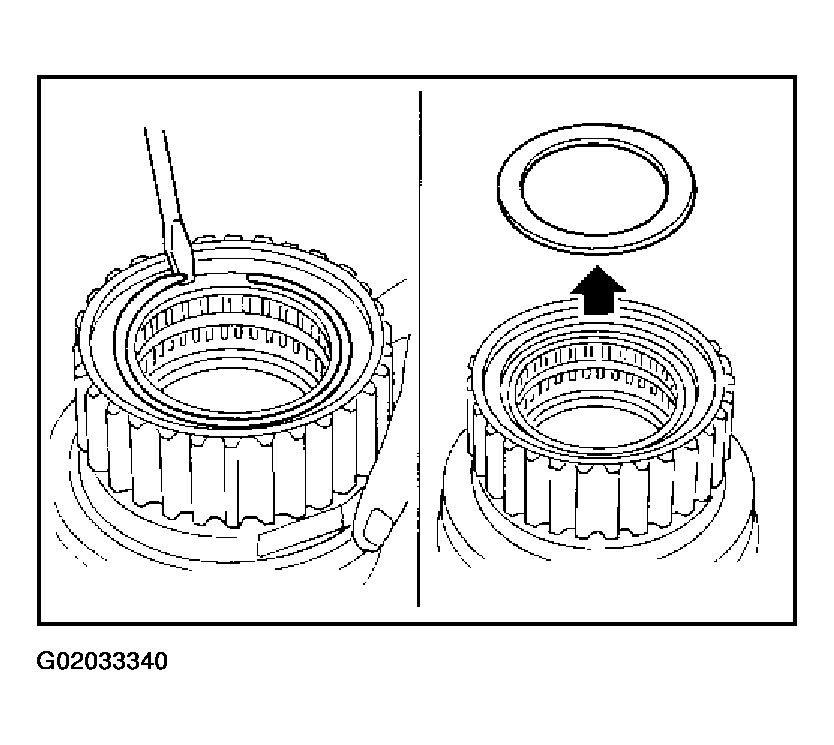

    Fig 1: Removing Snap Ring From Forward Clutch Drum
    G02033340Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove low one-way clutch from forward clutch drum.
  4. Remove snap ring from forward clutch drum.

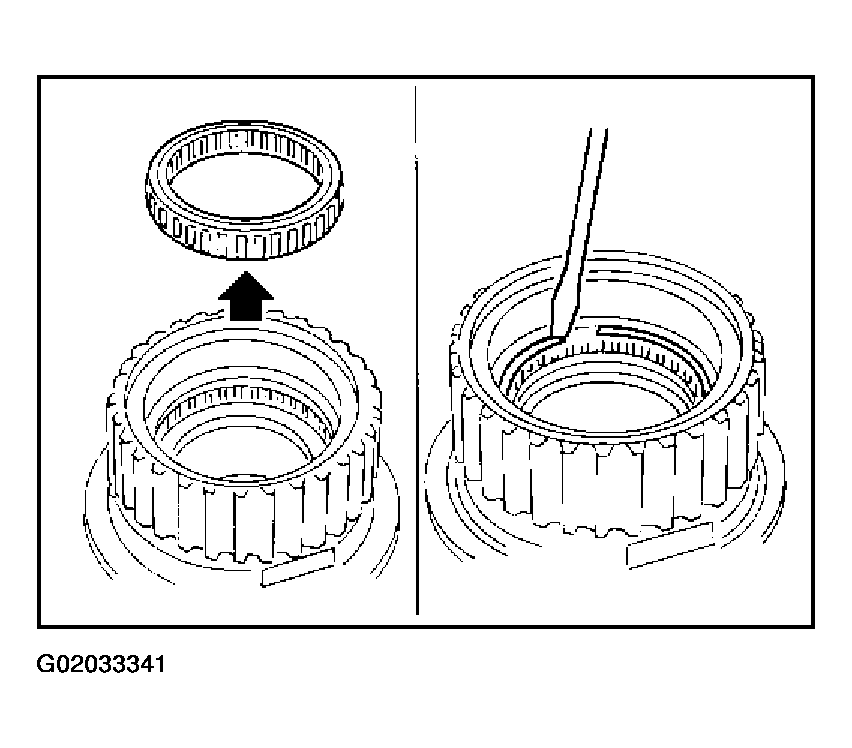

    Fig 2: Removing Low One-Way Clutch From Forward Clutch Drum
    G02033341Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove needle bearing from forward clutch drum.

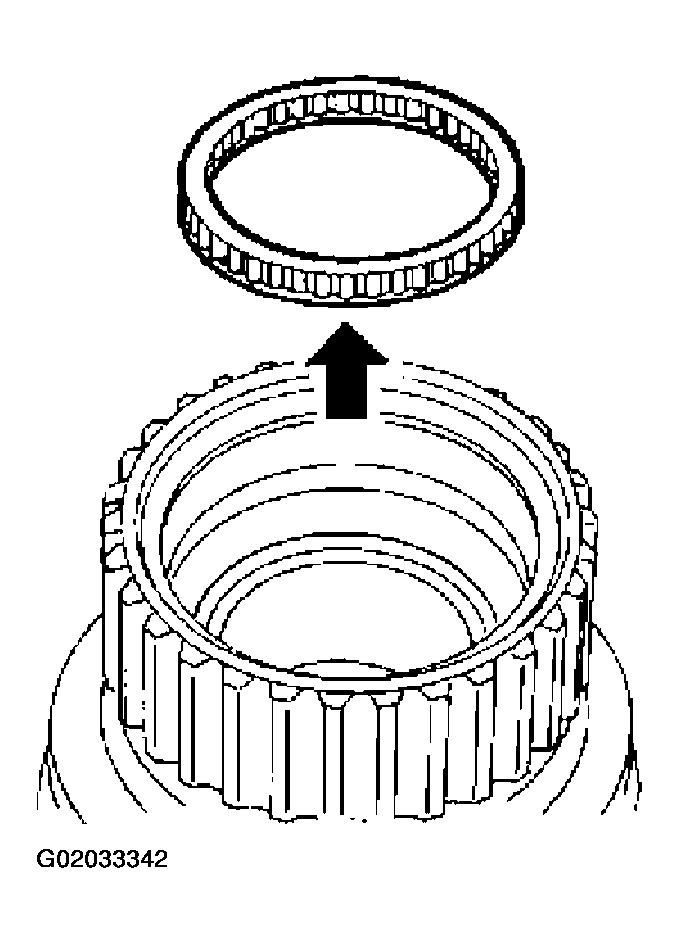

    Fig 3: Removing Needle Bearing From Forward Clutch Drum
    G02033342Courtesy of NISSAN MOTOR CO., U.S.A.
