Forward Clutch Drum Assembly: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install needle bearing in forward clutch drum.
Install snap ring onto forward clutch drum.

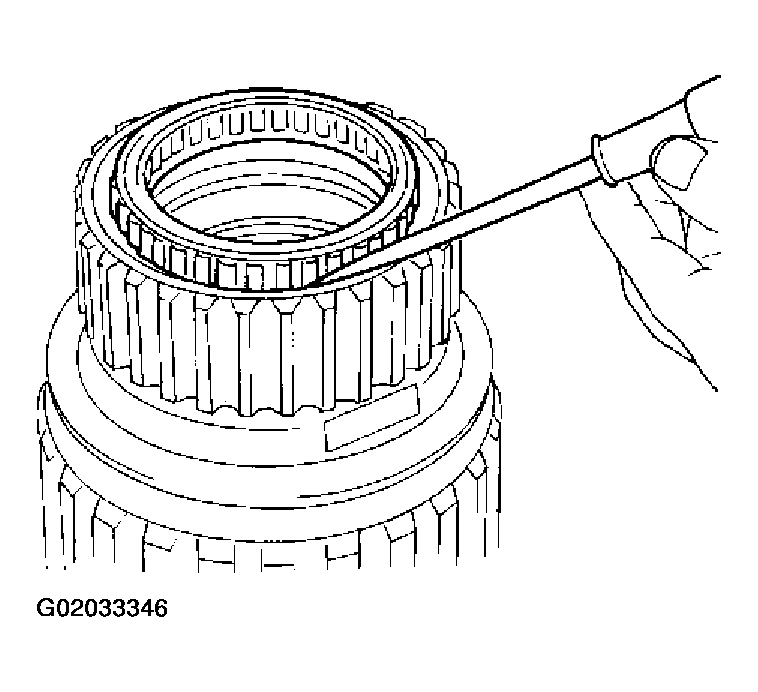

Fig 1: Installing Needle Bearing In Forward Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Install low one-way clutch onto forward clutch drum by pushing the roller in evenly.

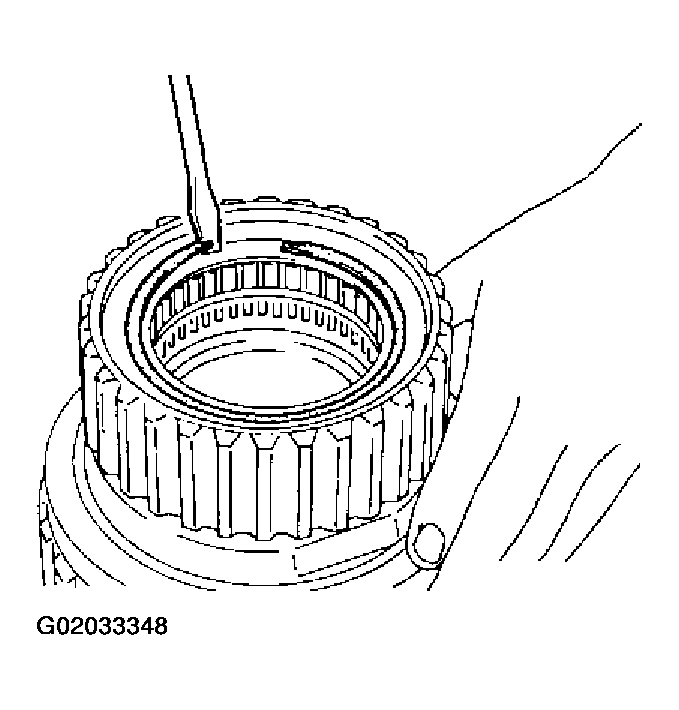

Fig 2: Installing Low One-Way Clutch Onto Forward Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
- Install low one-way clutch with flange facing rearward.

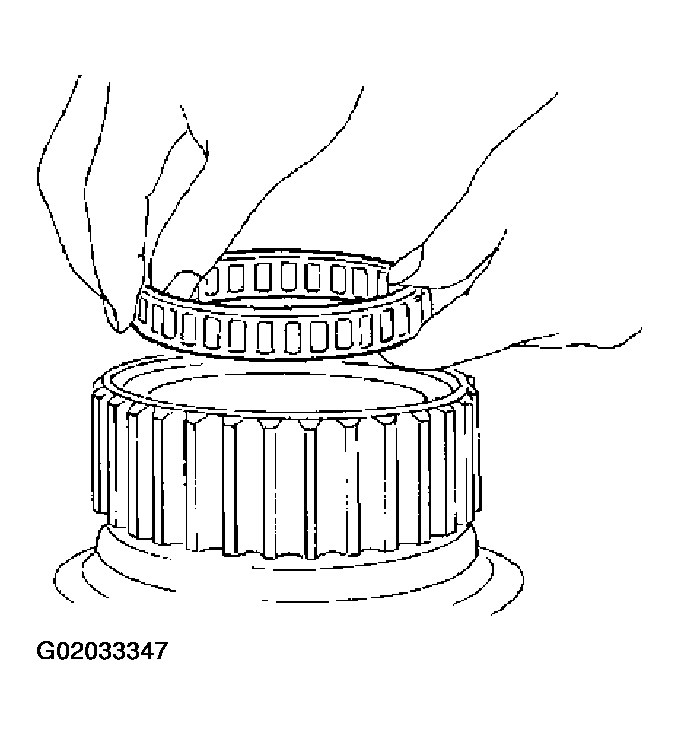

  Fig 3: Installing Low One-Way Clutch With Flange Facing Rearward
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install side plate onto forward clutch drum.
Install snap ring onto forward clutch drum.

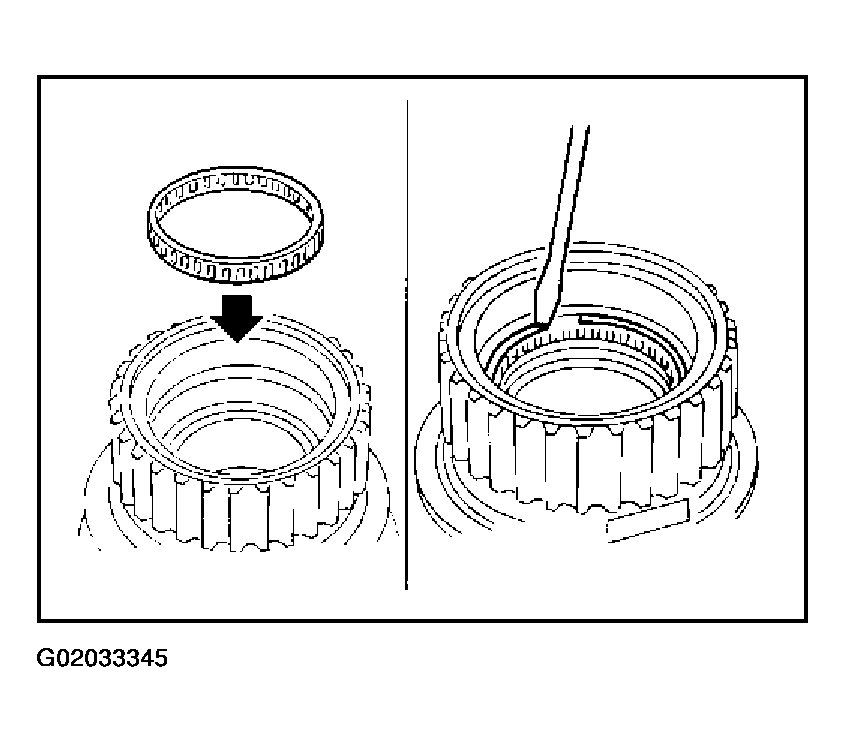

Fig 4: Installing Snap Ring Onto Forward Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
