Lower and Upper Bodies

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check to see that there are pins and retainer plates in lower body.

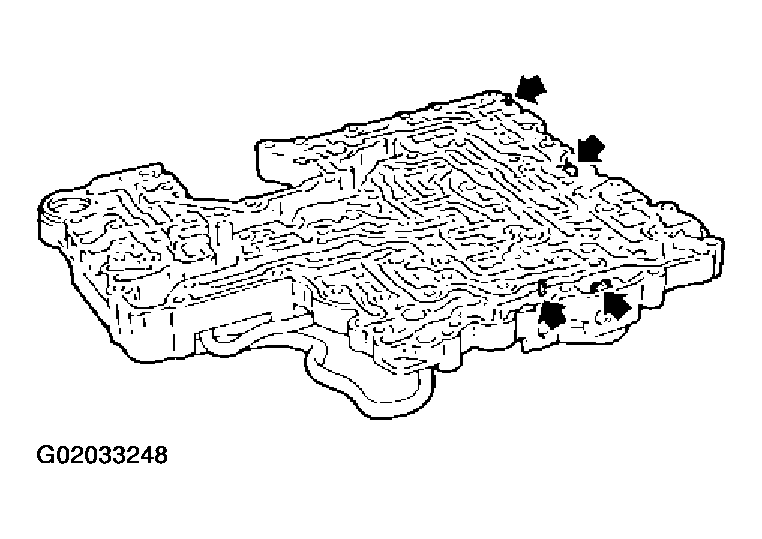

Fig 1: Identifying Pins And Retainer Plates In Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that there are pins and retainer plates in upper body.
Be careful not to lose these parts.

Fig 2: Identifying Pins And Retainer Plates In Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to make sure that oil circuits are clean and free from damage.
Check tube brackets and tube connectors for damage.

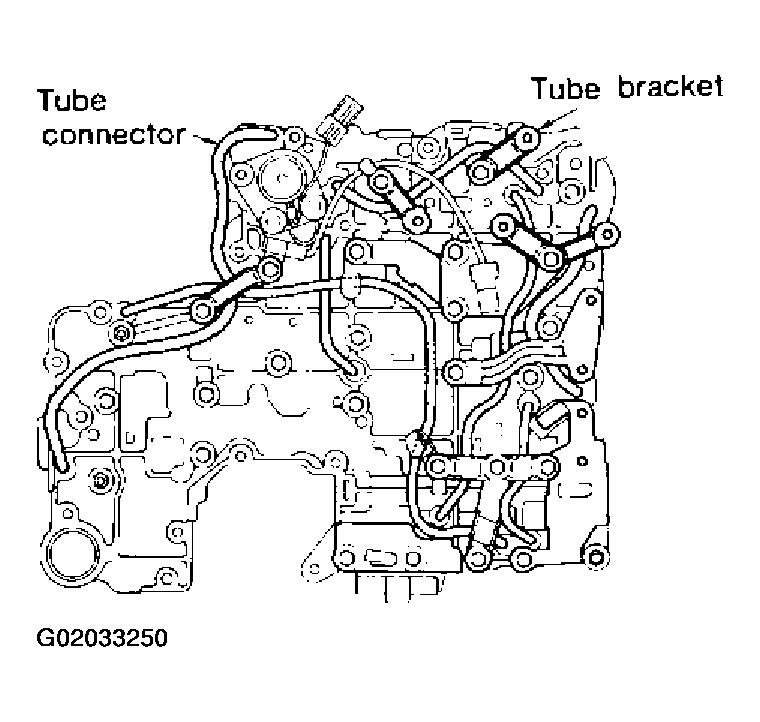

Fig 3: Locating Tube Brackets And Tube Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
