- 4WD Model -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery negative terminal.
  2. Remove exhaust front and rear tubes.
  3. Remove fluid charging pipe from A/T assembly.
  4. Remove oil cooler pipe from A/T assembly.
  5. Plug up openings such as the fluid charging pipe hole, etc.
  6. Remove propeller shaft. Refer to "COMPONENTS ".

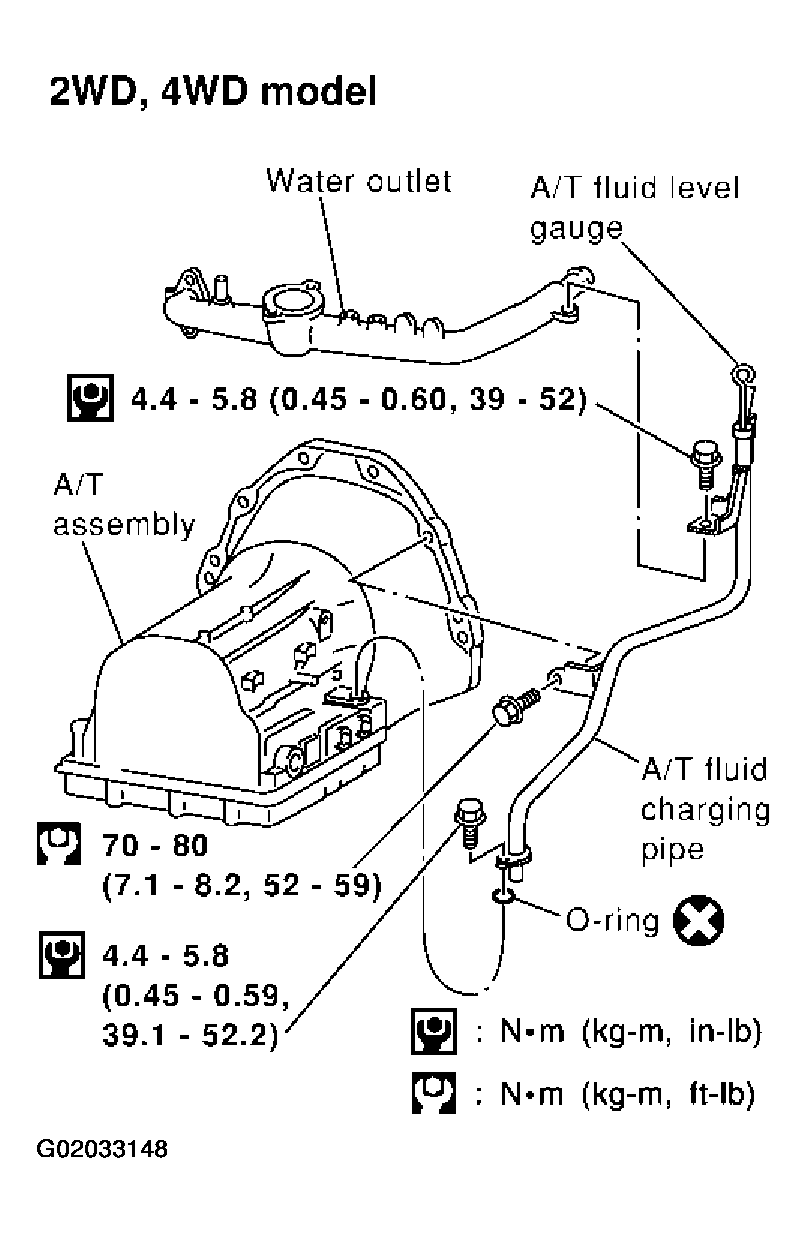

    7. Fig 1: Removing Fluid Level Gauge Pipe
    G02033148Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove transfer control linkage from transfer. Refer to REMOVAL .
    • Insert plug into rear oil seal after removing rear propeller shaft.
    • Be careful not to damage spline, sleeve yoke and rear oil seal.
  8. Remove A/T control cable from A/T assembly.
  9. Disconnect A/T solenoid, PNP switch, turbine revolution, revolution and speedometer sensor harness connectors.
  10. Remove starter motor. Refer to REMOVAL & INSTALLATION .
  11. Remove bolts securing torque converter to drive plate.
    • Remove the bolts by turning crankshaft.

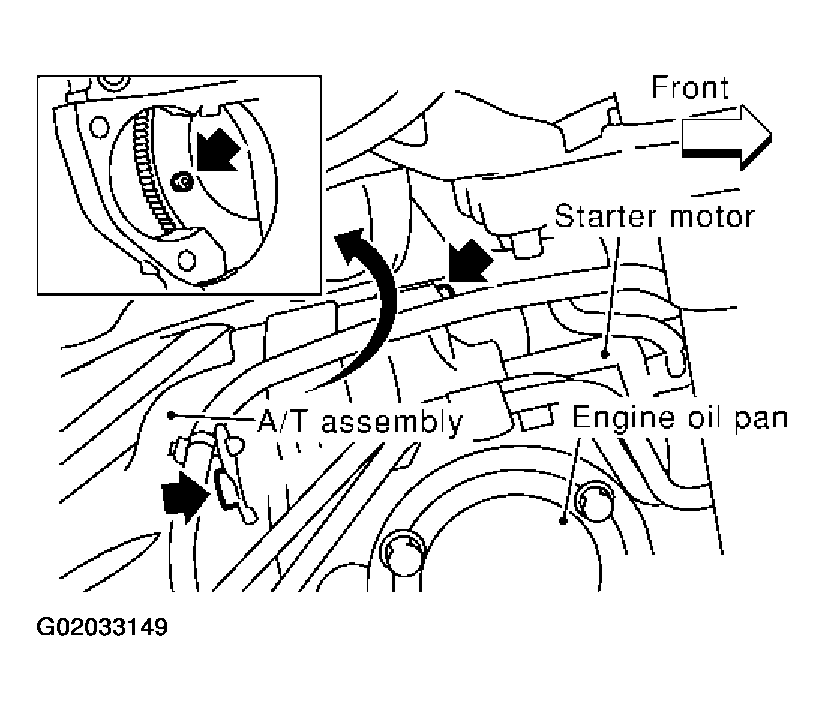

      Fig 2: Identifying Torque Converter Bolts
      G02033149Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Support A/T and transfer assembly with a jack.
  13. Remove rear engine mounting member from body and A/T assembly. Tighten rear engine mounting member to the specified torque. Refer to "REAR ENGINE MOUNTING ".
  14. Remove bolts securing A/T assembly to engine.
    • Secure torque converter to prevent it from dropping.
    • Secure A/T assembly to a jack.
  15. Lower A/T assembly with transfer.

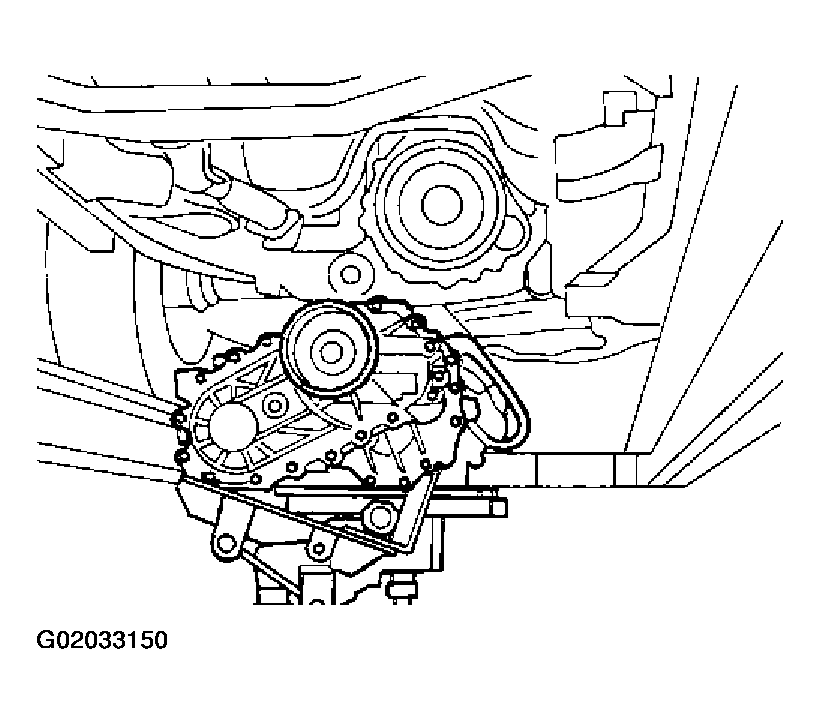

    Fig 3: Lowering A/T Assembly
    G02033150Courtesy of NISSAN MOTOR CO., U.S.A.
