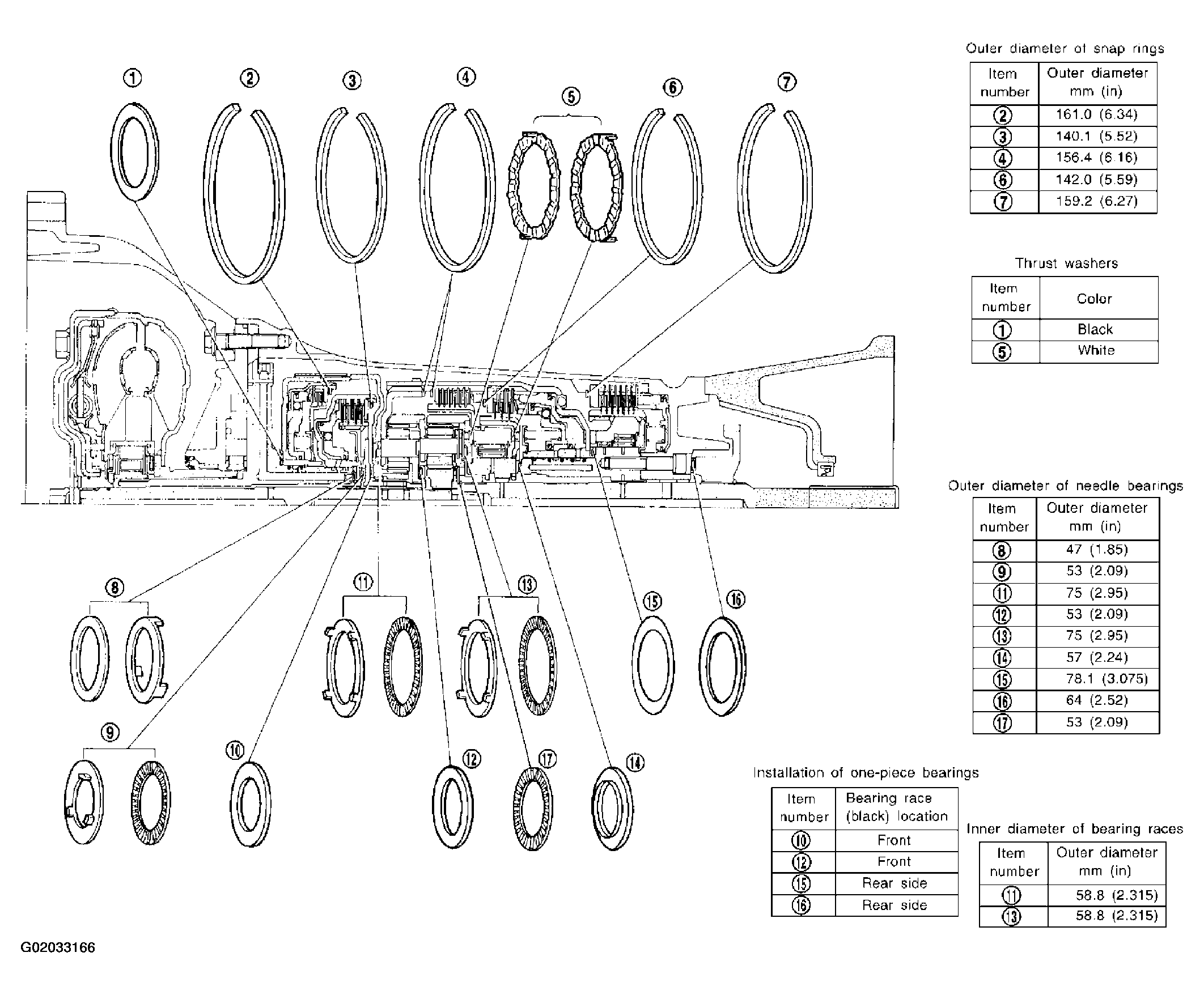

Locations of Needle Bearings, Thrust Washers and Snap Rings

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
