"D4" (OD) Position

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

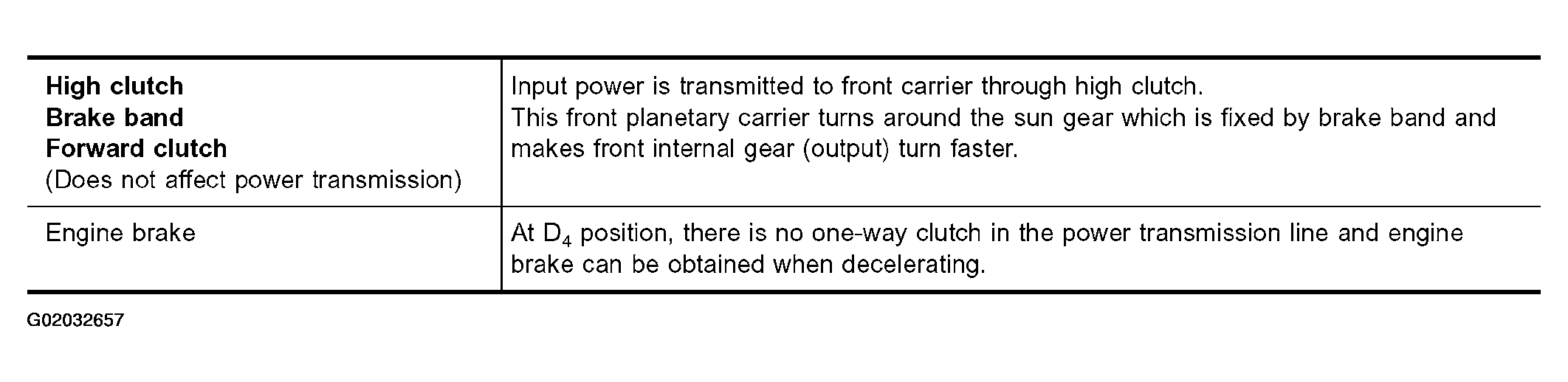

Fig 1: Power Transmission D4 (OD) Position Table
G02032657Courtesy of NISSAN MOTOR CO., U.S.A.

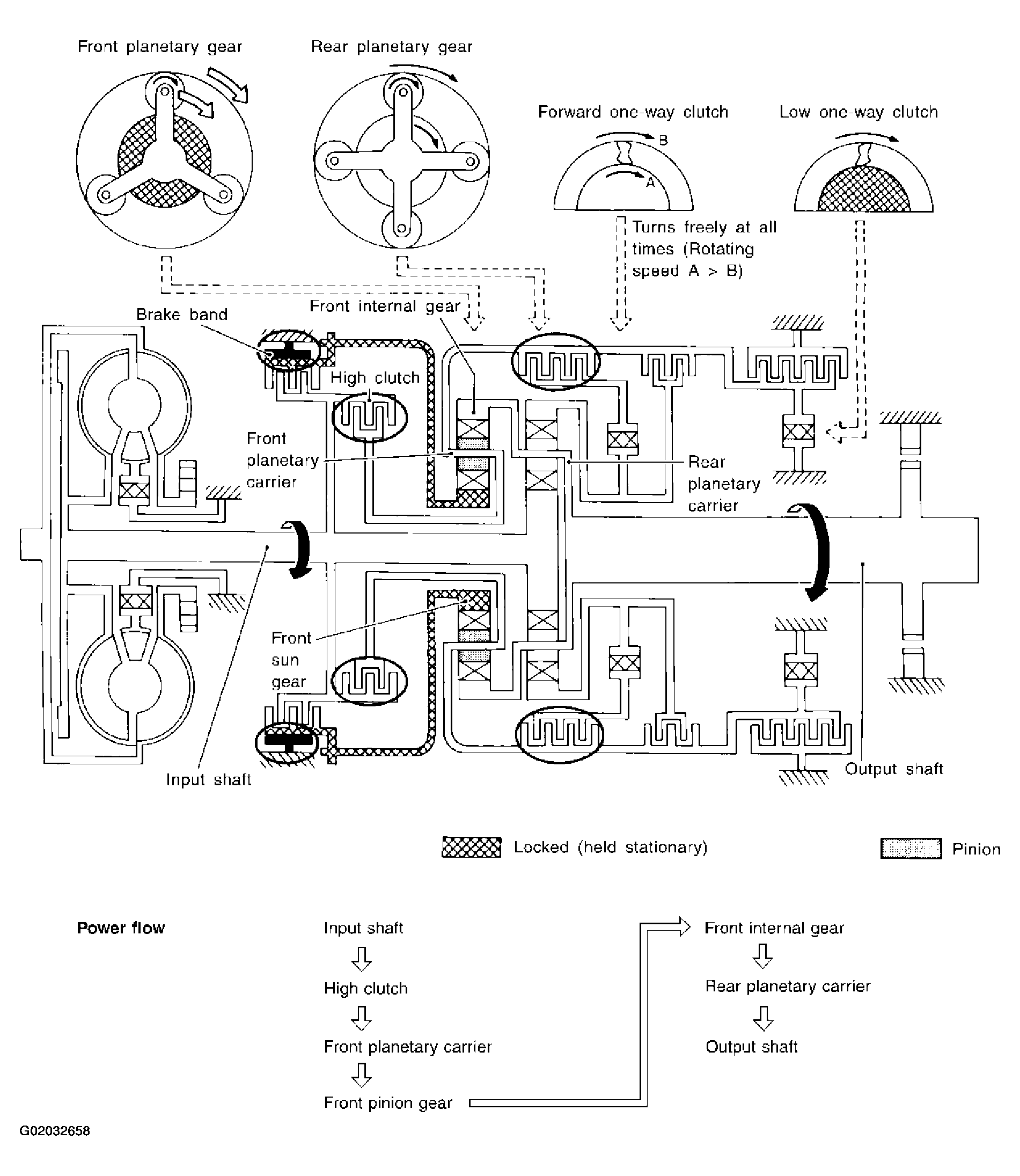

Fig 2: Identifying Power Transmission D4 (OD) Position
G02032658Courtesy of NISSAN MOTOR CO., U.S.A.
