- 2WD Model -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Replace rear extension assembly as a single unit because it cannot be disassembled.
  1. Remove propeller shaft. Refer to "COMPONENTS ".
  2. Remove exhaust mounting and mounting bracket.
  3. Disconnect revolution and speedometer sensor harness connector.

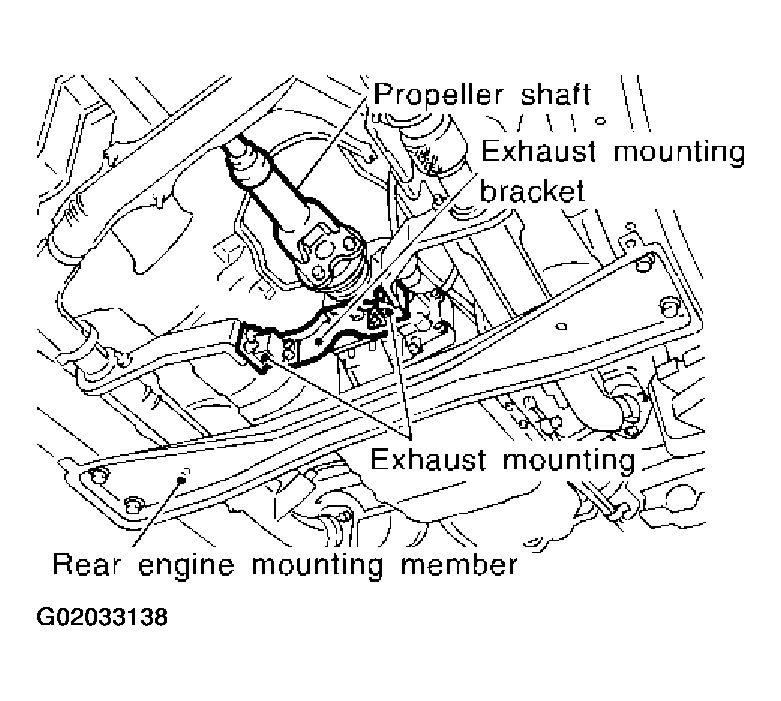

    Fig 1: Removing Exhaust Mounting And Mounting Bracket
    G02033138Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Support A/T assembly with a jack.
  5. Remove rear engine mounting member. Tighten rear engine mounting member to the specified torque. Refer to "REAR ENGINE MOUNTING ".
  6. Remove rear extension assembly.
    1. Remove parking gear and needle bearing.
      CAUTION: Insert your hand between rear extension and transmission case. Detach rear extension assembly while holding parking gear and needle bearing by hand.
  7. Reinstall any part removed.
    • Always use new sealing parts.

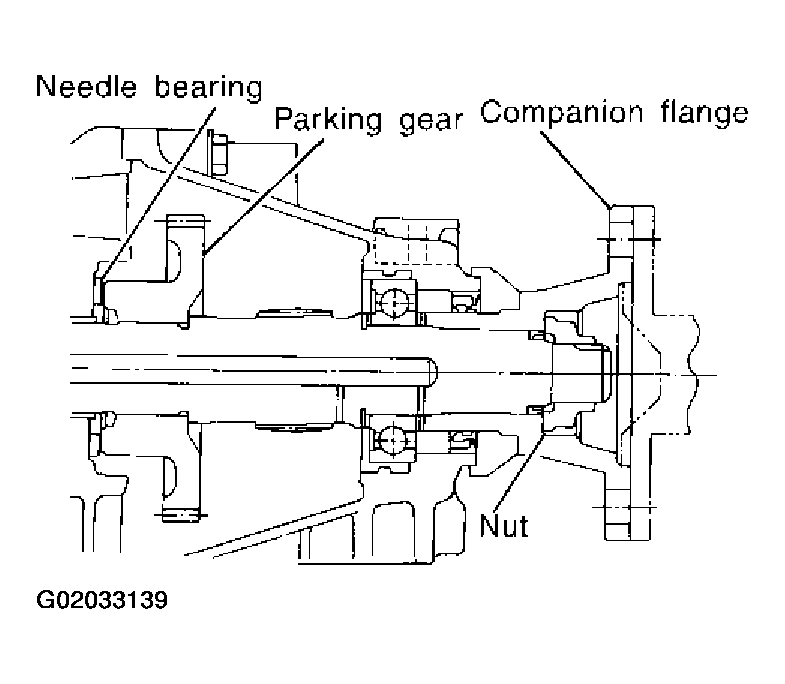

      Fig 2: Identifying Parking Gear, Needle Bearing And Companion Flange
      G02033139Courtesy of NISSAN MOTOR CO., U.S.A.
