- 4WD Model -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer case from vehicle. Refer to REMOVAL .
  2. Remove rear oil seal.
    • Do not remove oil seal unless it is to be replaced.
  3. Install rear oil seal.
    • Apply ATF before installing.
  4. Reinstall any part removed.

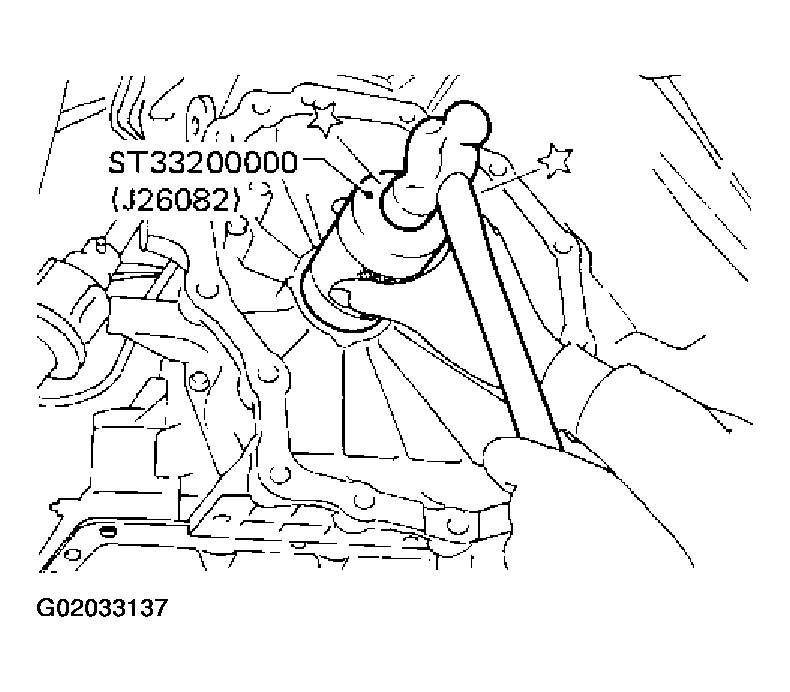

    Fig 1: Installing Rear Oil Seal
    G02033137Courtesy of NISSAN MOTOR CO., U.S.A.
