- 4WD Model -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove propeller shaft. Refer to "COMPONENTS ".
  2. Remove transfer case from vehicle. Refer to REMOVAL .
  3. Remove A/T control cable bracket from transmission case.

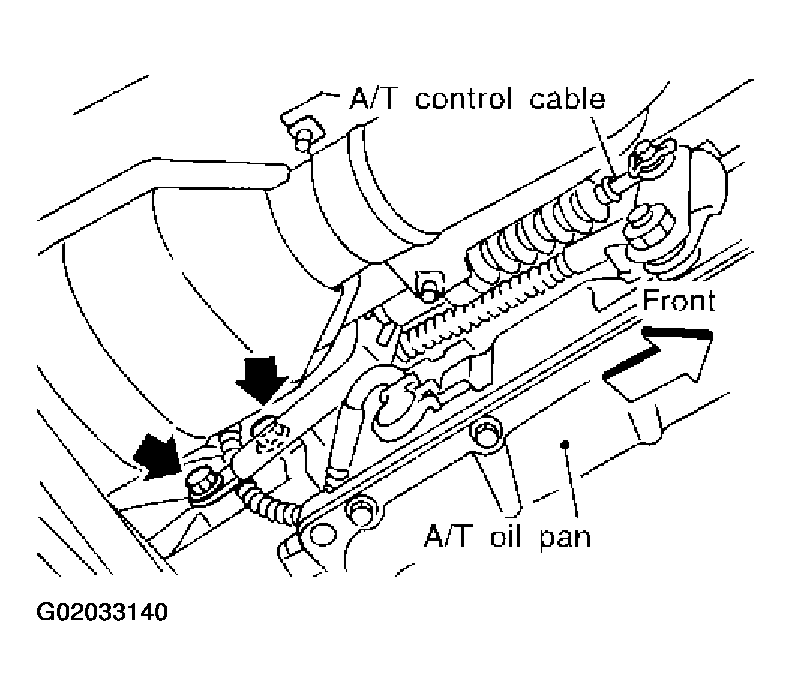

    Fig 1: Removing A/T Control Cable From Transmission Case
    G02033140Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Support A/T assembly with a jack.
  5. Remove adapter case from transmission cases.
  6. Replace parking components if necessary.
  7. Reinstall any part removed.
    • Always use new sealing parts.

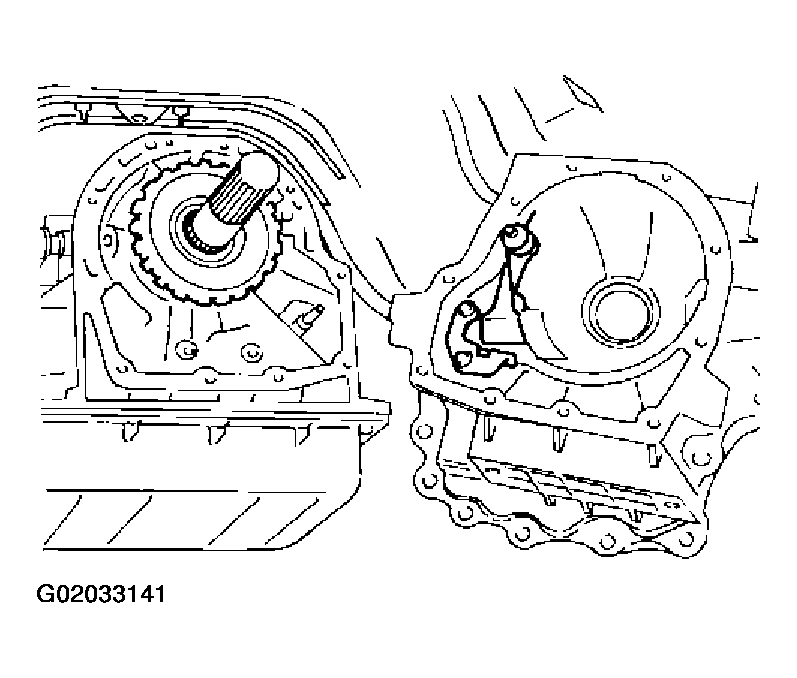

      Fig 2: Removing Adapter Case From Transmission Case
      G02033141Courtesy of NISSAN MOTOR CO., U.S.A.
