Judgement Of Self-Diagnosis Code

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

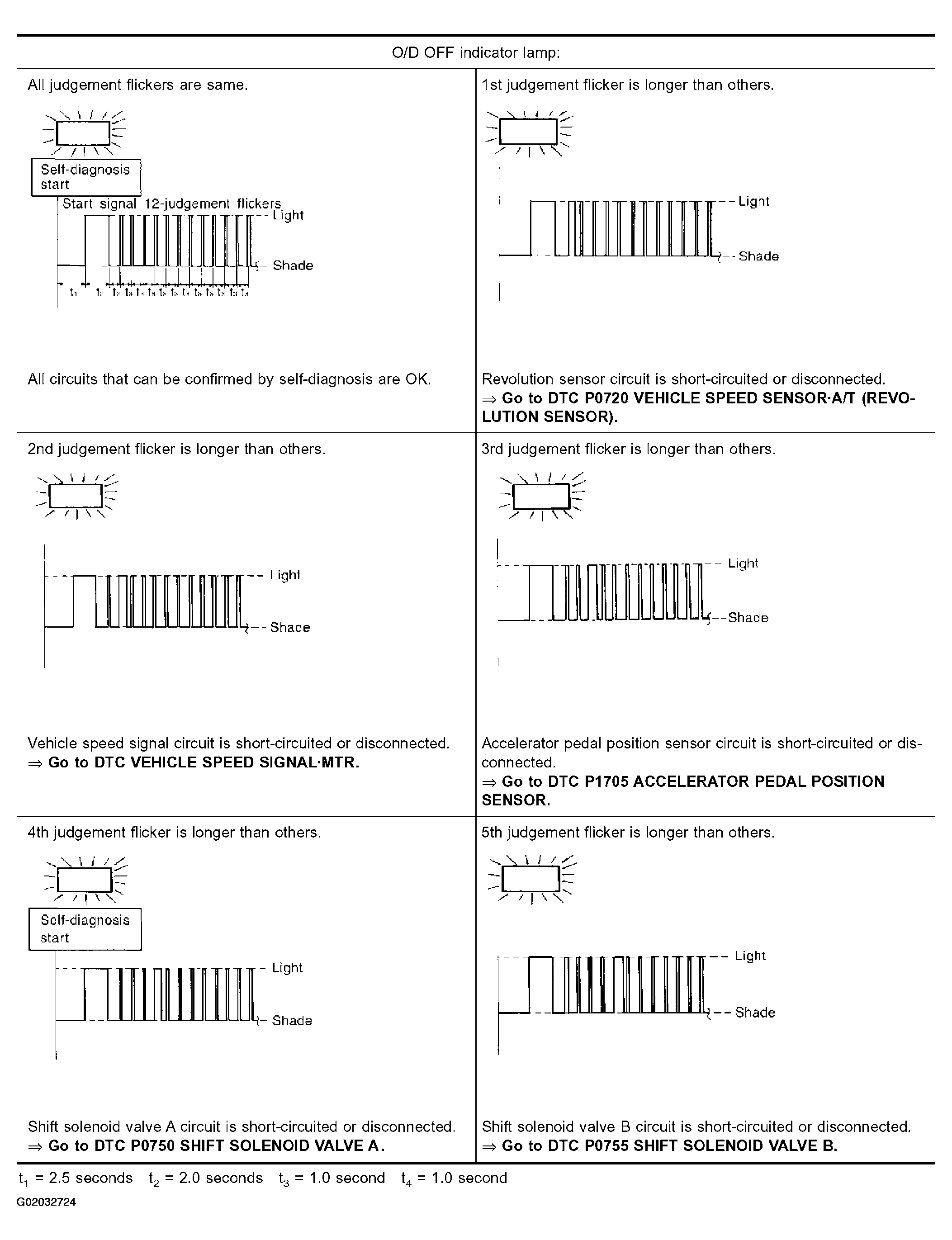

Fig 1: Self-Diagnosis Code Judgement Display (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

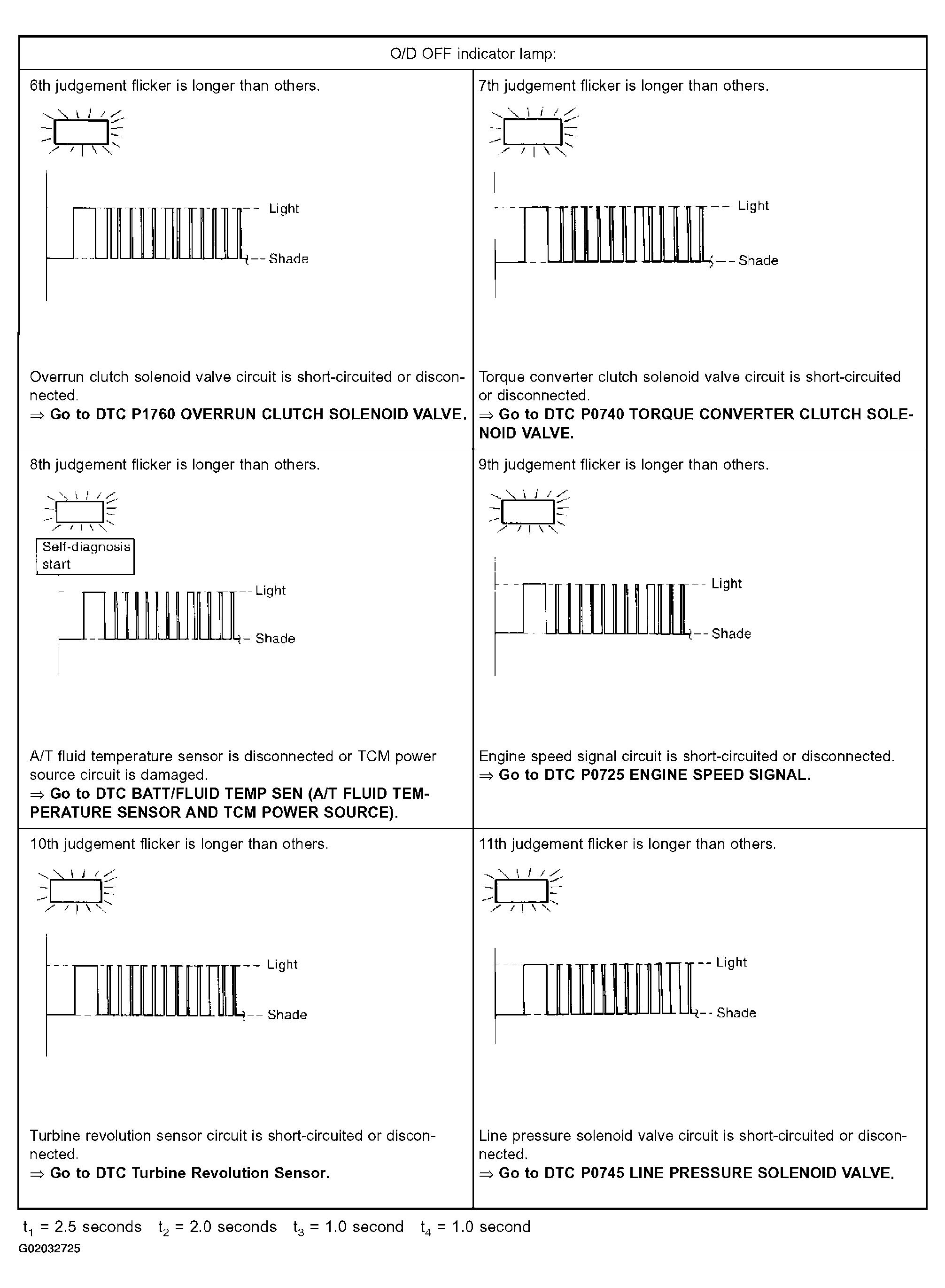

Fig 2: Self-Diagnosis Code Judgement Display (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

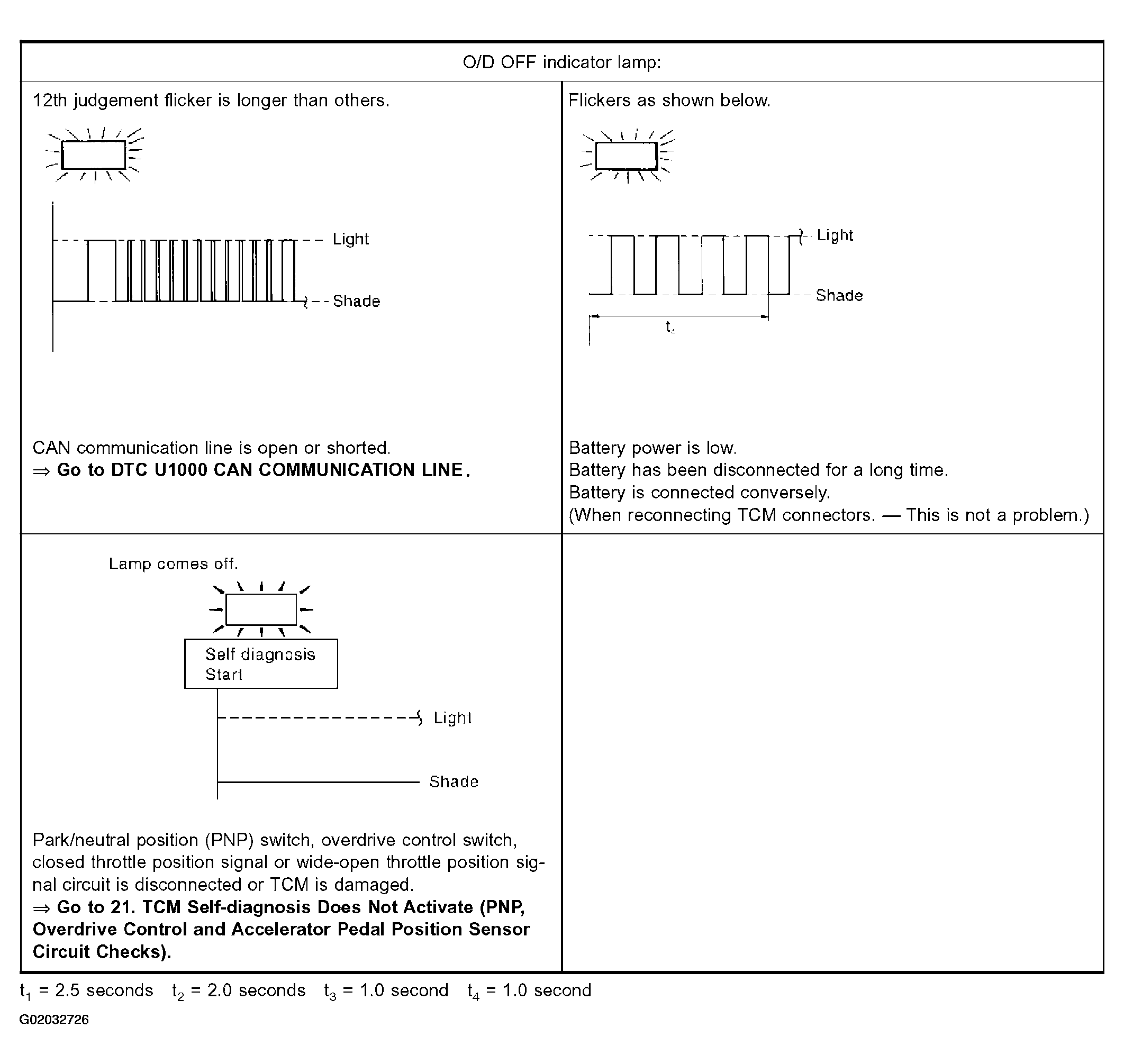

Fig 3: Self-Diagnosis Code Judgement Display (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
