Self-Diagnostic Result Test Mode

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

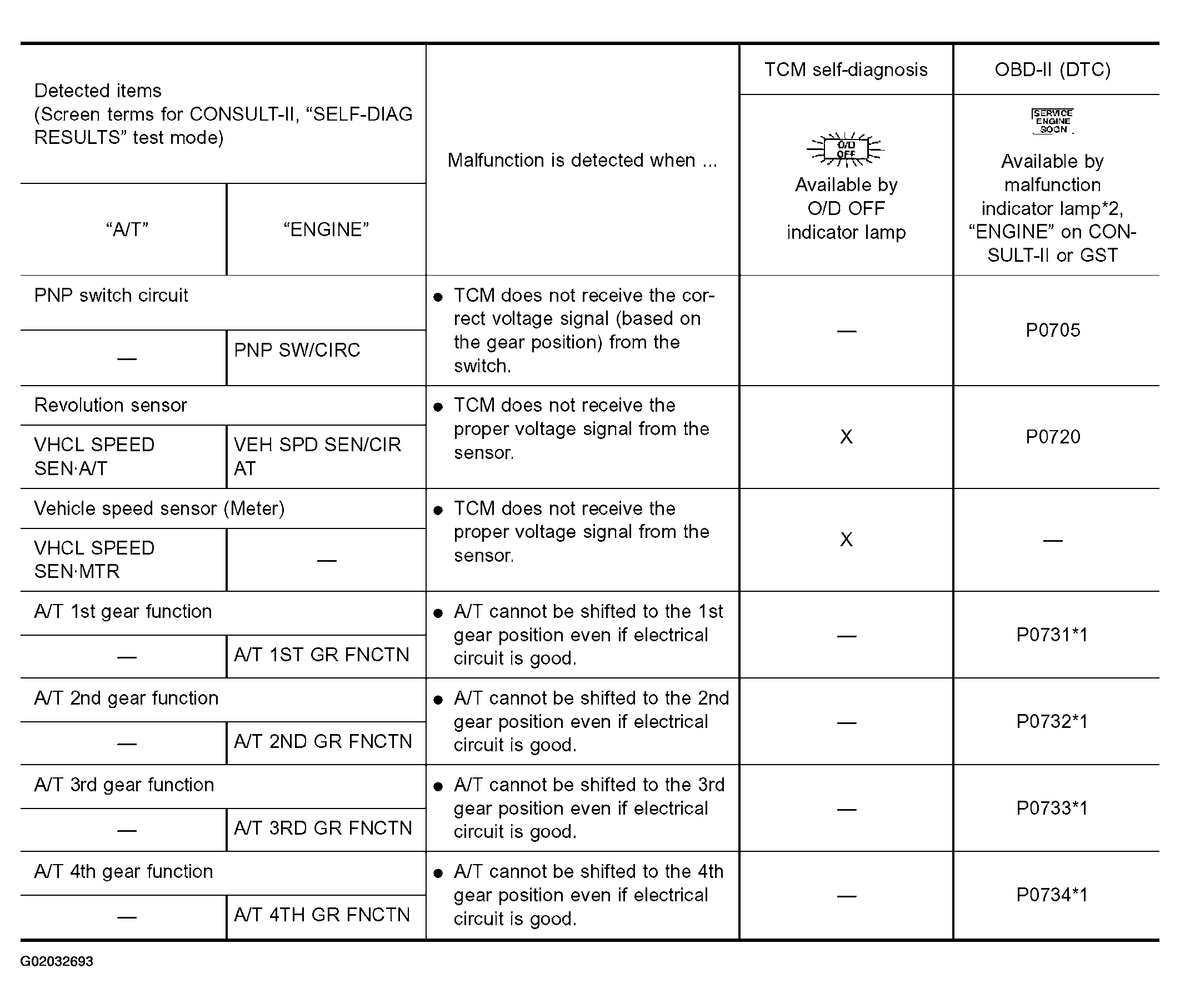

Fig 1: Self-Diagnostic Test Mode Result Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Self-Diagnostic Test Mode Result Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Self-Diagnostic Test Mode Result Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
