No Tools

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Drive vehicle under the following conditions:

    Selector lever in "D" position and vehicle speed higher than 25 km/h (16 MPH).

  3. Perform self-diagnosis.

    Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

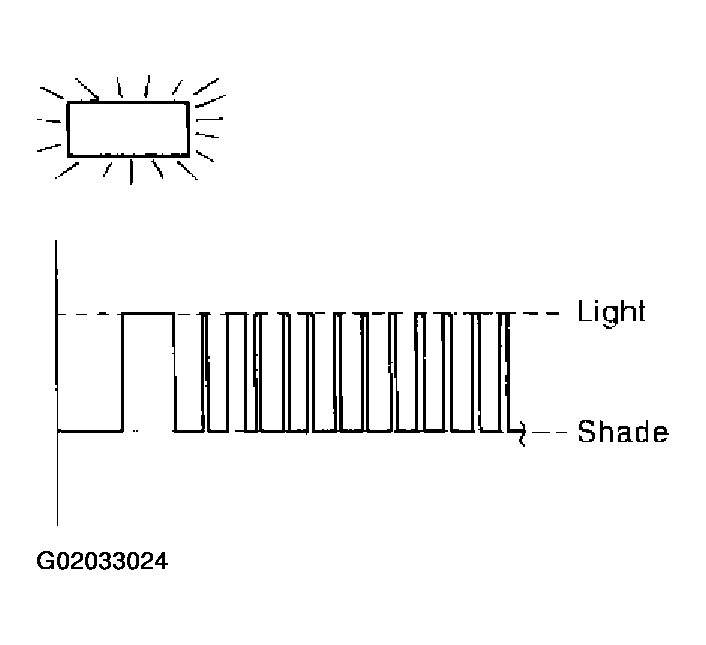

    Fig 1: DTC Blinking Pattern
    G02033024Courtesy of NISSAN MOTOR CO., U.S.A.
