DTC P1760: Overrun Clutch Solenoid Valve: Description: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the park/neutral position (PNP) switch, overdrive control switch, vehicle speed and throttle position sensors. The overrun clutch operation will then be controlled.

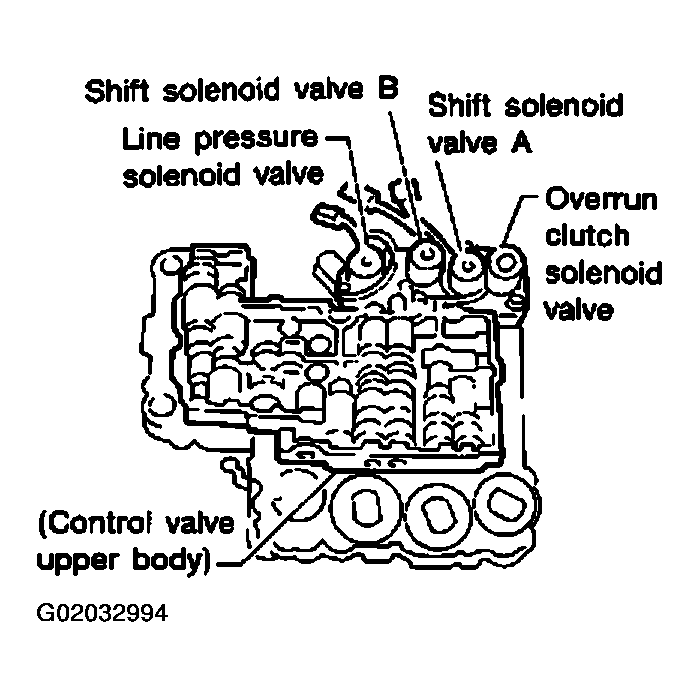

Fig 1: Identifying Overrun Clutch Solenoid Valve
G02032994Courtesy of NISSAN MOTOR CO., U.S.A.
