Resistance Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between terminal 4 and ground.

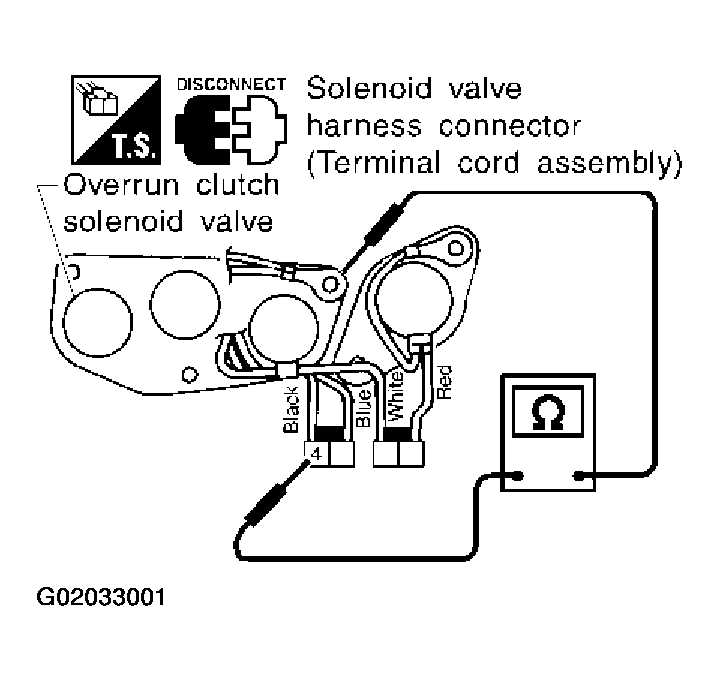

Fig 1: Checking Resistance Overrun Clutch Solenoid Valve
Courtesy of NISSAN MOTOR CO., U.S.A.

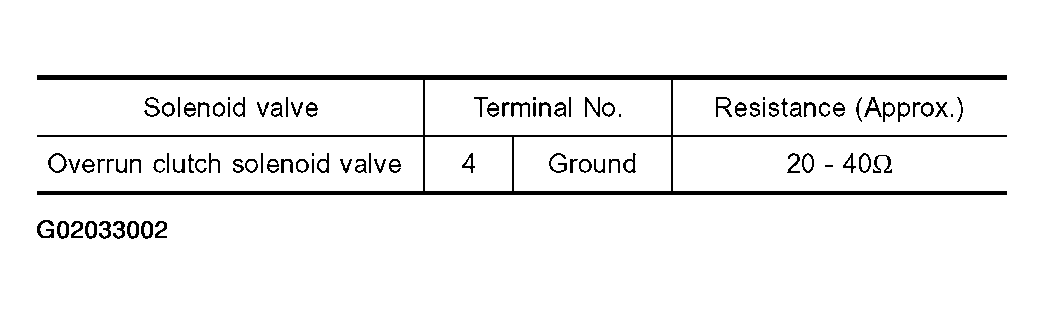

Fig 2: Resistance Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
