With Consult-II

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

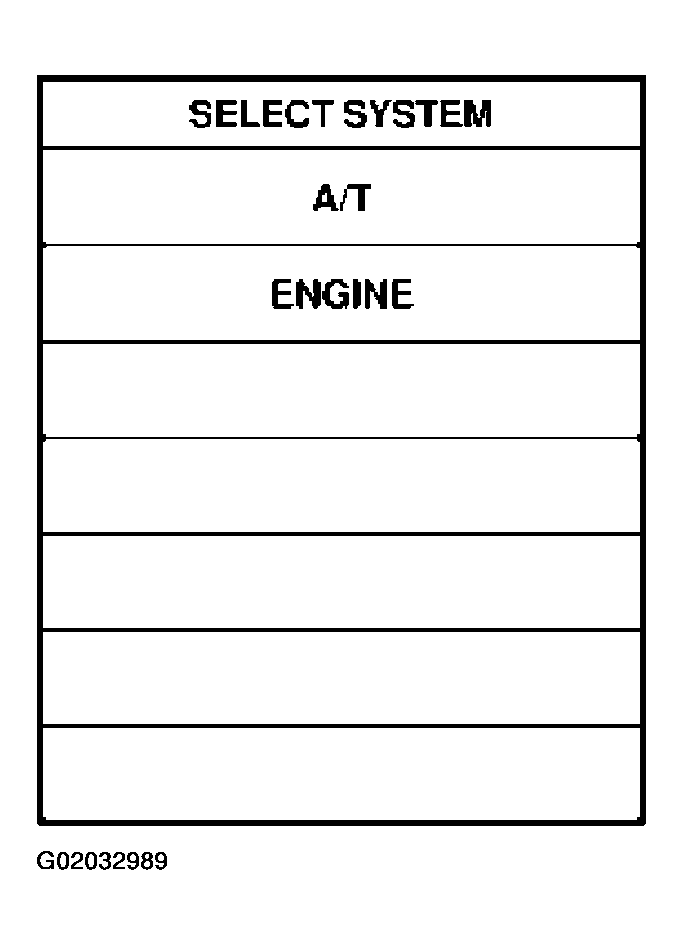

Fig 1: CONSULT - II (Select System Display)
Courtesy of NISSAN MOTOR CO., U.S.A.

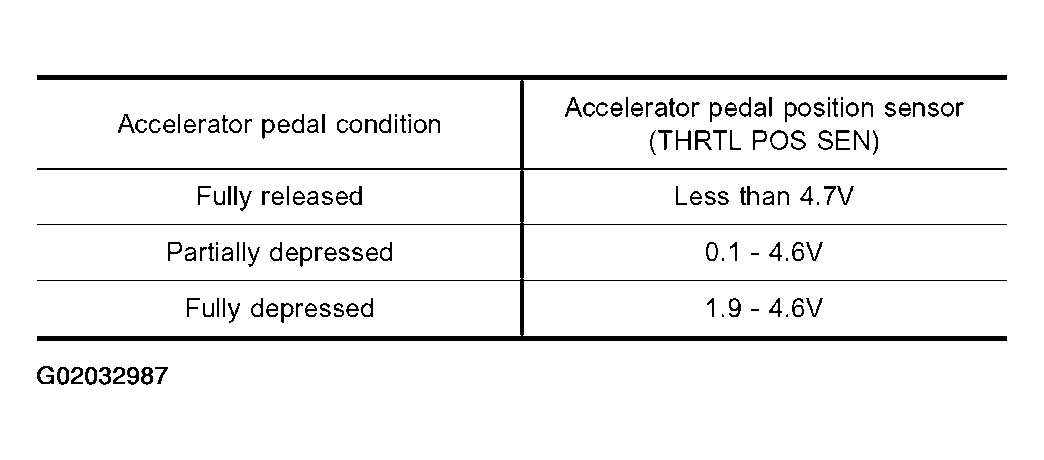

Fig 2: Accelerator Pedal Condition And Position Sensor Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

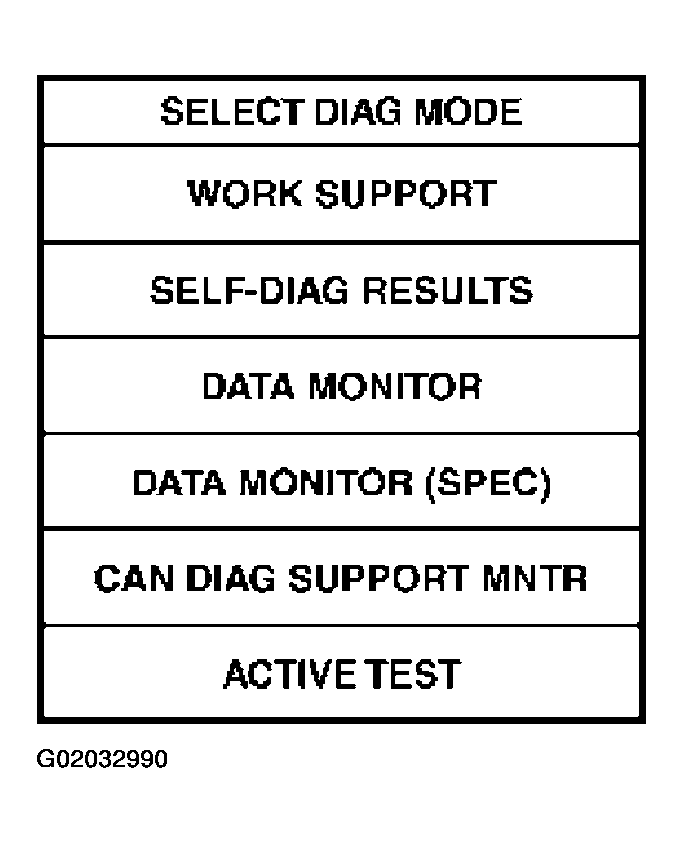

Fig 3: CONSULT - II (Select Diag Mode Display)
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is NG, go to "DIAGNOSTIC PROCEDURE", IN "P" POSITION, VEHICLE MOVES FORWARD OR BACKWARD WHEN PUSHED .

If the check result is OK, go to following step.
Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN (electric throttle control actuator):

Approximately 3V or less

Selector lever: D position

If the check result is NG, go to "DIAGNOSTIC PROCEDURE", IN "P" POSITION, VEHICLE MOVES FORWARD OR BACKWARD WHEN PUSHED .

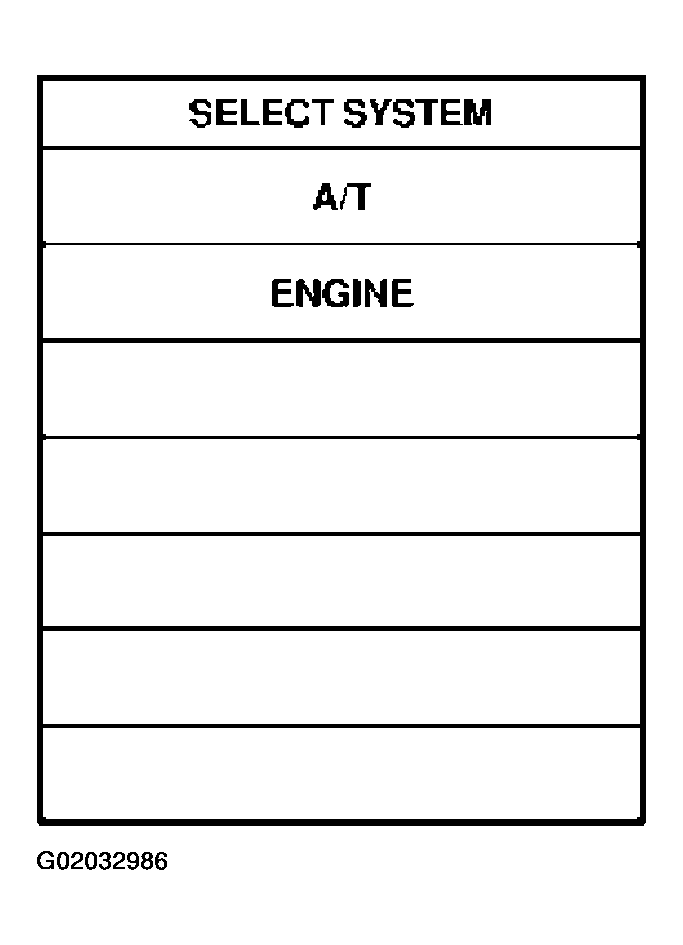

Fig 4: CONSULT - II (Select System Display)
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is OK, go to following step.

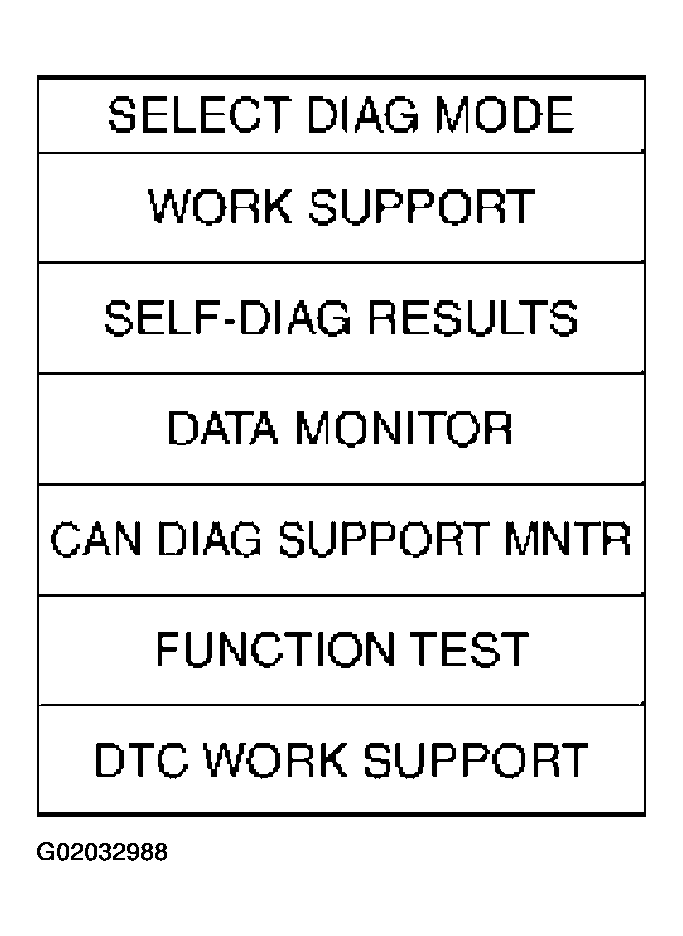

Fig 5: CONSULT - II (Select Diag Mode Display)
Courtesy of NISSAN MOTOR CO., U.S.A.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position
