Dropping Resistor

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between two terminals.
Resistance: 11.2 - 12.8Ω

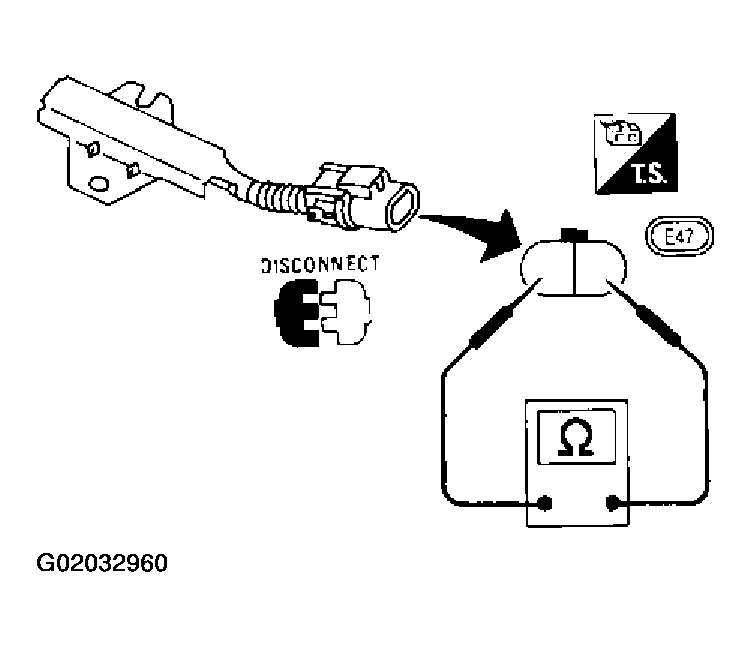

Fig 1: Checking Dropping Resistor Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.
