With CONSULT-II

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "ON".

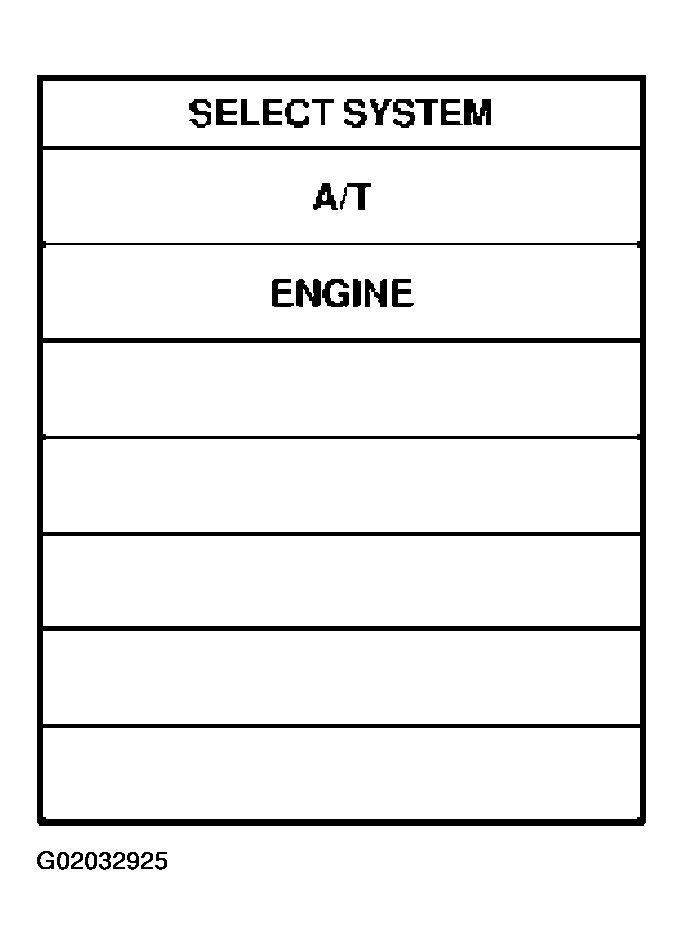

Fig 1: CONSULT - II (Select System Display)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II and wait at least 1 second.

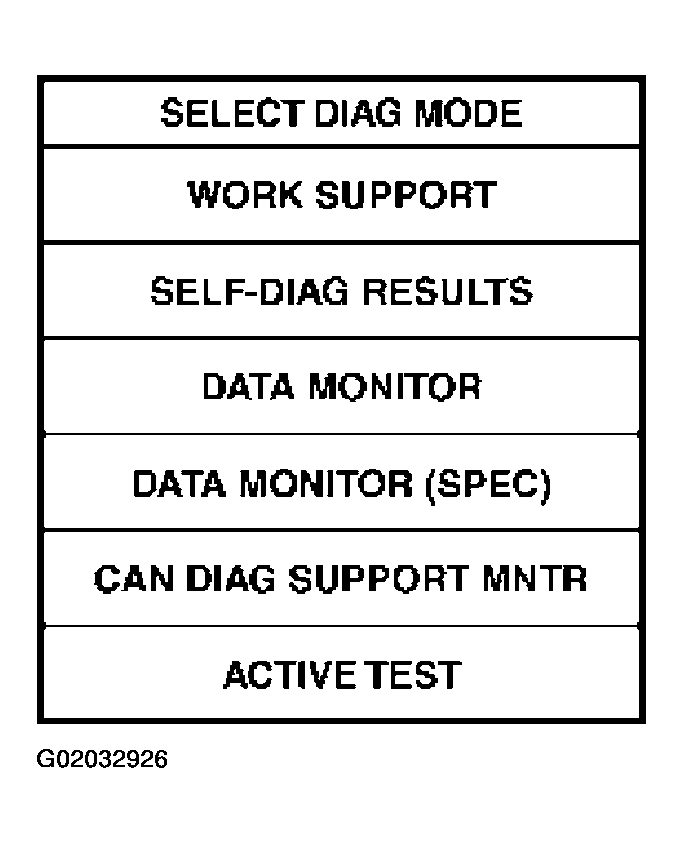

Fig 2: CONSULT-II (Select Diag Mode Display)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 80 km/h (50 MPH) or more

THROTTLE POSI: 0.5/8 - 1.0/8

Selector lever: D position

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
