Resistance Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between terminals (3, 2 or 6) and ground.

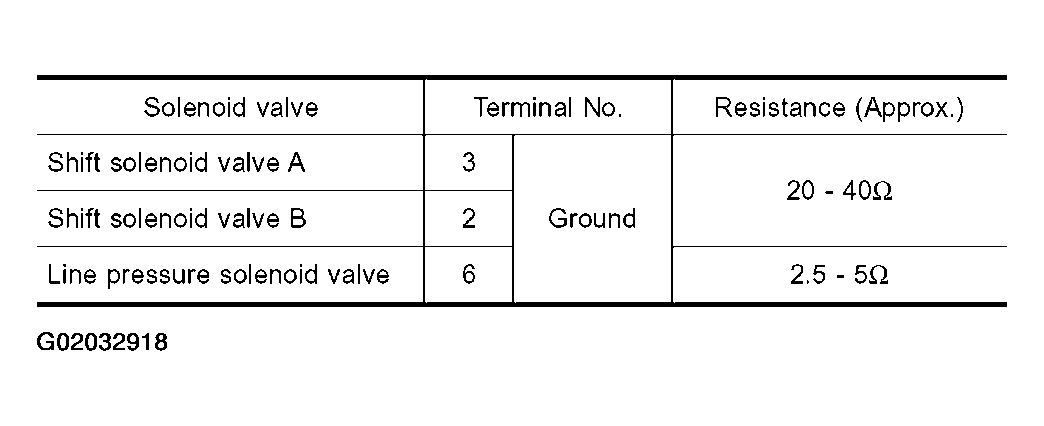

Fig 1: Solenoid Valves Resistance Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

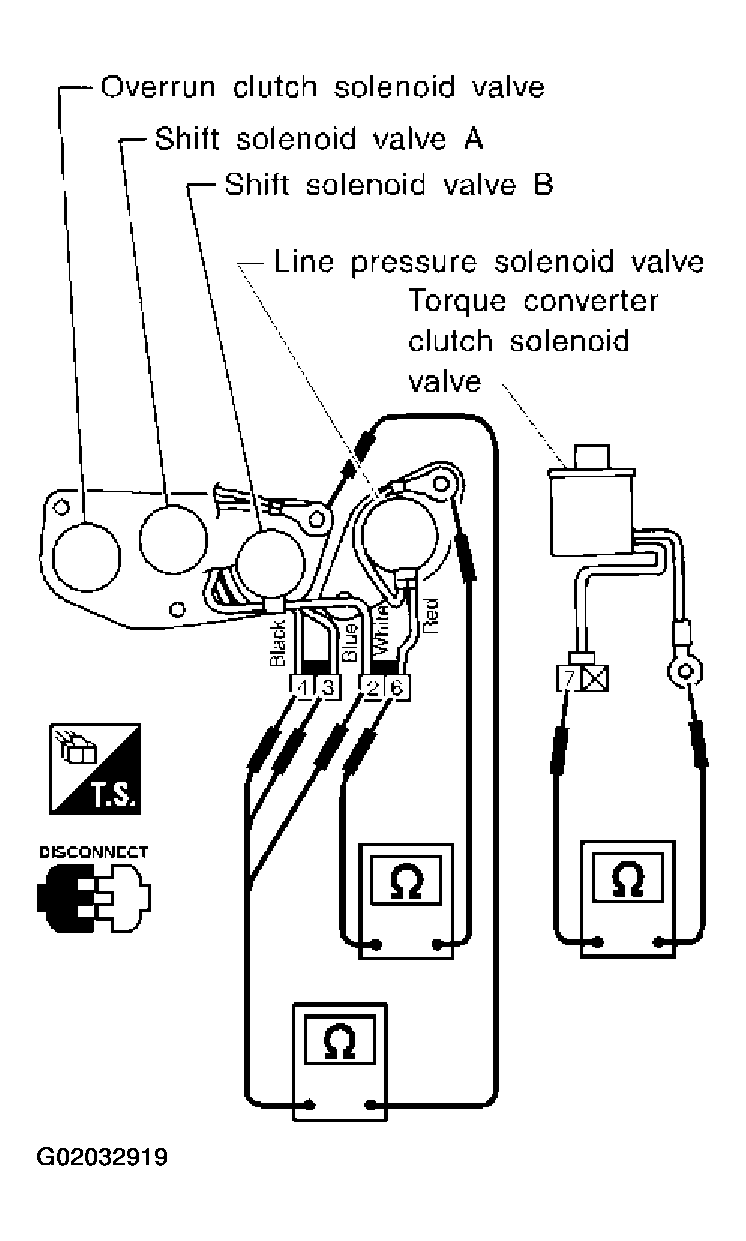

Fig 2: Checking Resistance Solenoid Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
