Wiring Diagram - AT - 2ND

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

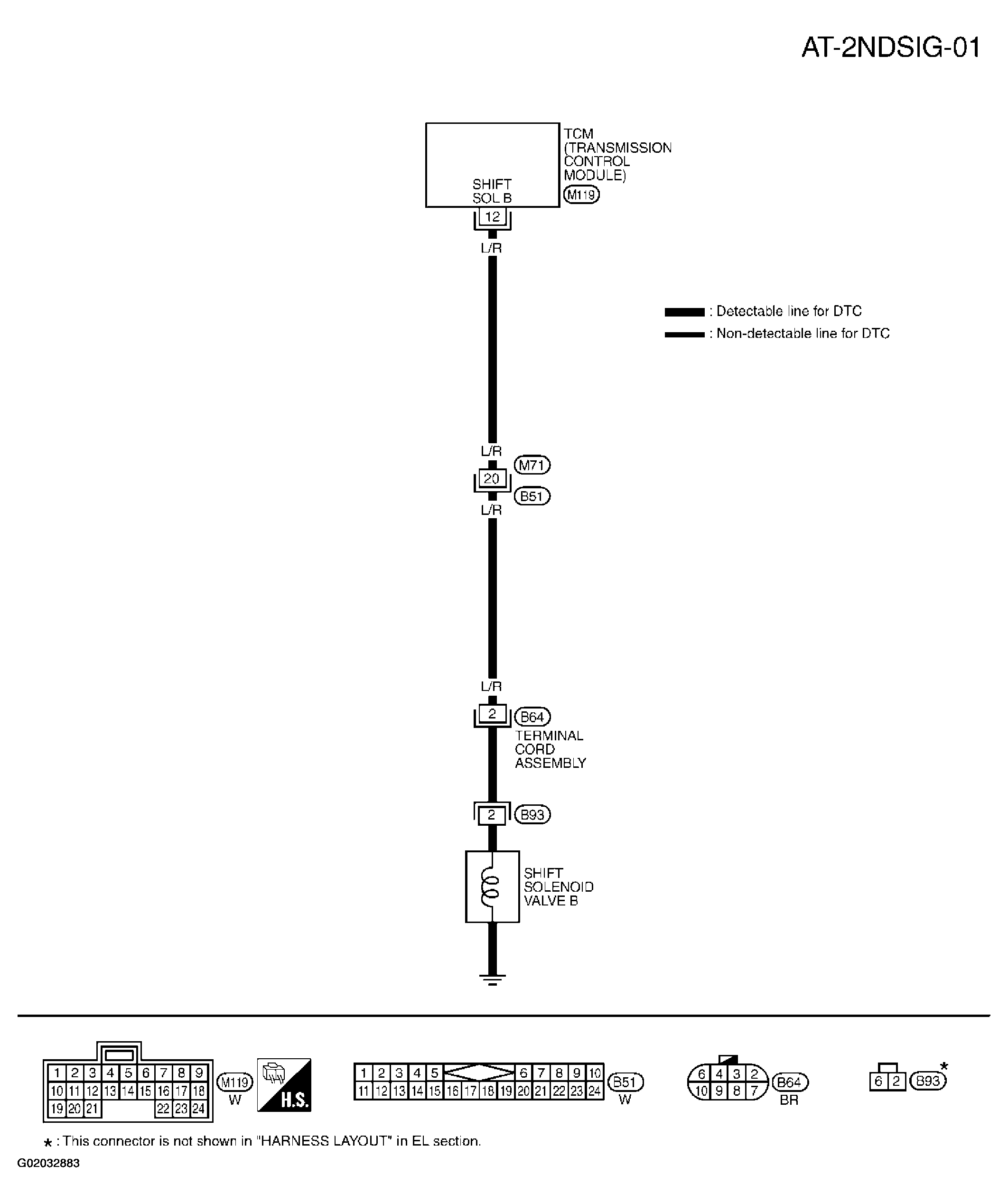

Fig 1: Wiring Diagram - At - 2ND
G02032883Courtesy of NISSAN MOTOR CO., U.S.A.
